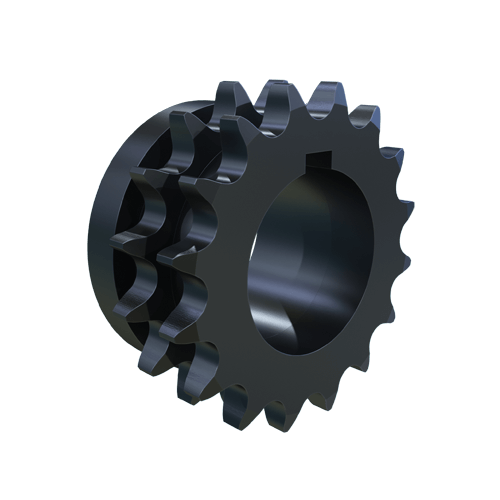

MARTIN SPROCKET 60P14H Roller Chain Sprocket, 60 Chain, Bushed MST, 14 Teeth, 3.371 Inch Pitch Dia., Steel
Item: AL4XCVModel: 60P14H
7 In Stock
3.371"
Ships within 2 days via
€127.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1/2" to 1 3/4" |
| Bore Type | Bushed |
| Bushing Part Number | P1 |
| Bushing Size | P1 |
| Bushing Type | Type P1 Split Taper |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Chain Size | 60 |
| Construction | Solid With Recess Groove |
| Construction Type | Solid With Recess Groove |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Dia. | 3" |
| Hub Outside Dia. | 3" |
| Hub Recessed For Chain | 1 |
| Individually Packaged | Yes |
| Key Way Size | 3/8" |
| Keyway Width | 3/8" , 3/8" W |
| Length Through Bore | 1 15/16" |
| Length Thru Bore | 1 5/16" |
| Material | Steel |
| Max. Bore Size | 1 3/4" |
| Min. Bore Size | 1/2" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 14 |
| Outside Dia. | 3.736" |
| Pitch | 3/4" |
| Pitch Dia. | 3.3705" , 3.371" |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1 1/2" |
| Storage Dimension Length | 4" |
| Storage Dimension Width | 4" |
| Type | MST P1 Bushed Solid Type 4 |
Shipping Info:
| Ship weight (kg) | 0.67 |
| Ship height (cm) | 4.93 |
| Ship length (cm) | 9.5 |
| Ship width (cm) | 9.5 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Length Through Bore | Hub Dia. | Bushing Type | Keyway Width | For Chain Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60Q48 | 11.4673" | 11.893" | - | 1 3/4" | - | - | 1/2" | 60 | €273.37 | |
 |

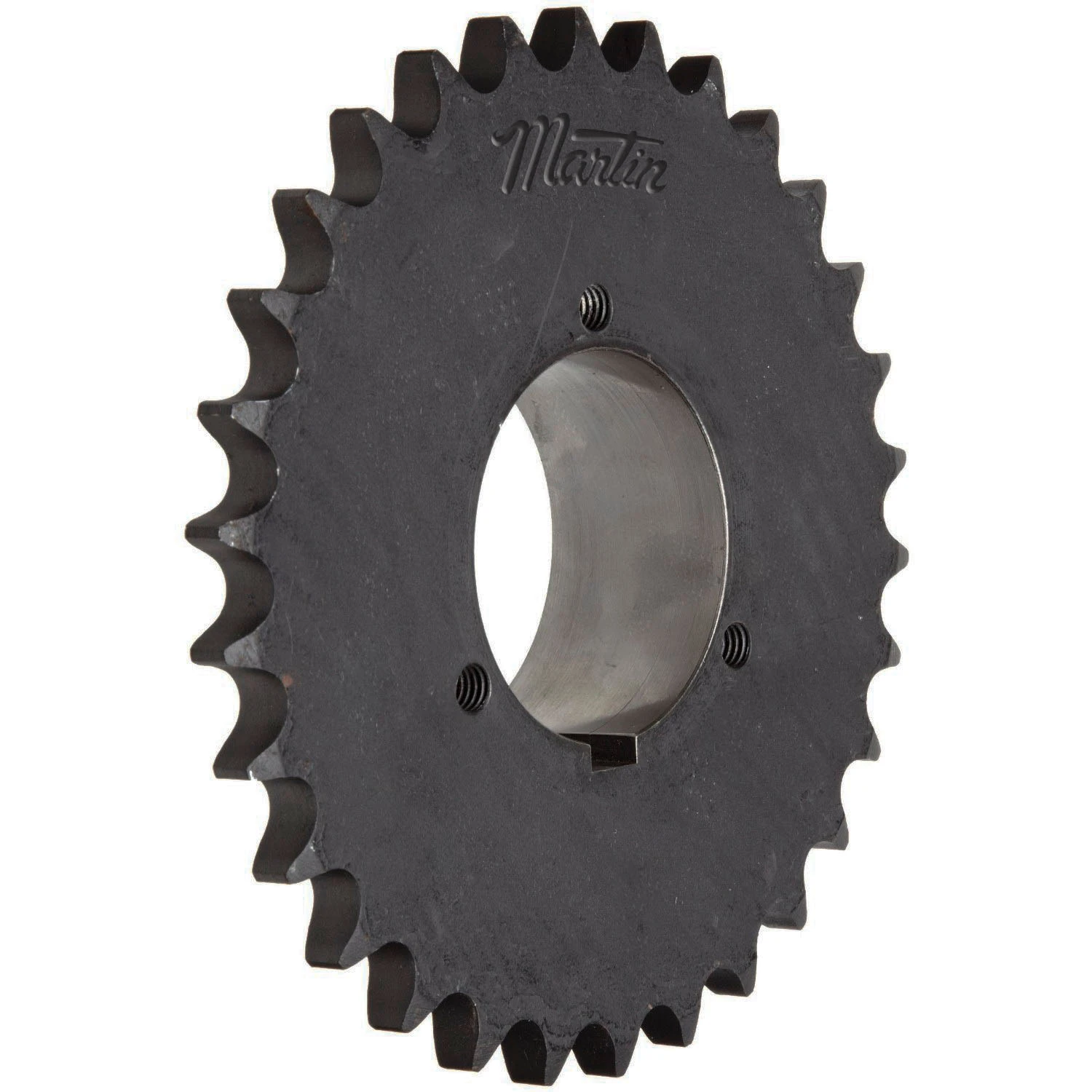

60Q31 | 7.4134" | 7.825" | 0.75" to 2.688" | 1 3/4" | 4 1/4" | MST Q1 | 1/2" | 60 | €246.51 | |
 |

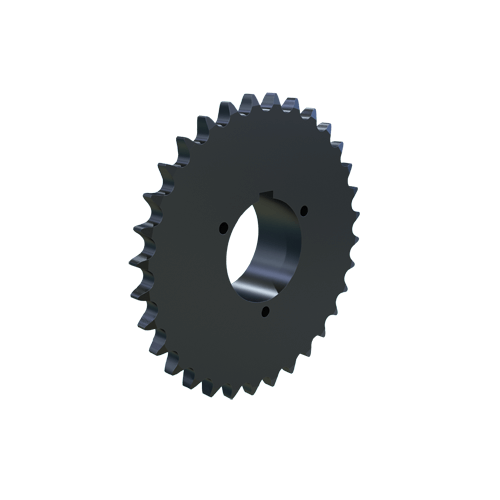

60Q32 | 7.652" | 8.065" | 0.75" to 2.688" | 2 1/2" | 4 1/4" | Type Q1 Split Taper | 1/2" | 60 | €249.51 | |
|
60Q33 | 7.8901" | 8.304" | 0.75" to 2.688" | 1 3/4" | 4 1/4" | MST Q1 | 1/2" | 60 | €250.80 | |
 |

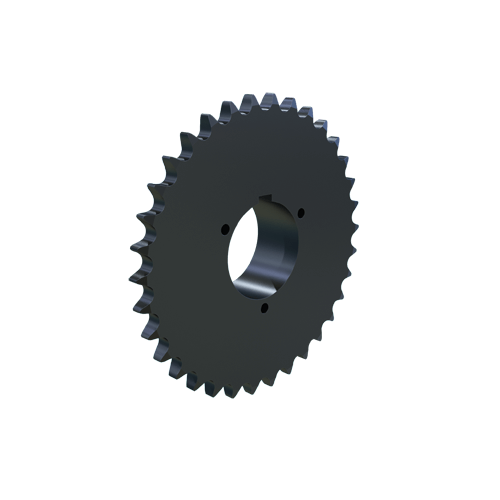

60Q34 | 8.129" | 8.544" | 0.75" to 2.688" | 2 1/2" | 4 1/4" | Type Q1 Split Taper | 1/2" | 60 | €252.08 | |
|
60Q35 | 8.3669" | 8.783" | 0.75" to 2.688" | 1 3/4" | 4 1/4" | MST Q1 | 1/2" | 60 | €254.66 | |
 |

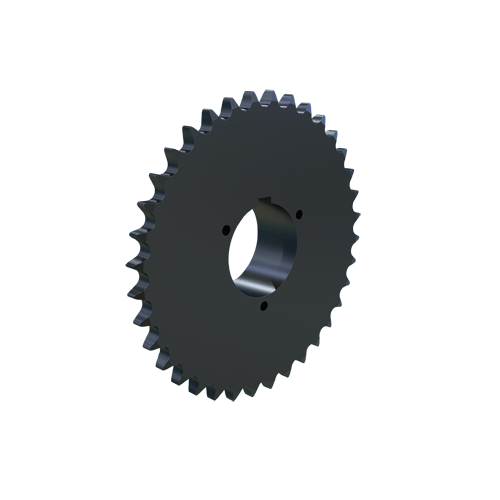

60Q36 | 8.605" | 9.023" | 0.75" to 2.688" | 2 1/2" | 4 1/4" | Type Q1 Split Taper | 1/2" | 60 | €257.08 |
