MARTIN SPROCKET Single MST Bushed Type Roller Chain Sprockets, 60 Chain Number
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1| Style | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Length Through Bore | Hub Dia. | Bushing Type | Keyway Width | For Chain Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 60H11H | 2.662" | 3.004" | 3/8" to 10 1/2" | 1 1/4" | 2 1/2" | Type H Split Taper | - | 60 | €106.10 | |
| B | 60H12H | 2.898" | 3.249" | 3/8" to 10 1/2" | 1 1/4" | 2 1/2" | Type H Split Taper | - | 60 | €111.62 | |
| C | 60P13H | 3.134" | 3.493" | 1/2" to 1 3/4" | 1 15/16" | 3" | Type P1 Split Taper | 3/8" | 60 | €114.87 | |
| D | 60H14H | 3.371" | 3.736" | 3/8" to 10 1/2" | 1 1/4" | 2 1/2" | Type H Split Taper | - | 60 | €127.15 | |
| E | 60P14H | 3.371" | 3.736" | 1/2" to 1 3/4" | 1 15/16" | 3" | Type P1 Split Taper | 3/8" | 60 | €127.15 | |
| F | 60P15H | 3.607" | 3.978" | 1/2" to 1 3/4" | 1 15/16" | 3" | Type P1 Split Taper | 3/8" | 60 | €125.40 | |
| G | 60P16H | 3.844" | 4.221" | 1/2" to 1 3/4" | 1 15/16" | 3" | Type P1 Split Taper | 3/8" | 60 | €144.31 | |
| H | 60H13H | 3.1339" | 3.493" | 3/8" to 1 1/2" | 7/8" | 2 1/2" | MST H | - | 60 | €114.87 | |
| I | 60H15H | 3.6073" | 3.978" | 3/8" to 1 1/2" | 7/8" | 2 1/2" | MST H | - | 60 | €125.40 | |
| I | 60H16H | 3.8444" | 4.221" | 3/8" to 1 1/2" | 7/8" | 2 1/2" | MST H | - | 60 | €144.31 | |
| I | 60H17H | 4.0816" | 4.462" | 3/8" to 1 1/2" | 7/8" | 2 1/2" | MST H | - | 60 | €156.17 | |
| J | 60P17H | 4.082" | 4.462" | 1/2" to 1 3/4" | 1 15/16" | 3" | Type P1 Split Taper | 3/8" | 60 | €156.17 | |
| K | 60P18H | 4.319" | 4.703" | 1/2" to 1 3/4" | 1 15/16" | 3" | Type P1 Split Taper | 3/8" | 60 | €169.34 | |
| L | 60P19H | 4.557" | 4.945" | 1/2" to 1 3/4" | 1 15/16" | 3" | Type P1 Split Taper | 3/8" | 60 | €176.07 | |
| M | 60P20H | 4.794" | 5.185" | 1/2" to 1 3/4" | 1 15/16" | 3" | Type P1 Split Taper | 3/8" | 60 | €180.10 | |
| N | 60Q20H | 4.794" | 5.185" | 0.75" to 2.688" | 2 1/2" | 4 1/8" | Type Q1 Split Taper | 1/2" | 60 | €180.10 | |
| I | 60H18H | 4.3191" | 4.703" | 3/8" to 1 1/2" | 7/8" | 2 1/2" | MST H | - | 60 | €169.34 | |
| I | 60H19H | 4.5567" | 4.945" | 3/8" to 1 1/2" | 7/8" | 2 1/2" | MST H | - | 60 | €176.07 | |
| I | 60H20H | 4.7943" | 5.185" | 3/8" to 1 1/2" | 7/8" | 2 1/2" | MST H | - | 60 | €180.10 | |
| O | 60P21H | 5.0321" | 5.426" | 1/2" to 1 3/4" | 1 15/16" | 3" | Type P1 Split Taper | 3/8" | 60 | €183.37 | |

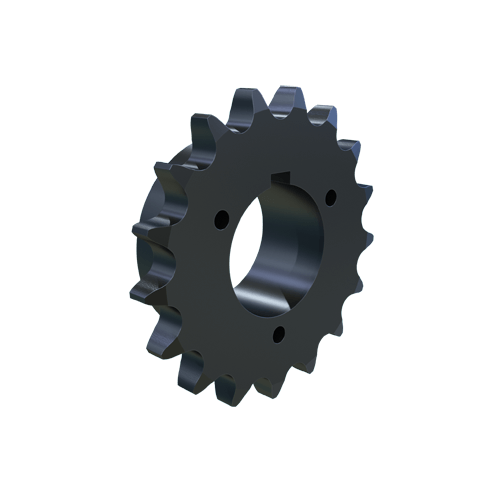

| P | 60Q21H | 5.0321" | 5.426" | 0.75" to 2.688" | 2 1/2" | 4 1/8" | Type Q1 Split Taper | 1/2" | 60 | €183.37 | |
| Q | 60Q22H | 5.27" | 5.666" | 0.75" to 2.688" | 1 3/4" | 4 1/8" | MST Q1 | 1/2" | 60 | €195.11 | |
| R | 60H22H | 5.27" | 5.666" | 3/8" to 10 1/2" | 1 1/4" | 2 1/2" | Type H Split Taper | - | 60 | €195.11 | |
| S | 60P22H | 5.27" | 5.666" | 1/2" to 1 3/4" | 1 15/16" | 3" | Type P1 Split Taper | 3/8" | 60 | €195.11 | |
| T | 60P23H | 5.508" | 5.907" | 1/2" to 1 3/4" | 1 15/16" | 3" | Type P1 Split Taper | 3/8" | 60 | €197.24 | |
| Q | 60Q23H | 5.508" | 5.907" | 0.75" to 2.688" | 1 3/4" | 4 1/8" | MST Q1 | 1/2" | 60 | €197.24 | |
| U | 60Q24H | 5.746" | 6.147" | 0.75" to 2.688" | 2 1/2" | 4 1/4" | Type Q1 Split Taper | 1/2" | 60 | €212.87 | |
| I | 60H24H | 5.746" | 6.147" | 3/8" to 1 1/2" | 7/8" | 2 3/4" | MST H | - | 60 | €212.87 | |
| Q | 60P24H | 5.746" | 6.147" | 1/2" to 1 3/4" | 1 5/16" | 3 1/4" | MST P1 | 3/8" | 60 | €212.87 | |
| V | 60Q25H | 5.984" | 6.387" | 0.75" to 2.688" | 2 1/2" | 4 1/4" | Type Q1 Split Taper | 1/2" | 60 | €217.73 | |
| Q | 60P25H | 5.984" | 6.387" | 1/2" to 1 3/4" | 1 5/16" | 3 1/4" | MST P1 | 3/8" | 60 | €217.73 | |
| W | 60Q27H | 6.46" | 6.867" | 0.75" to 2.688" | 2 1/2" | 4 1/4" | Type Q1 Split Taper | 1/2" | 60 | €238.91 | |
| X | 60P26H | 6.222" | 6.627" | 1/2" to 1 3/4" | 1 15/16" | 3 1/4" | Type P1 Split Taper | 3/8" | 60 | €227.19 | |

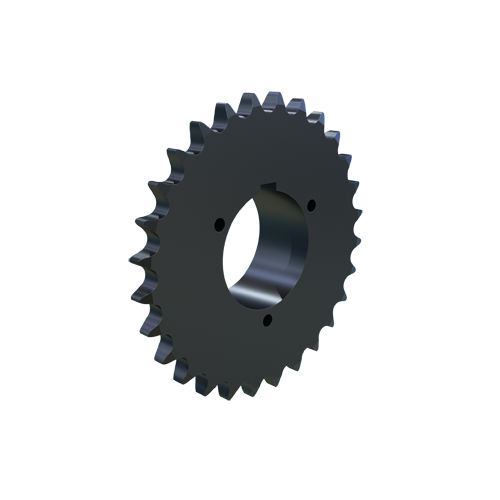

| Y | 60Q28H | 6.699" | 7.106" | 0.75" to 2.688" | 2 1/2" | 4 1/4" | Type Q1 Split Taper | 1/2" | 60 | €242.20 | |
| Z | 60Q29H | 6.937" | 7.346" | 0.75" to 2.688" | 2 1/2" | 4 1/4" | Type Q1 Split Taper | 1/2" | 60 | €243.07 | |
| Q | 60Q26H | 6.2222" | 6.627" | 0.75" to 2.688" | 1 3/4" | 4 1/4" | MST Q1 | 1/2" | 60 | €227.19 | |
| Q | 60P27H | 6.4603" | 6.867" | 1/2" to 1 3/4" | 1 5/16" | 3 1/4" | MST P1 | 3/8" | 60 | €238.91 | |
| A1 | 60P28H | 6.6986" | 7.106" | 1/2" to 1 3/4" | 1 5/16" | 3 1/4" | MST P1 | 3/8" | 60 | €242.20 | |
| B1 | 60Q30H | 7.175" | 7.586" | 0.75" to 2.688" | 2 1/2" | 4 1/4" | Type Q1 Split Taper | 1/2" | 60 | €243.79 | |
| C1 | 60Q32 | 7.652" | 8.065" | 0.75" to 2.688" | 2 1/2" | 4 1/4" | Type Q1 Split Taper | 1/2" | 60 | €249.51 | |
| Q | 60P30H | 7.1751" | 7.586" | 1/2" to 1 3/4" | 1 5/16" | 3 1/4" | MST P1 | 3/8" | 60 | €243.79 | |
| D1 | 60Q31 | 7.4134" | 7.825" | 0.75" to 2.688" | 1 3/4" | 4 1/4" | MST Q1 | 1/2" | 60 | €246.51 | |
| D1 | 60Q33 | 7.8901" | 8.304" | 0.75" to 2.688" | 1 3/4" | 4 1/4" | MST Q1 | 1/2" | 60 | €250.80 | |
| E1 | 60Q34 | 8.129" | 8.544" | 0.75" to 2.688" | 2 1/2" | 4 1/4" | Type Q1 Split Taper | 1/2" | 60 | €252.08 | |
| F1 | 60Q36 | 8.605" | 9.023" | 0.75" to 2.688" | 2 1/2" | 4 1/4" | Type Q1 Split Taper | 1/2" | 60 | €257.08 | |
| D1 | 60Q35 | 8.3669" | 8.783" | 0.75" to 2.688" | 1 3/4" | 4 1/4" | MST Q1 | 1/2" | 60 | €254.66 | |
| D1 | 60Q37 | 8.8437" | 9.262" | 0.75" to 2.688" | 1 3/4" | 4 1/4" | MST Q1 | 1/2" | 60 | €258.54 | |
| G1 | 60Q38 | 9.0822" | 9.501" | 0.75" to 2.688" | 2 1/2" | 4 1/4" | Type Q1 Split Taper | 1/2" | 60 | €259.97 | |
| H1 | 60Q39 | 9.3206" | 9.74" | 0.75" to 2.688" | 1 3/4" | 4 1/4" | MST Q1 | 1/2" | 60 | €261.23 | |
| I1 | 60Q40 | 9.5591" | 9.98" | - | 1 3/4" | - | - | 1/2" | 60 | €262.70 | |
| J1 | 60Q41 | 9.7976" | 10.219" | 0.75" to 2.688" | 1 3/4" | 4 1/4" | MST Q1 | 1/2" | 60 | €263.39 | |
| K1 | 60Q42 | 10.0361" | 10.458" | 0.75" to 2.688" | 1 3/4" | 4 1/4" | MST Q1 | 1/2" | 60 | €229.32 | |
| L1 | 60Q45 | 10.752" | 11.175" | 0.75" to 2.688" | 2 1/2" | 4 1/4" | Type Q1 Split Taper | 1/2" | 60 | €231.65 | |
| J1 | 60Q44 | 10.5132" | 10.936" | 0.75" to 2.688" | 1 3/4" | 4 1/4" | MST Q1 | 1/2" | 60 | €231.06 | |
| M1 | 60Q50 | 11.945" | 12.371" | 0.75" to 2.688" | 2 1/2" | 4 1/4" | Type Q1 Split Taper | 1/2" | 60 | €277.43 | |
| N1 | 60Q47 | 11.2288" | 11.654" | 0.75" to 2.688" | 1 3/4" | 4 1/4" | MST Q1 | 1/2" | 60 | €259.62 | |
| J1 | 60Q48 | 11.4673" | 11.893" | - | 1 3/4" | - | - | 1/2" | 60 | €273.37 | |
| J1 | 60Q54 | 12.8988" | 13.327" | 0.75" to 2.688" | 1 3/4" | 4 1/4" | MST Q1 | 1/2" | 60 | €279.38 | |
| J1 | 60Q56 | 13.376" | 13.805" | 0.75" to 2.688" | 1 3/4" | 4 1/4" | MST Q1 | 1/2" | 60 | €332.02 | |
| J1 | 60Q60 | 14.3305" | 14.761" | 0.75" to 2.688" | 1 3/4" | 4 1/4" | MST Q1 | 1/2" | 60 | €358.39 | |
| O1 | 60R70 | 16.7169" | 17.15" | 1 1/8" to 3 3/4" | 2" | 5 1/2" | MST R1 | 3/4" | 60 | €425.53 |
