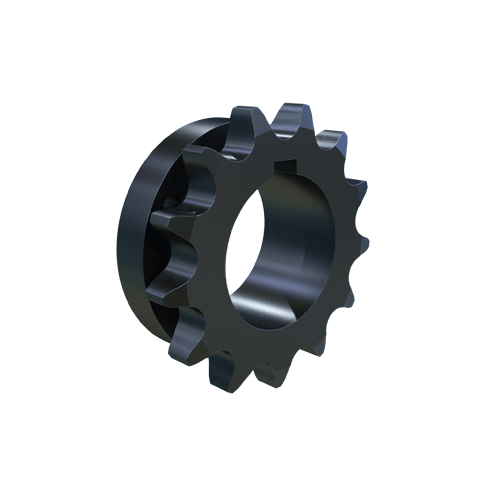

MARTIN SPROCKET 60P13H Roller Chain Sprocket, 60 Chain, Bushed MST, 13 Teeth, 3.134 Inch Pitch Dia., Steel
Item: AL4XCUModel: 60P13H
7 In Stock
Ships within 2 days via
€114.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | P1 |
| Bushing Size | P1 |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Solid With Recess Groove |
| Construction Type | Solid With Recess Groove |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Diameter | 3" |
| Hub Outside Dia. | 3" |
| Hub Recessed For Chain | 1 |
| Individually Packaged | No |
| Keyway Size | 3/8" |
| Keyway Width | 3/8" |
| Length Through Bore | 1 15/16" |
| Length Thru Bore | 1 5/16" |
| Material | Steel |
| Max. Bore Size | 1 3/4" |
| Min. Bore Size | 1/2" |
| No. Of Teeth | 13 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 13 |
| Outside Dia. | 3.493" |
| Pitch | 3/4" |
| Pitch Dia. | 3.1339" |
| Pitch Diameter | 3.134" |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1 8/25" |
| Storage Dimension Length | 3.493" |
| Storage Dimension Width | 3.493" |
Shipping Info:
| Ship weight (kg) | 0.57 |
| Ship height (cm) | 4.93 |
| Ship length (cm) | 8.86 |
| Ship width (cm) | 8.86 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Bushing Type | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60Q48 | 48 | 11.4673" | 11.893" | 1 3/4" | - | 60 | 3/4" | Bushed | €273.37 | |
 |
60Q31 | 31 | 7.4134" | 7.825" | 1 3/4" | MST Q1 | 60 | 3/4" | Bushed | €246.51 | |
 |
60Q32 | 32 | 7.6517" | 8.065" | 2 1/2" | Type Q1 Split Taper | 60 | 3/4" | Bushed | €249.51 | |
|
60Q33 | 33 | 7.8901" | 8.304" | 1 3/4" | MST Q1 | 60 | 3/4" | Bushed | €250.80 | |
 |
60Q34 | 34 | 8.1285" | 8.544" | 2 1/2" | Type Q1 Split Taper | 60 | 3/4" | Bushed | €252.08 | |
|
60Q35 | 35 | 8.3669" | 8.783" | 1 3/4" | MST Q1 | 60 | 3/4" | Bushed | €254.66 | |
 |
60Q36 | 36 | 8.6053" | 9.023" | 2 1/2" | Type Q1 Split Taper | 60 | 3/4" | Bushed | €257.08 |
