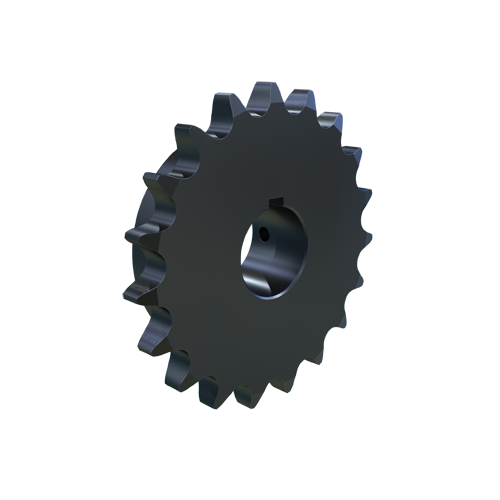

MARTIN SPROCKET 60BS19 1 3/8 Roller Chain Sprocket, Bore To Size, 1.375 Inch Bore, 4.945 Inch Outside Dia. Steel
Item: AJ8XMCModel: 60BS19 1 3/8
7 In Stock
4.945"
1.375"
Ships within 2 days via
€106.75 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 3/8" |
| Bore Size | 1 3/8" |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Chain Size | #60 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 3/8" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | B |
| Hub Dia. | 3 1/2" |
| Hub Outside Dia. | 3 1/2" |
| Individually Packaged | Yes |
| Key Way Size | 5/16" x 5/32" |
| Length Through Bore | 1 1/4" |
| Length Thru Bore | 1 1/4" |
| Material | Steel |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 19 |
| Outside Dia. | 4.945" |
| Pitch | 3/4" |
| Pitch Dia. | 4.5567" , 4.557" |
| Screw Size | 5/16"-18 x 5/16" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1.31" |
| Storage Dimension Length | 5 1/4" |
| Storage Dimension Width | 5 1/4" |
| Type | Bored to Size Type BS |
Shipping Info:
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 12.57 |
| Ship width (cm) | 12.57 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Hub Dia. | Length Through Bore | Set Screw Size | Bore Size | For Chain Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60BS9 3/4 | 3/4" | 2.1929" | 2.511" | 1.563" | 1 1/4" | 1/4"-20 | 3/4" | 60 | €43.29 | |
 |
60BS9 1 | 1" | 2.1929" | 2.511" | 1.563" | 1 1/4" | 5/16"-18 | 1" | 60 | €43.29 | |
 |
60BS10 3/4 | 3/4" | 2.427" | 2.758" | 1.938" | 1 1/4" | 1/4"-20 | 3/4" | 60 | €45.21 | |
 |
60BS10 7/8 | 7/8" | 2.427" | 2.758" | 1.938" | 1 1/4" | 1/4"-20 | 7/8" | 60 | €45.21 | |
 |
60BS10 1 | 1" | 2.427" | 2.758" | 1.938" | 1 1/4" | 5/16"-18 | 1" | 60 | €45.21 | |
 |
60BS10 1 1/8 | 1 1/8" | 2.427" | 2.758" | 1.938" | 1 1/4" | 5/16"-18 | - | 60 | €45.21 | |
 |
60BS10 1 3/16 | 1 3/16" | 2.427" | 2.758" | 1.938" | 1 1/4" | 5/16"-18 | - | 60 | €45.21 |
