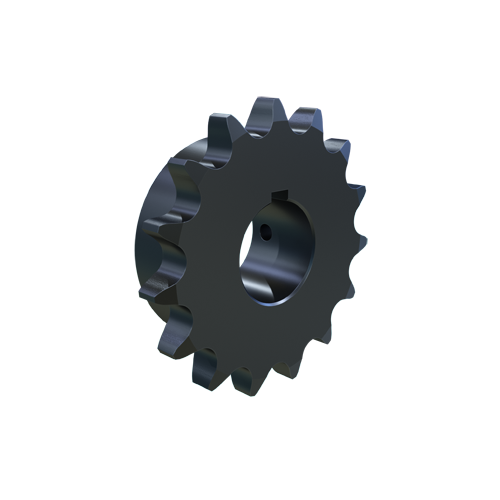

MARTIN SPROCKET 60BS15HT 1 3/8 Roller Chain Sprocket, 1.375 Inch Bore, 3.978 Inch Outside Dia. Steel, Hardened
Item: AJ9MHPModel: 60BS15HT 1 3/8
7 In Stock
Ships within 2 days via
€112.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 1 3/8" |
| Bore Size | 1 3/8" |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Chain Size | #60 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 3/8" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Diameter | 2 7/8" |
| Hub Outside Dia. | 2 7/8" |
| Individually Packaged | Yes |
| Keyway Size | 5/16" x 5/32" |
| Length Through Bore | 1 1/4" |
| Length Thru Bore | 1 1/4" |
| Material | Steel |
| Max. Bore Size | 1 7/8" |
| Min. Bore Size | 1 3/8" |
| No. Of Teeth | 15 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 15 |
| Outside Dia. | 3.978" |
| Pitch | 3/4" |
| Pitch Dia. | 3.6073" |
| Pitch Diameter | 3.607" |
| Screw Size | 0.313"-18 x 0.313" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1.31" |
| Storage Dimension Length | 4 5/16" |
| Storage Dimension Width | 4 5/16" |
| Type | Bored to Size Type BS |
Shipping Info:
| Ship weight (kg) | 0.83 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 10.11 |
| Ship width (cm) | 10.11 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | Bore Size | For Chain Number | For Chain Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60BS9HT 3/4 | 9 | 2.1929" | 2.511" | 1.562" | 1/4"-20 | 3/4" | 60 | 3/4" | €69.63 | |
 |
60BS10HT 3/4 | 10 | 2.4271" | 2.758" | 1 1/4" | 1/4"-20 | 3/4" | 60 | 3/4" | €73.85 | |
 |
60BS11HT 3/4 | 11 | 2.6621" | 3.004" | 1 1/4" | 1/4"-20 | 3/4" | 60 | 3/4" | €79.79 | |
|
60BS12HT 3/4 | 12 | 2.8978" | 3.249" | 1 1/4" | 1/4"-20 | 3/4" | 60 | 3/4" | €87.69 | |
|
60BS13HT 3/4 | 13 | 3.1339" | 3.493" | 1 1/4" | 1/4"-20 | 3/4" | 60 | 3/4" | €91.18 | |
 |
60BS14HT 3/4 | 14 | 3.3705" | 3.736" | 1 1/4" | 1/4"-20 | 3/4" | 60 | 3/4" | €100.53 | |
 |
60BS15HT 3/4 | 15 | 3.6073" | 3.978" | 1 1/4" | 1/4"-20 | 3/4" | 60 | 3/4" | €112.94 |
