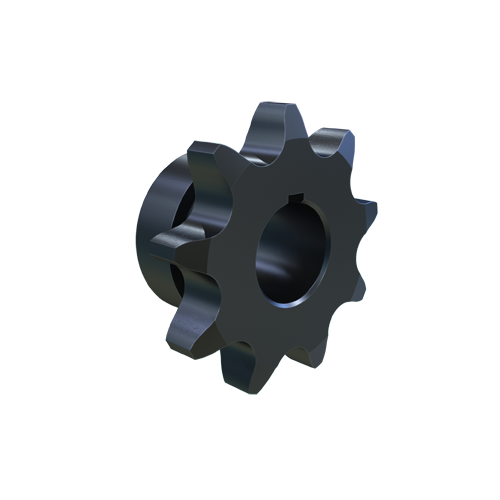

MARTIN SPROCKET 60BS9HT 7/8 Roller Chain Sprocket, 0.875 Inch Bore, 2.511 Inch Outside Dia. Steel, Hardened
Item: AJ9MGYModel: 60BS9HT 7/8
7 In Stock
Ships within 2 days via
€69.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 7/8" |
| Bore Size | 7/8" |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Chain Size | #60 |
| Construction | Solid With Recess Groove |
| Construction Type | Solid With Recess Groove |
| Finished Bore Size | 7/8" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Dia. | 1 9/16" |
| Hub Outside Dia. | 1 9/16" |
| Hub Recessed For Chain | 1 |
| Individually Packaged | Yes |
| Key Way Size | 3/16" x 3/32" |
| Length Through Bore | 1.562" , 25/32" |
| Material | Steel |
| Max. Bore Size | 1" |
| Min. Bore Size | 7/8" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 9 |
| Outside Dia. | 2.511" |
| Pitch | 3/4" |
| Pitch Dia. | 2.1929" |
| Screw Size | 1/4"-20 x 1/4" |
| Set Screw Location | (1) At 90° And (1) At 180° F/Keyway |
| Set Screw Size | 1/4"-20 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1 14/25" |
| Storage Dimension Length | 4 3/4" |
| Storage Dimension Width | 4 3/4" |
| Type | Bored to Size Type BS |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 3.96 |
| Ship length (cm) | 6.38 |
| Ship width (cm) | 6.38 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Storage Dimension Width | Storage Dimension Height | Hub Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60BS9HT 3/4 | 2.1929" | 9 | 1.562" | 1.563" | 3/4" | 5 1/4" | 1.31" | 1 9/16" | €69.63 | |
 |
60BS9HT 1 | 2.1929" | 9 | 1.562" | 1.563" | 1" | 5 1/4" | 1.31" | 1 9/16" | €69.63 | |
 |
60BS10HT 3/4 | 2.4271" | 10 | 1 1/4" | 1 15/16" | 3/4" | 3 1/8" | 1.31" | 1 15/16" | €73.85 | |
 |
60BS10HT 7/8 | 2.427" | 10 | 1 1/4" | 1.938" | 7/8" | 3 1/8" | 1.31" | 1 15/16" | €73.85 | |
 |
60BS10HT 1 | 2.427" | 10 | 1 1/4" | 1.938" | 1" | 3 1/8" | 1.31" | 1 15/16" | €73.85 | |
 |
60BS11HT 1 | 2.662" | 11 | 1 1/4" | 2.063" | 1" | 3 1/8" | 1.31" | 2 1/16" | €79.79 | |
 |
60BS11HT 1 1/4 | 2.662" | 11 | 1 1/4" | 2.063" | 1 1/4" | 3 1/8" | 1.31" | 2 1/16" | €79.79 |
