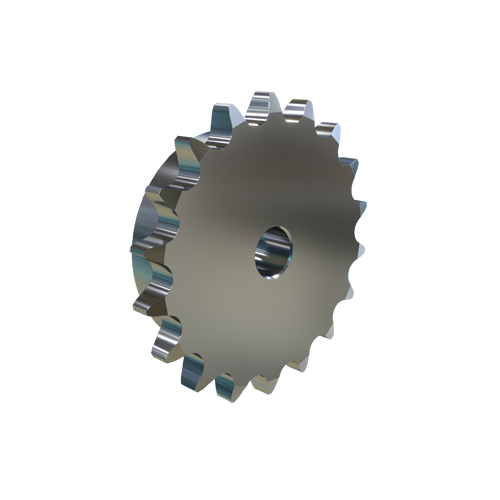

MARTIN SPROCKET 60B18SS Roller Chain Sprocket, 60 Chain, 18 Teeth, 4.319 Inch Pitch Dia., 4.703 Inch O.D., SS
Item: BA6PTEModel: 60B18SS
7 In Stock
Ships within 2 days via
€518.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 3/4" to 2 3/8" |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Chain Size | #60 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 3/4" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Grade | Grade 303, Grade304 |
| Hub Configuration | B |
| Hub Dia. | 3 1/2" |
| Hub Outside Dia. | 3 1/2" |
| Individually Packaged | No |
| Length Through Bore | 1 1/4" |
| Length Thru Bore | 1 1/4" |
| Material | Stainless Steel |
| Max. Bore Size | 2 3/8" |
| Min. Bore Size | 3/4" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 18 |
| Outside Dia. | 4.703" |
| Pitch | 3/4" |
| Pitch Dia. | 4.319" |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1 1/4" |
| Storage Dimension Length | 4.7" |
| Storage Dimension Width | 4.7" |
| Type | Type B Single Strand Solid Reboreable |
Shipping Info:
| Ship weight (kg) | 1.7 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 11.94 |
| Ship width (cm) | 11.94 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Pitch Dia. | No. Of Teeth | Length Through Bore | Storage Dimension Length | Storage Dimension Width | Single Strand Tooth Thickness | Hub Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60B8 | Steel | 1.9598" | 8 | 1 1/4" | 2 7/16" | 2 7/16" | 0.459" | 1.4688" | €37.25 | |
 |
60B9 | Steel | 2.1929" | 9 | 1 1/4" | 3 1/8" | 3 1/8" | 0.459" | 1 9/16" | €37.84 | |
 |
60B10 | Steel | 2.427" | 10 | 1 1/4" | 3 1/8" | 3 1/8" | 0.459" | 1 15/16" | €40.84 | |
 |
60B11 | Steel | 2.662" | 11 | 1 1/4" | 3 1/8" | 3 1/8" | 0.459" | 2 1/16" | €43.29 | |
 |
60B12 | Steel | 2.898" | 12 | 1 1/4" | 3 9/16" | 3 9/16" | 0.459" | 2 3/8" | €46.31 | |
 |
60B13 | Steel | 3.134" | 13 | 1 1/4" | 3 9/16" | 3 9/16" | 0.459" | 2.3438" | €50.42 | |
 |
60B14 | Steel | 3.371" | 14 | 1 1/4" | 4 5/16" | 4 5/16" | 0.459" | 2 9/16" | €54.27 |
