MARTIN SPROCKET Single Stock Bore B Type Roller Chain Sprockets, 60 Chain Number
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1
T1
U1
V1
W1| Style | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Length Through Bore | Hub Dia. | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 60B8 | 1.9598" | 2.261" | 5/8" | 1 1/4" | 1.469" | 60 | 3/4" | Finished Bore | €37.25 | |
| B | 60B10 | 2.427" | 2.758" | 3/4" | 1 1/4" | 1.938" | 60 | 3/4" | Finished Bore | €40.84 | |
| C | 60B11 | 2.662" | 3.004" | 3/4" | 1 1/4" | 2.063" | 60 | 3/4" | Finished Bore | €43.29 | |

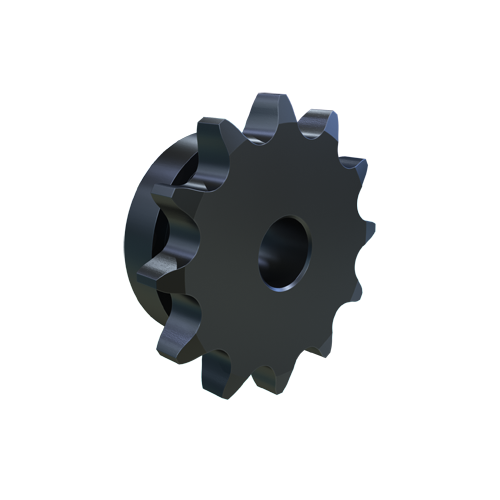

| D | 60B12 | 2.898" | 3.249" | 3/4" | 1 1/4" | 2 3/8" | 60 | 3/4" | Finished Bore | €46.31 | |
| E | 60B12SS | 2.898" | 3.249" | 3/4" | 1 1/4" | 2 3/8" | 60 | 3/4" | Finished Bore | €272.96 | |
| F | 60B9 | 2.1929" | 2.511" | 3/4" | 1 1/4" | 1.563" | 60 | 3/4" | Finished Bore | €37.84 | |
| G | 60B13SS | 3.134" | 3.493" | 3/4" | 1 1/4" | 2.344" | 60 | 3/4" | Finished Bore | €299.57 | |

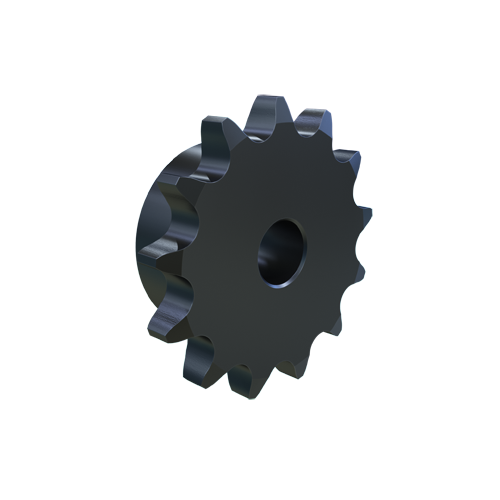

| H | 60B13 | 3.134" | 3.493" | 3/4" | 1 1/4" | 2.344" | 60 | 3/4" | Finished Bore | €50.42 | |
| I | 60B14 | 3.371" | 3.736" | 3/4" | 1 1/4" | 2.563" | 60 | 3/4" | Finished Bore | €54.27 | |

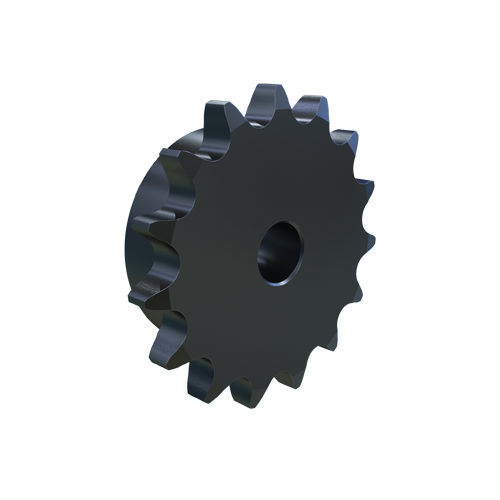

| J | 60B15 | 3.607" | 3.978" | 3/4" | 1 1/4" | 2 7/8" | 60 | 3/4" | Finished Bore | €62.77 | |

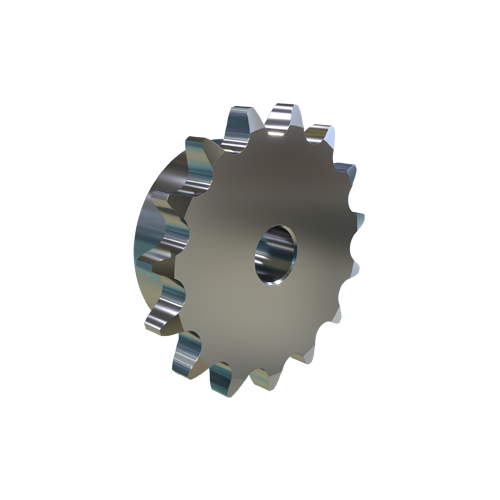

| K | 60B15SS | 3.608" | 3.978" | 3/4" | 1 1/4" | 2 7/8" | 60 | 3/4" | Finished Bore | €397.14 | |
| L | 60B16 | 3.844" | 4.221" | 3/4" | 1 1/4" | 3.062" | 60 | 3/4" | Finished Bore | €70.71 | |
| M | 60B16SS | 3.845" | 4.22" | 3/4" to 2" | 1 1/4" | 3 1/16" | 60 | 3/4" | Finished Bore | €430.17 | |
| N | 60B17SS | 4.082" | 4.462" | 3/4" to 2 1/4" | 1 1/4" | 3 1/4" | 60 | 3/4" | Finished Bore | €475.76 | |
| O | 60B17 | 4.082" | 4.462" | 3/4" | 1 1/4" | 3 1/4" | 60 | 3/4" | Finished Bore | €74.28 | |
| P | 60B18SS | 4.319" | 4.703" | 3/4" to 2 3/8" | 1 1/4" | 3 1/2" | 60 | 3/4" | Finished Bore | €518.25 | |
| Q | 60B18 | 4.319" | 4.703" | 3/4" | 1 1/4" | 3 1/2" | 60 | 3/4" | Finished Bore | €79.20 | |
| R | 60B19 | 4.557" | 4.945" | 3/4" | 1 1/4" | 3 1/2" | 60 | 3/4" | Finished Bore | €90.17 | |
| N | 60B19SS | 4.557" | 4.945" | 3/4" to 2 3/8" | 1 1/4" | 3 1/2" | 60 | 3/4" | Finished Bore | €564.08 | |
| S | 60B20 | 4.794" | 5.185" | 3/4" | 1 1/4" | 3 7/8" | 60 | 3/4" | Finished Bore | €91.50 | |
| N | 60B20SS | 4.794" | 5.186" | 3/4" to 2 5/8" | 1 1/4" | 3 7/8" | 60 | 3/4" | Finished Bore | €607.37 | |
| T | 60B21 | 5.0321" | 5.426" | 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €94.33 | |
| N | 60B21SS | 5.033" | 5.426" | 3/4" to 2 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €638.08 | |
| U | 60B22SS | 5.27" | 5.666" | 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €709.26 | |
| V | 60B22 | 5.27" | 5.666" | 3/4" | 1 1/4" | 4" | 60 | - | Finished Bore | €98.23 | |
| N | 60B23SS | 5.508" | 5.907" | 3/4" to 2 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €786.08 | |
| W | 60B23 | 5.508" | 5.907" | 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €101.23 | |
| X | 60B24 | 5.746" | 6.147" | 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €109.52 | |
| Y | 60B24SS | 5.746" | 6.147" | 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €804.56 | |
| Z | 60B25 | 5.984" | 6.387" | 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €110.45 | |
| N | 60B25SS | 5.984" | 6.387" | 3/4" to 2 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €820.99 | |
| A1 | 60B27 | 6.46" | 6.867" | 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €120.58 | |
| B1 | 60B26 | 6.222" | 6.627" | 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €114.23 | |
| C1 | 60B26SS | 6.222" | 6.627" | 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €860.62 | |
| N | 60B28SS | 6.698" | 7.106" | 3/4" to 2 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €903.47 | |
| D1 | 60B28 | 6.699" | 7.106" | 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €121.54 | |
| E1 | 60B29 | 6.937" | 7.346" | 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €125.30 | |
| F1 | 60B33 | 7.89" | 8.304" | 1" to 2 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €124.79 | |
| G1 | 60B30 | 7.175" | 7.586" | 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €126.23 | |
| N | 60B30SS | 7.175" | 7.586" | 3/4" to 2 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €938.20 | |
| H1 | 60B32 | 7.652" | 8.065" | 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €122.36 | |
| I1 | 60B31 | 7.4134" | 7.825" | - | 1 1/4" | - | 60 | 3/4" | Finished Bore | €121.90 | |
| J1 | 60B34 | 8.129" | 8.544" | 1" to 2 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €125.24 | |
| K1 | 60B35SS | 8.367" | 8.783" | 1" to 2 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €1,016.42 | |
| L1 | 60B35 | 8.367" | 8.783" | 1" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €126.13 | |
| M1 | 60B36 | 8.605" | 9.023" | 1" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €131.22 | |
| N1 | 60B37 | 8.8437" | 9.262" | 1" to 2 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €142.98 | |
| N | 60B40SS | 9 14/25" | 9.98" | 1" to 2 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €1,064.80 | |
| O1 | 60B38 | 9.0822" | 9.501" | 1" to 2 3/4" | 1 1/4" | 4 1/4" | 60 | 3/4" | Finished Bore | €144.07 | |
| P1 | 60B39 | 9.321" | 9.74" | 1" | 1 1/4" | 4 1/4" | 60 | 3/4" | Finished Bore | €123.88 | |
| Q1 | 60B40 | 9.559" | 9.98" | 1" | 1 1/4" | 4 1/4" | 60 | 3/4" | Finished Bore | €124.64 | |
| R1 | 60B41 | 9.7976" | 10.219" | 1" to 2 3/4" | 1 1/4" | 4 1/4" | 60 | 3/4" | Finished Bore | €137.37 | |
| S1 | 60B42 | 10.036" | 10.458" | 1" | 1 1/4" | 4 1/4" | 60 | 3/4" | Finished Bore | €137.75 | |
| N | 60B45SS | 10.752" | 11.176" | 1" to 2 3/4" | 1 1/4" | 4" | 60 | 3/4" | Finished Bore | €1,156.63 | |
| T1 | 60B45 | 10.752" | 11.175" | 15/16" | 1 1/4" | 4 1/4" | 60 | 3/4" | Finished Bore | €142.49 | |
| R1 | 60B43 | 10.2746" | 10.697" | 1" to 2 3/4" | 1 1/4" | 4 1/4" | 60 | 3/4" | Finished Bore | €139.65 | |
| R1 | 60B44 | 10.5132" | 10.936" | 15/16" to 2 3/4" | 1 1/4" | 4 1/4" | 60 | 3/4" | Finished Bore | €141.56 | |
| R1 | 60B46 | 10.9902" | 11.415" | 15/16" to 2 3/4" | 1 1/4" | 4 1/4" | 60 | 3/4" | Finished Bore | €147.44 | |
| U1 | 60B48 | 11.467" | 11.893" | 0.938" to 2.75" | 1 1/4" | 4 1/4" | 60 | 3/4" | Finished Bore | €152.56 | |
| V1 | 60B50 | 11.945" | 12.371" | 15/16" | 1 1/4" | 4 1/4" | 60 | 3/4" | Finished Bore | €170.78 | |
| W1 | 60B47 | 11.2288" | 11.654" | 15/16" to 2 3/4" | 1 1/4" | 4 1/4" | 60 | 3/4" | Finished Bore | €151.81 |
