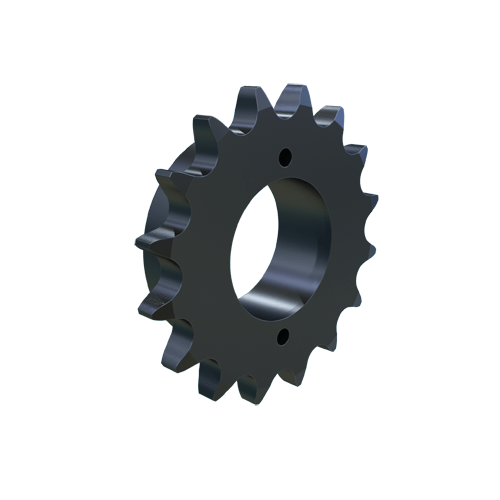

MARTIN SPROCKET 50H16H Roller Chain Sprocket, 50 Chain, Bushed MST, 16 Teeth, 3.204 Inch Pitch Dia., Steel
Item: AL4XBJModel: 50H16H
7 In Stock
3.204"
Ships within 2 days via
€107.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | H |
| Bushing Size | H |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Diameter | 2 1/2" |
| Hub Outside Dia. | 2 1/2" |
| Individually Packaged | Yes |
| Length Through Bore | 1 1/4" |
| Length Thru Bore | 7/8" |
| Material | Steel |
| Max. Bore Size | 1 1/2" |
| Min. Bore Size | 3/8" |
| No. Of Teeth | 16 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 16 |
| Outside Dia. | 3.517" |
| Pitch | 5/8" |
| Pitch Dia. | 3.2036" |
| Pitch Diameter | 3.204" |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 1.06" |
| Storage Dimension Length | 3 5/8" |
| Storage Dimension Width | 3 5/8" |
Shipping Info:
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 8.94 |
| Ship width (cm) | 8.94 |
| Country of Origin | US |
Product Variants
| Model | Number Of Teeth | Outside Dia. | Pitch Dia. | Length Through Bore | Bushing Type | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 50P31 | 31 | 6.521" | 6.1778" | 1 5/16" | MST P1 | 50 | 5/8" | Bushed | €210.13 | |
| 50Q32 | 32 | 6.721" | 6.3764" | 1 3/4" | MST Q1 | 50 | 5/8" | Bushed | €212.29 | |
| 50P33 | 33 | 6 23/25" | 6.5751" | 1 5/16" | MST P1 | 50 | 5/8" | Bushed | €214.45 | |
| 50P34 | 34 | 7.12" | 6.7737" | 1 5/16" | MST P1 | 50 | 5/8" | Bushed | €217.45 | |
| 50P35 | 35 | 7.319" | 6.9724" | 1 5/16" | MST P1 | 50 | 5/8" | Bushed | €220.18 | |
| 50Q35 | 35 | 7.319" | 6.9724" | 1 3/4" | MST Q1 | 50 | 5/8" | Bushed | €220.18 | |
| 50P36 | 36 | 7.519" | 7.1711" | 1 5/16" | MST P1 | 50 | 5/8" | Bushed | €223.05 |
