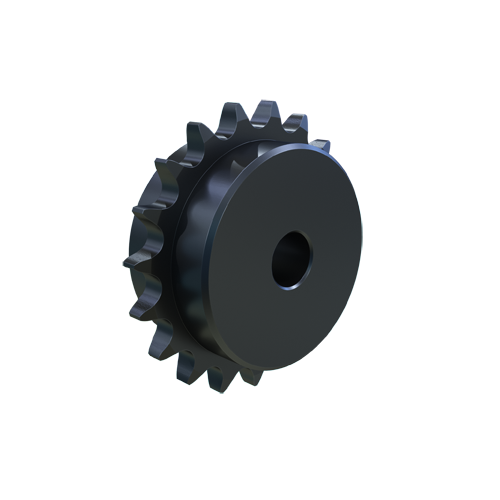

MARTIN SPROCKET 50C19 Sprocket, Stock Bore, 50 Chain, 19 Teeth, 3.797 Inch Pitch Dia., 4.120 Inch O.D., Steel
Item: AJ9LXQModel: 50C19
7 In Stock
Ships within 2 days via
€157.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 3/4" |
| Bore Type | Finished Bore |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 3/4" |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | C |
| Hub Outside Dia. | 3 5/16" |
| Individually Packaged | No |
| Length Through Bore | 1 5/8" |
| Length Thru Bore | 1 5/8" |
| Material | Steel |
| Max. Bore Size | 2" |
| Min. Bore Size | 3/4" |
| No. Of Teeth | 19 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 19 |
| Outside Dia. | 4.12" |
| Pitch | 5/8" |
| Pitch Dia. | 3.7972" |
| Pitch Diameter | 3.797" |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 1 5/8" |
| Storage Dimension Length | 4 3/25" |
| Storage Dimension Width | 4 3/25" |
Shipping Info:
| Ship weight (kg) | 1.57 |
| Ship height (cm) | 4.14 |
| Ship length (cm) | 10.46 |
| Ship width (cm) | 10.46 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | For Chain Number | For Chain Pitch | Bore Type | Length Through Bore | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

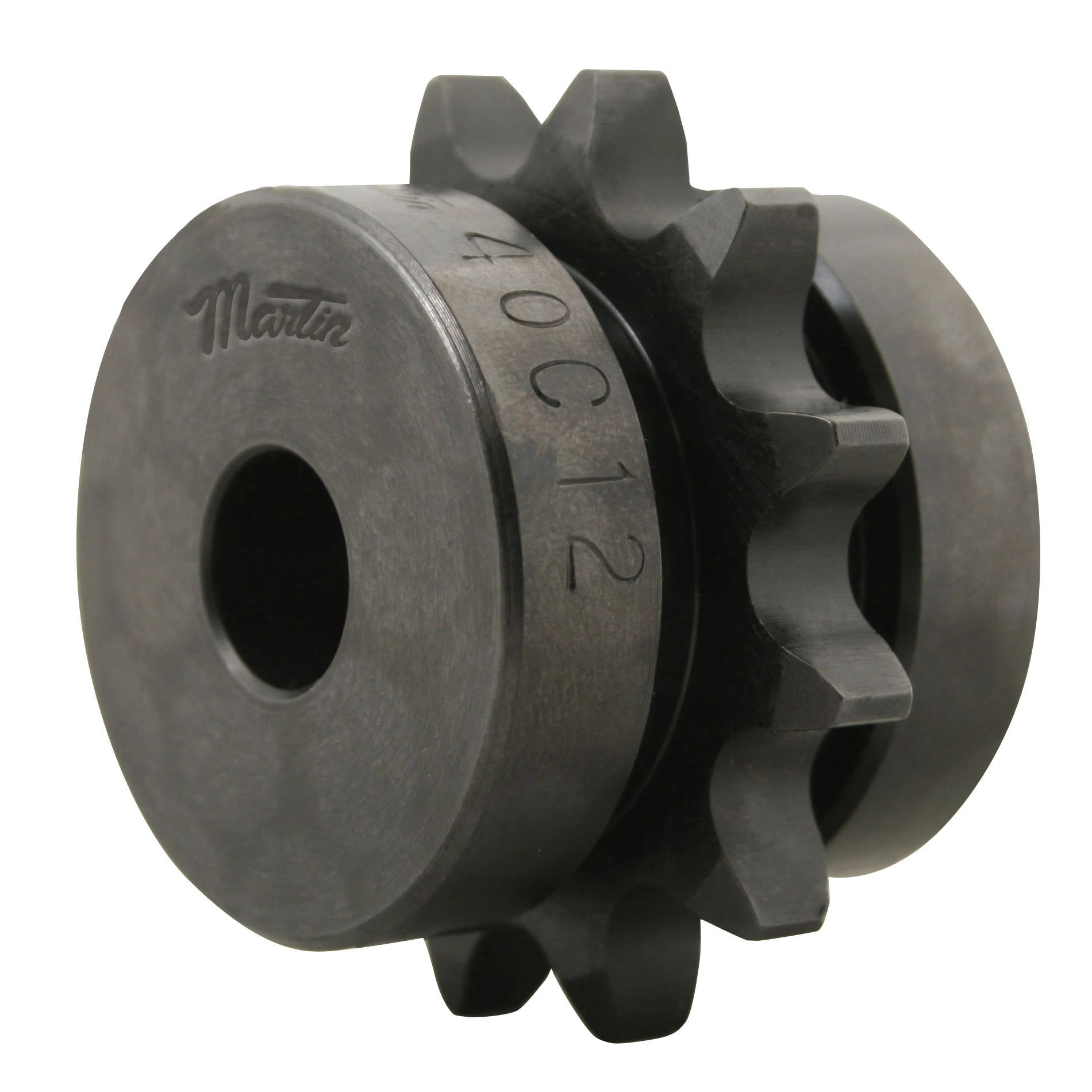

50C18 | 18 | 3.5992" | 3 23/25" | 50 | 5/8" | Finished Bore | 1 5/8" | 5/8" | €146.29 | |
 |

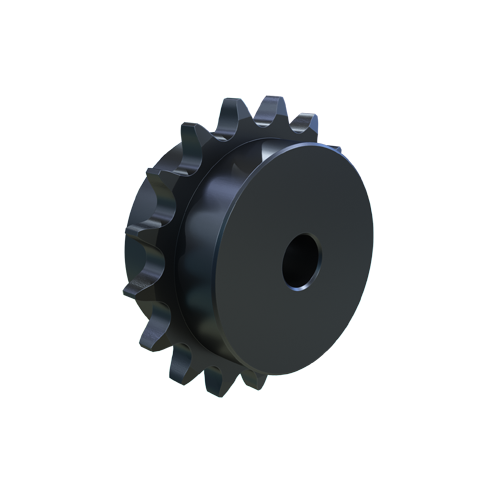

50C17 | 17 | 3.4014" | 3.718" | 50 | 5/8" | Finished Bore | 1 5/8" | 5/8" | €138.30 | |
 |

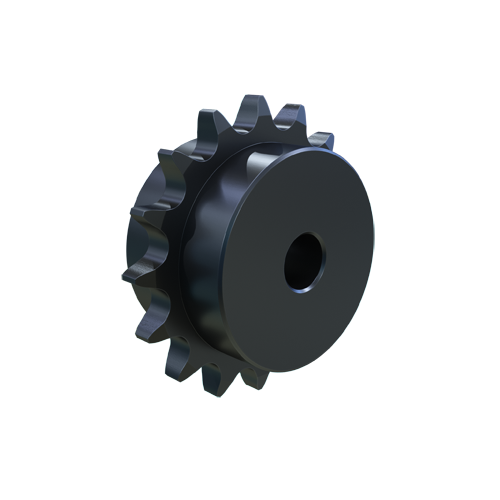

50C16 | 16 | 3.2036" | 3.517" | 50 | 5/8" | Finished Bore | 1 5/8" | 5/8" | €132.56 | |
 |

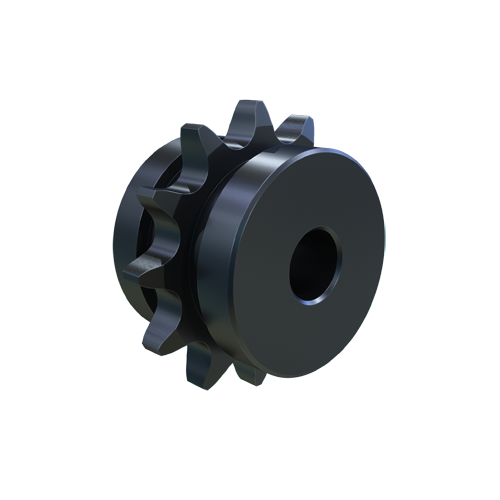

50C12 | 12 | 2.4148" | 2.708" | 50 | 5/8" | Finished Bore | 1 5/8" | 5/8" | €113.52 | |
|
50C13 | 13 | 2.6116" | 2.911" | 50 | 5/8" | Finished Bore | 1 5/8" | 5/8" | €116.59 | |
|
50C14 | 14 | 2.8087" | 3.113" | 50 | 5/8" | Finished Bore | 1 5/8" | 5/8" | €120.81 | |
 |
50C15 | 15 | 3.0061" | 3.315" | 50 | 5/8" | Finished Bore | 1 5/8" | 5/8" | €123.92 |
