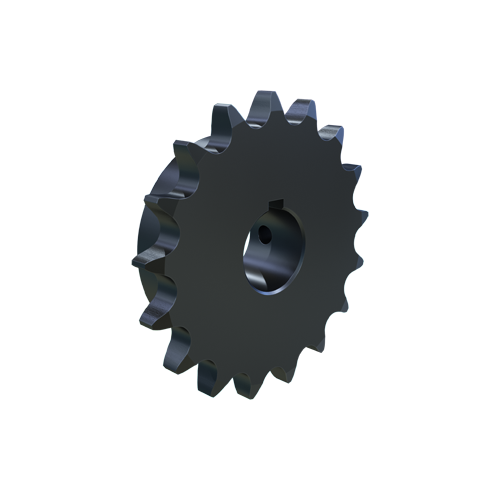

MARTIN SPROCKET 50BS17 1 Roller Chain Sprocket, Bore To Size, 1 Inch Bore, 3.718 Inch Outside Dia. Steel
Item: AJ8WVDModel: 50BS17 1
7 In Stock
3.718"
1"
Ships within 2 days via
€64.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 1" |
| Bore Size | 1" |
| Bore Type | Finished Bore |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1" |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | B |
| Hub Diameter | 2 5/8" |
| Hub Outside Dia. | 2 5/8" |
| Individually Packaged | Yes |
| Keyway Size | 1/4" x 1/8" |
| Length Through Bore | 1" |
| Length Thru Bore | 1" |
| Material | Steel |
| No. Of Teeth | 17 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 17 |
| Outside Dia. | 3.718" |
| Pitch | 5/8" |
| Pitch Dia. | 3.4014" |
| Pitch Diameter | 3.401" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 1.06" |
| Storage Dimension Length | 4 5/16" |
| Storage Dimension Width | 4 5/16" |
Shipping Info:
| Ship weight (kg) | 0.6 |
| Ship height (cm) | 2.69 |
| Ship length (cm) | 9.45 |
| Ship width (cm) | 9.45 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Number Of Teeth | Outside Dia. | Length Through Bore | Set Screw Size | Bore Size | For Chain Number | For Chain Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
50BS9 5/8 | 1.8274" | 9 | 2.092" | 1" | 1/4"-20 | 5/8" | 50 | 5/8" | €40.29 | |
 |
50BS9 3/4 | 1.8274" | 9 | 2.092" | 1" | 1/4"-20 | 3/4" | 50 | 5/8" | €40.29 | |
 |
50BS10 5/8 | 2.0225" | 10 | 2.299" | 1" | 1/4"-20 | 5/8" | 50 | 5/8" | €43.29 | |
 |
50BS10 3/4 | 2.0225" | 10 | 2.299" | 1" | 1/4"-20 | 3/4" | 50 | 5/8" | €43.29 | |
 |
50BS10 7/8 | 2.0225" | 10 | 2.299" | 1" | 1/4"-20 | 7/8" | 50 | 5/8" | €43.29 | |
 |
50BS10 1 | 2.0225" | 10 | 2.299" | 1" | 5/16"-18 | 1" | 50 | 5/8" | €43.29 | |
 |
50BS11 5/8 | 2.218" | 11 | 2.504" | 1" | 1/4"-20 | 5/8" | 50 | 5/8" | €45.21 |
