MARTIN SPROCKET Bored To Size Type Roller Chain Sprockets, 50 Chain Number
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1
T1
U1
V1
W1
X1
Y1
Z1
A2
B2
C2
D2
E2
F2
G2
H2
I2| Style | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Set Screw Size | Key Way Size | Construction Type | Hub Dia. | Bore Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 50BS9 3/4 | 1.8274" | 9 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid With Recess Groove | 1 3/8" | 3/4" | €40.29 | |
| B | 50BS9 5/8 | 1.8274" | 9 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid With Recess Groove | 1 3/8" | 5/8" | €40.29 | |
| C | 50BS10 5/8 | 2.023" | 10 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid With Recess | 1.563" | 5/8" | €43.29 | |
| D | 50BS10 3/4 | 2.023" | 10 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid With Recess | 1.563" | 3/4" | €43.29 | |
| E | 50BS10 1 | 2.023" | 10 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid With Recess | 1.563" | 1" | €43.29 | |
| F | 50BS10 7/8 | 2.023" | 10 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid With Recess | 1.563" | 7/8" | €43.29 | |
| G | 50BS11 5/8 | 2.218" | 11 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid With Recess Groove | 1 3/4" | 5/8" | €45.21 | |
| H | 50BS11 3/4 | 2.218" | 11 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid With Recess Groove | 1 3/4" | 3/4" | €45.21 | |
| I | 50BS11 7/8 | 2.218" | 11 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid With Recess Groove | 1 3/4" | 7/8" | €45.21 | |
| J | 50BS11 1 | 2.218" | 11 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid With Recess Groove | 1 3/4" | 1" | €45.21 | |
| K | 50BS12 1 3/16 | 2.415" | 12 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid With Recess | 1.984" | 1 3/16" | €46.86 | |
| L | 50BS12 1 1/4 | 2.415" | 12 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid With Recess | 1.984" | 1 1/4" | €46.86 | |
| M | 50BS12 5/8 | 2.415" | 12 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid With Recess | 1.984" | 5/8" | €46.86 | |
| N | 50BS12 3/4 | 2.415" | 12 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid With Recess | 1.984" | 3/4" | €46.86 | |
| O | 50BS12 7/8 | 2.415" | 12 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid With Recess | 1.984" | 7/8" | €46.86 | |

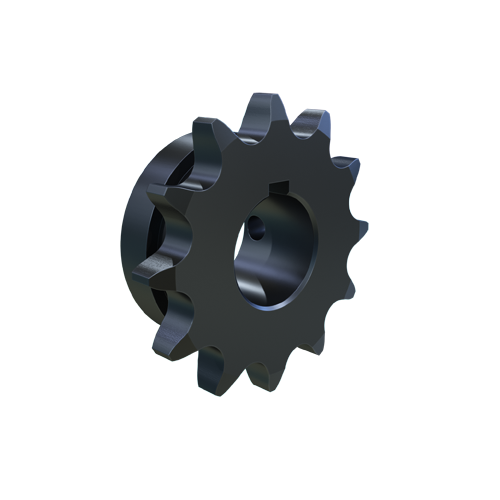

| P | 50BS12 1 | 2.415" | 12 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid With Recess | 1.984" | 1" | €46.86 | |
| Q | 50BS12 1 1/8 | 2.415" | 12 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid With Recess | 1.984" | 1 1/8" | €46.86 | |
| R | 50BS13 3/4 | 2.612" | 13 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid | 1 7/8" | 3/4" | €48.78 | |
| S | 50BS13 5/8 | 2.612" | 13 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid | 1 7/8" | 5/8" | €48.78 | |
| T | 50BS13 7/8 | 2.612" | 13 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid | 1 7/8" | 7/8" | €48.78 | |
| U | 50BS13 1 | 2.612" | 13 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid | 1 7/8" | 1" | €48.78 | |

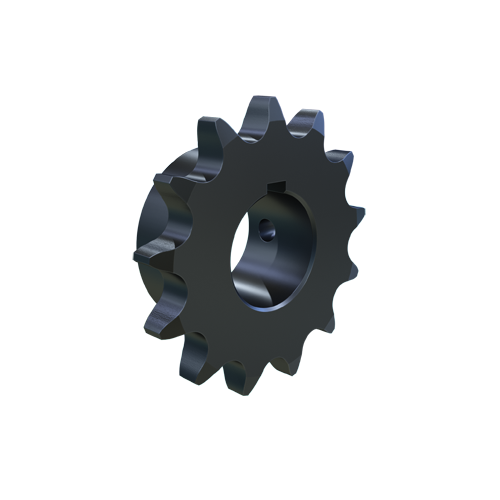

| V | 50BS13 1 1/8 | 2.612" | 13 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid | 1 7/8" | 1 1/8" | €48.78 | |

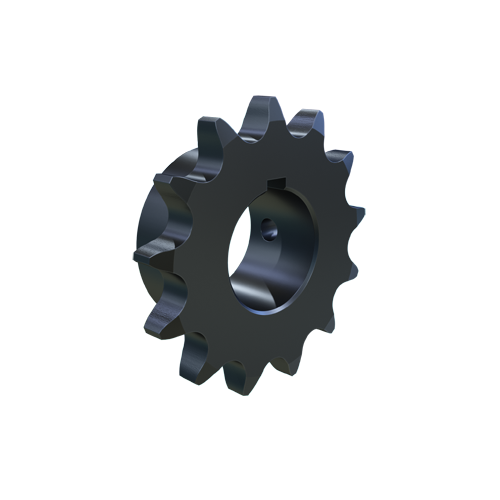

| W | 50BS13 1 3/16 | 2.612" | 13 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid With Recess Groove | 1 7/8" | 1 3/16" | €48.78 | |
| X | 50BS13 1 1/4 | 2.612" | 13 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid With Recess Groove | 1 7/8" | 1 1/4" | €48.78 | |
| Y | 50BS14 7/8 | 2.809" | 14 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid | 2 1/8" | 7/8" | €51.81 | |

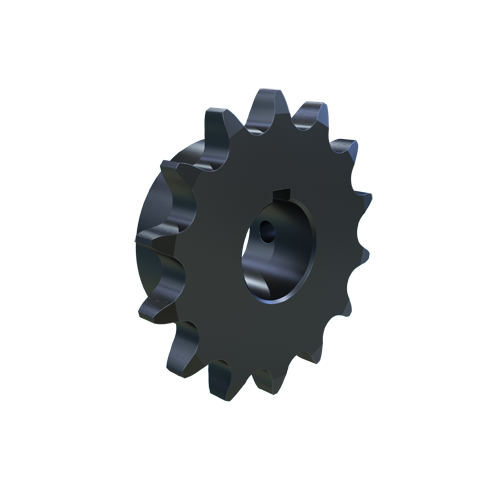

| Z | 50BS14 1 | 2.809" | 14 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid | 2 1/8" | 1" | €51.81 | |
| A1 | 50BS14 5/8 | 2.809" | 14 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid | 2 1/8" | 5/8" | €51.81 | |
| B1 | 50BS14 3/4 | 2.809" | 14 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid | 2 1/8" | 3/4" | €51.81 | |

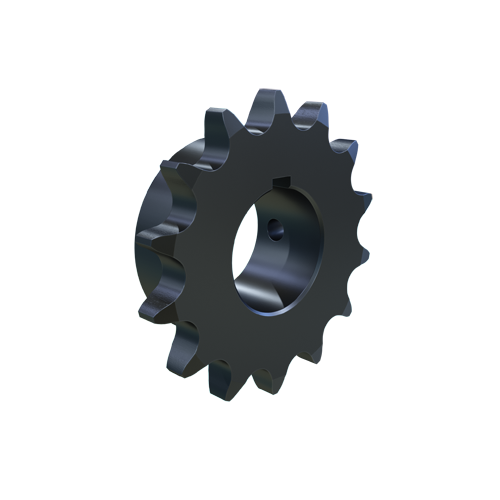

| C1 | 50BS14 1 1/4 | 2.809" | 14 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid | 2 1/8" | 1 1/4" | €51.81 | |

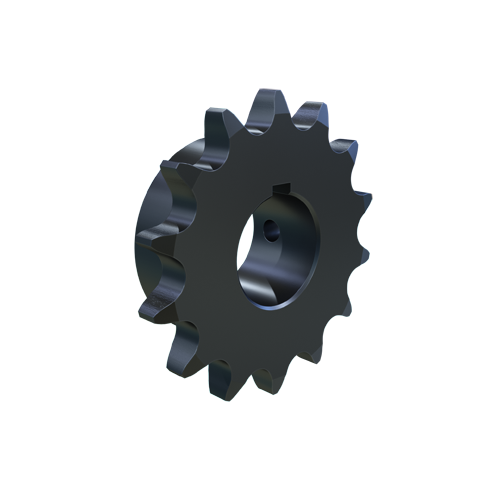

| D1 | 50BS14 1 1/8 | 2.809" | 14 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid | 2 1/8" | 1 1/8" | €51.81 | |
| E1 | 50BS14 1 3/16 | 2.809" | 14 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid | 2 1/8" | 1 3/16" | €51.81 | |
| F1 | 50BS15 1 3/8 | 3.006" | 15 | 1" | 5/16"-18 | 5/16" x 5/32" | Solid | 2 3/8" | 1 3/8" | €54.27 | |
| G1 | 50BS15 1 1/4 | 3.006" | 15 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid | 2.344" | 1 1/4" | €54.27 | |

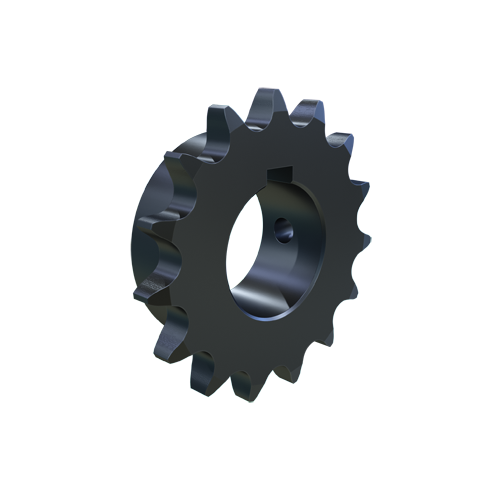

| H1 | 50BS15 1 7/16 | 3.006" | 15 | 1" | 3/8"-16 | 3/8" x 3/16" | Solid | 2 3/8" | 1 7/16" | €54.27 | |
| I1 | 50BS15 1 1/2 | 3.006" | 15 | 1" | 3/8"-16 | 3/8" x 3/16" | Solid | 2 3/8" | 1 1/2" | €54.27 | |
| J1 | 50BS15 1 | 3.006" | 15 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid | 2.343" | 1" | €54.27 | |
| K1 | 50BS15 1 3/16 | 3.006" | 15 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid | 2.343" | 1 3/16" | €54.27 | |
| L1 | 50BS15 5/8 | 3.006" | 15 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid | 2 3/8" | 5/8" | €54.27 | |
| M1 | 50BS15 3/4 | 3.006" | 15 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid | 2.343" | 3/4" | €54.27 | |

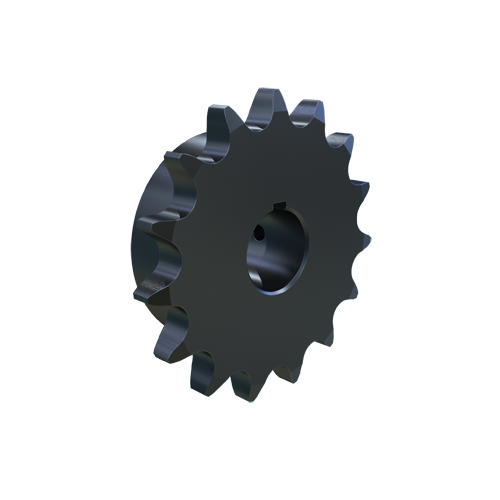

| N1 | 50BS15 7/8 | 3.006" | 15 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid | 2.343" | 7/8" | €54.27 | |

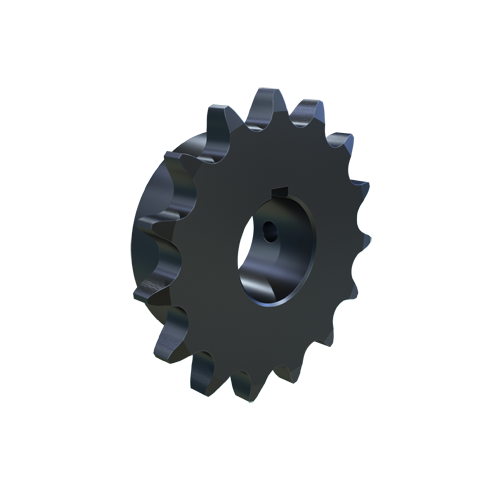

| O1 | 50BS15 1 1/8 | 3.006" | 15 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid | 2.343" | 1 1/8" | €54.27 | |
| P1 | 50BS16 1 1/4 | 3.204" | 16 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid | 2 1/2" | 1 1/4" | €57.27 | |
| Q1 | 50BS16 1 5/8 | 3.204" | 16 | 1" | 3/8"-16 | 3/8" x 3/16" | Solid | 2 1/2" | 1 5/8" | €57.27 | |

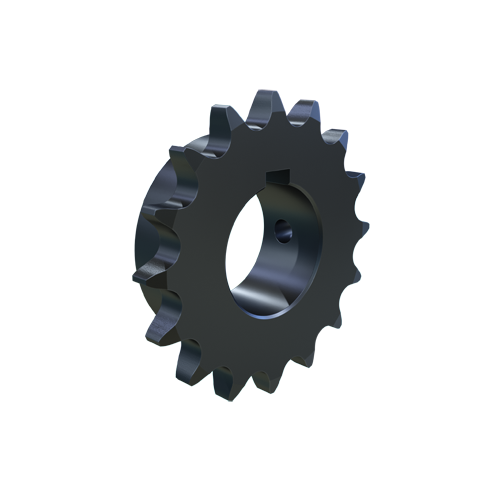

| R1 | 50BS16 1 1/2 | 3.204" | 16 | 1" | 3/8"-16 | 3/8" x 3/16" | Solid | 2 1/2" | 1 1/2" | €57.27 | |
| S1 | 50BS16 1 3/8 | 3.204" | 16 | 1" | 5/16"-18 | 5/16" x 5/32" | Solid | 2 1/2" | 1 3/8" | €57.27 | |
| T1 | 50BS16 1 7/16 | 3.204" | 16 | 1" | 3/8"-16 | 3/8" x 3/16" | Solid | 2 1/2" | 1 7/16" | €57.27 | |

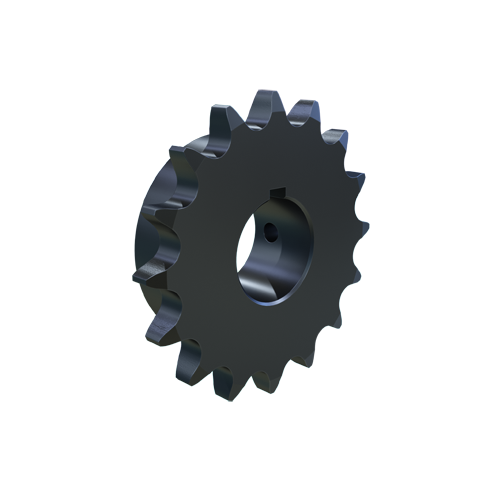

| U1 | 50BS16 1 3/16 | 3.204" | 16 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid | 2 1/2" | 1 3/16" | €57.27 | |

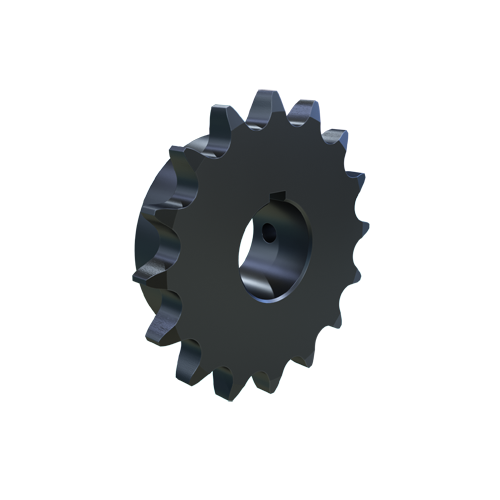

| V1 | 50BS16 1 1/8 | 3.204" | 16 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid | 2 1/2" | 1 1/8" | €57.27 | |

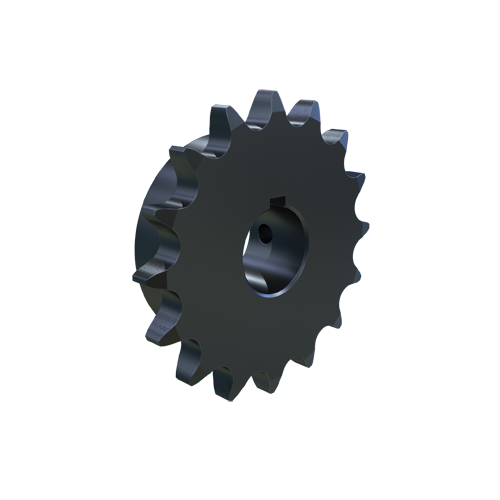

| W1 | 50BS16 1 | 3.204" | 16 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid | 2 1/2" | 1" | €57.27 | |
| X1 | 50BS16 7/8 | 3.204" | 16 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid | 2 1/2" | 7/8" | €57.27 | |
| Y1 | 50BS16 3/4 | 3.204" | 16 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid | 2 1/2" | 3/4" | €57.27 | |
| Z1 | 50BS16 5/8 | 3.204" | 16 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid | 2 1/2" | 5/8" | €57.27 | |
| A2 | 50BS17 5/8 | 3.401" | 17 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid | 2.688" | 5/8" | €64.13 | |
| B2 | 50BS17 3/4 | 3.401" | 17 | 1" | 1/4"-20 | 3/16" x 3/32" | Solid | 2 5/8" | 3/4" | €64.13 | |
| C2 | 50BS17 1 | 3.401" | 17 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid | 2 5/8" | 1" | €64.13 | |
| D2 | 50BS17 1 1/8 | 3.401" | 17 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid | 2 5/8" | 1 1/8" | €64.13 | |
| E2 | 50BS17 1 3/16 | 3.401" | 17 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid | 2 5/8" | 1 3/16" | €64.13 | |

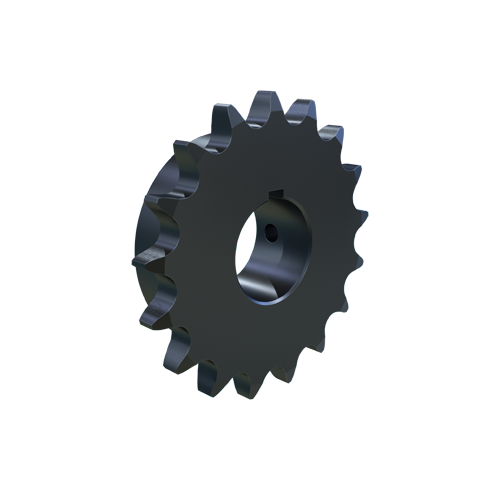

| F2 | 50BS17 1 1/4 | 3.401" | 17 | 1" | 5/16"-18 | 1/4" x 1/8" | Solid | 2 5/8" | 1 1/4" | €64.13 | |
| G2 | 50BS17 1 3/8 | 3.401" | 17 | 1" | 5/16"-18 | 5/16" x 5/32" | Solid | 2 5/8" | 1 3/8" | €64.13 | |

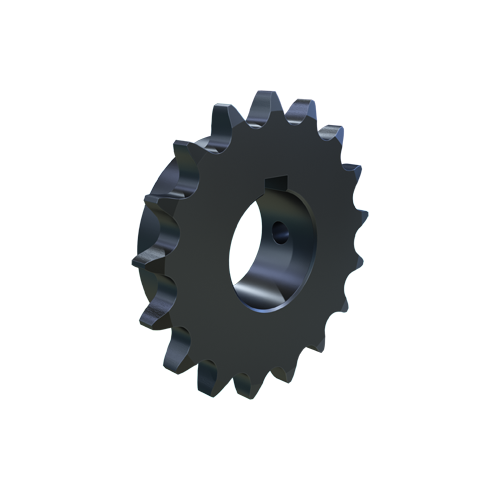

| H2 | 50BS17 1 7/16 | 3.401" | 17 | 1" | 3/8"-16 | 3/8" x 3/16" | Solid | 2 5/8" | 1 7/16" | €64.13 | |
| I2 | 50BS17 1 1/2 | 3.401" | 17 | 1" | 3/8"-16 | 3/8" x 3/16" | Solid | 2 5/8" | 1 1/2" | €64.13 |
