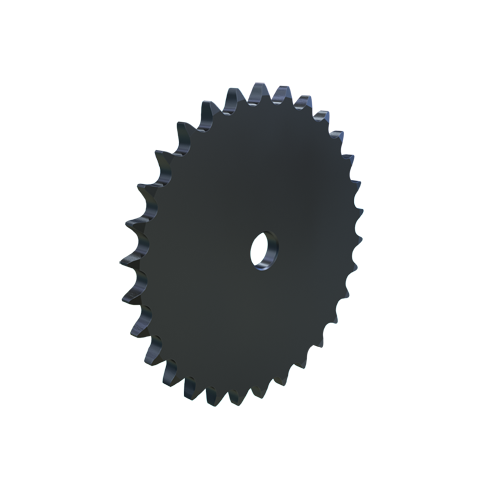

MARTIN SPROCKET 50A30 Roller Chain Sprocket, 50 Chain, Stock Bore, 30 Teeth, 5.979 Inch Pitch Dia., Steel
Item: AJ8RQBModel: 50A30
7 In Stock
5.979"
Ships within 2 days via
€59.73 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 0.7188" |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 0.343" |
| Length Thru Bore | 0.315" |
| Material | Steel |
| Min. Bore Size | 0.7188" |
| No. Of Teeth | 30 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 30 |
| Outside Dia. | 6.321" |
| Pitch | 5/8" |
| Pitch Dia. | 5.9792" |
| Pitch Diameter | 5.979" |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 0.343" |
| Storage Dimension Length | 6.321" |
| Storage Dimension Width | 6.321" |
Shipping Info:
| Ship weight (kg) | 1.14 |
| Ship height (cm) | 0.86 |
| Ship length (cm) | 16.05 |
| Ship width (cm) | 16.05 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
50A12 | 12 | 2.4148" | 2.708" | 0.343" | - | 50 | 5/8" | Finished Bore | €39.75 | |
 |
50A13 | 13 | 2.6116" | 2.911" | 0.343" | - | 50 | 5/8" | Finished Bore | €39.75 | |
 |
50A14 | 14 | 2.8087" | 3.113" | 0.343" | - | 50 | 5/8" | Finished Bore | €39.75 | |
 |
50A15 | 15 | 3.0061" | 3.315" | 0.343" | - | 50 | 5/8" | Finished Bore | €40.84 | |
 |
50A16 | 16 | 3.2036" | 3.517" | 0.343" | - | 50 | 5/8" | Finished Bore | €41.36 | |
 |
50A17 | 17 | 3.4014" | 3.718" | 0.343" | - | 50 | 5/8" | Finished Bore | €42.75 | |
 |
50A18 | 18 | 3.5992" | 3 23/25" | 0.343" | - | 50 | 5/8" | Finished Bore | €43.29 |
