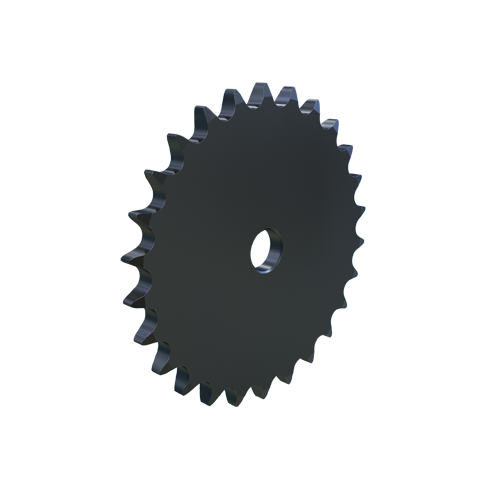

MARTIN SPROCKET 50A26 Roller Chain Sprocket, 50 Chain, Stock Bore, 26 Teeth, 5.185 Inch Pitch Dia., Steel
Item: AJ8RPRModel: 50A26
7 In Stock
5.185"
Ships within 2 days via
€54.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 23/32" |
| Bore Type | Finished Bore |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Chain Size | #50 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 0.7188" |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 0.343" |
| Length Thru Bore | 0.315" |
| Material | Steel |
| Min. Bore Size | 0.7188" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 26 |
| Outside Dia. | 5.522" |
| Pitch | 5/8" |
| Pitch Dia. | 5.185" , 5.1851" |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 0.343" |
| Storage Dimension Length | 5.523" |
| Storage Dimension Width | 5.523" |
| Type | Stock Bore Type A |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 0.86 |
| Ship length (cm) | 14.02 |
| Ship width (cm) | 14.02 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Pitch Dia. | No. Of Teeth | Length Through Bore | Storage Dimension Length | Storage Dimension Width | Min. Bore Size | Bore Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
50A12 | Steel | 2.415" | 12 | 0.343" | 2.708" | 2.708" | 5/8" | 5/8" | €39.75 | |
 |
50A13 | Steel | 2.612" | 13 | 0.343" | 2.911" | 2.911" | 5/8" | 5/8" | €39.75 | |
 |
50A14 | Steel | 2.809" | 14 | 0.343" | 3.113" | 3.113" | 5/8" | 5/8" | €39.75 | |
 |
50A15 | Steel | 3.006" | 15 | 0.343" | 3.315" | 3.315" | 5/8" | 5/8" | €40.84 | |
 |
50A16 | Steel | 3.204" | 16 | 0.343" | 3.517" | 3.517" | 5/8" | 5/8" | €41.36 | |
 |
50A17 | Steel | 3.401" | 17 | 0.343" | 3.718" | 3.718" | 5/8" | 5/8" | €42.75 | |
 |
50A18 | Steel | 3.599" | 18 | 0.343" | 3.919" | 3.919" | 5/8" | 5/8" | €43.29 |
