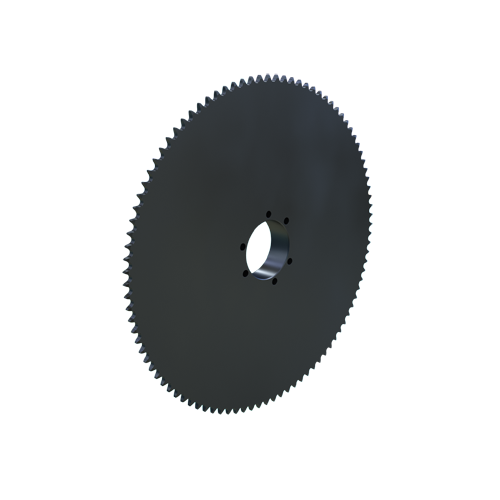

MARTIN SPROCKET 41SK96 Sprocket, 41 Chain, 96 Teeth, 15.282 Inch Pitch Dia., 15.573 Inch O.D., Steel
15.573"
Get it by Tuesday, Aug 25
€244.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1/2" to 2 5/8" |
| Bore Type | Bushed |
| Bushing Part Number | SK |
| Bushing Size | SK |
| Bushing Type | QD SK |
| Chain Number | 41 |
| Chain Pitch | 1/2" |
| Chain Size | #41 |
| Construction | Welded |
| Construction Type | Welded |
| For Chain Number | 41 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Dia. | 4" |
| Hub Outside Dia. | 4" |
| Individually Packaged | No |
| Length Through Bore | 1 1/4" |
| Length Thru Bore | 1 1/4" |
| Material | Steel |
| Max. Bore Size | 2 5/8" |
| Min. Bore Size | 1/2" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 96 |
| Outside Dia. | 15.573" |
| Pitch | 1/2" |
| Pitch Dia. | 15.2816" |
| Single Strand Tooth Thickness | 0.227" |
| Storage Dimension Height | 1 1/4" |
| Storage Dimension Length | 15.573" |
| Storage Dimension Width | 15.573" |
| Type | Type B Single Strand Welded Bushed |
Shipping Info:
| Ship weight (kg) | 5.84 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 39.55 |
| Ship width (cm) | 39.55 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Length Thru Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
41JA15 | 2.4049" | 15 | 5/8" | 2.05" | 3 1/16" | 3 1/16" | 13/16" | 14/25" | €56.80 | |
 |
41JA16 | 2.5629" | 16 | 5/8" | 2.072" | 3 1/16" | 3 1/16" | 13/16" | 14/25" | €58.34 | |
 |
41JA17 | 2.7211" | 17 | 5/8" | 2.234" | 3 1/16" | 3 1/16" | 13/16" | 14/25" | €63.29 | |
 |
41JA18 | 2.8794" | 18 | 5/8" | 2 3/8" | 3 3/16" | 3 3/16" | 3/4" | 14/25" | €74.10 | |
|
41JA19 | 3.0378" | 19 | 5/8" | 2.468" | 3 1/2" | 3 1/2" | 3/4" | 14/25" | €83.04 | |
|
41SH20 | 3.1962" | 20 | 13/16" | 2 3/4" | 3 1/2" | 3 1/2" | 15/16" | 0.812" | €84.89 | |
|
41SH21 | 3.3548" | 21 | 13/16" | 2 3/4" | 3 7/8" | 3 7/8" | 15/16" | 0.812" | €87.37 |
