MARTIN SPROCKET 41BS9 1/2 Roller Chain Sprocket, 41 Chain No., 0.5 Inch Bore, 1.674 Inch Outside Dia. Steel
Item: AJ8WLCModel: 41BS9 1/2
7 In Stock
1.674"
0.5"
Ships within 2 days via
€27.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Bore Dia. | 1/2" |
| Bore Size | 1/2" |
| Bore Type | Finished Bore |
| Chain Number | 41 |
| Chain Pitch | 1/2" |
| Chain Size | #41 |
| Construction | Solid With Recess |
| Construction Type | Solid With Recess |
| Finished Bore Size | 1/2" |
| For Chain Number | 41 |
| For Chain Pitch | 1/2" |
| Hub Dia. | 1 1/8" |
| Hub Outside Dia. | 1 1/8" |
| Hub Recessed For Chain | 1 |
| Individually Packaged | Yes |
| Key Way Size | 1/8" x 1/16" |
| Length Through Bore | 7/8" |
| Length Thru Bore | 7/8" |
| Material | Steel |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 9 |
| Pitch | 1/2" |
| Pitch Dia. | 1.4619" , 1.462" |
| Screw Size | 1/4"-20 x 1/4" |
| Set Screw Location | (2) 90° Apart (No Keyway) |
| Set Screw Size | #10-24 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.227" |
| Storage Dimension Height | 15/16" |
| Storage Dimension Length | 1 15/16" |
| Storage Dimension Width | 1 15/16" |
| Type | Bored to Size Type BS |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.24 |
| Ship length (cm) | 4.24 |
| Ship width (cm) | 4.24 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Hub Outside Dia. | Finished Bore Size | Set Screw Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
41BS9 5/8 | 1.462" | 9 | 7/8" | 1 1/8" | 5/8" | 1 1/8" | 5/8" | 1/4"-20 | €27.97 | |
 |
41BS10 1/2 | 1.618" | 10 | 7/8" | 1 1/4" | 1/2" | 1 1/4" | 1/2" | #10-24 | €29.33 | |
 |
41BS10 5/8 | 1.618" | 10 | 7/8" | 1 1/4" | 5/8" | 1 1/4" | 5/8" | 1/4"-20 | €29.33 | |
 |
41BS10 3/4 | 1.618" | 10 | 7/8" | 1 1/4" | 3/4" | 1 1/4" | 3/4" | 1/4"-20 | €29.33 | |
 |
41BS11 1/2 | 1.7747" | 11 | 7/8" | 1 3/8" | 1/2" | 1 7/16" | 1/2" | #10-24 | €30.42 | |
 |
41BS11 5/8 | 1.775" | 11 | 7/8" | 1 3/8" | 5/8" | 1 7/16" | 5/8" | 1/4"-20 | €30.42 | |
 |

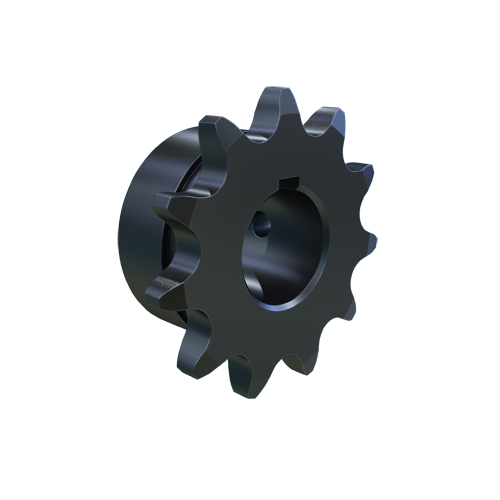

41BS11 3/4 | 1.775" | 11 | 7/8" | 1 3/8" | 3/4" | 1 7/16" | 3/4" | 1/4"-20 | €30.42 |
