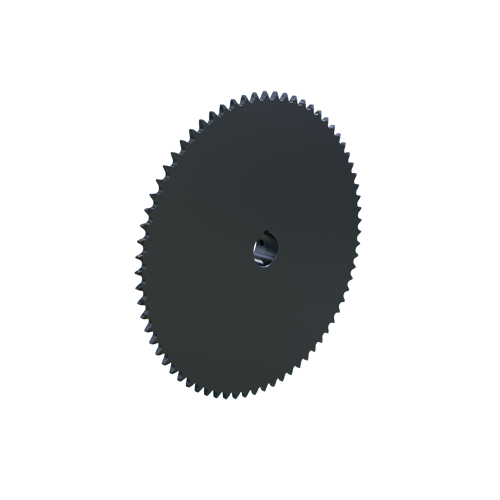

MARTIN SPROCKET 41BS70 1 1/4 Roller Chain Sprocket, 41 Chain No., 1.250 Inch Bore, 11.433 Inch Outside Dia. Steel
Item: AJ9CUPModel: 41BS70 1 1/4
7 In Stock
11.433"
1.250"
Ships within 2 days via
€160.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 1 1/4" |
| Bore Type | Finished Bore |
| Chain Number | 41 |
| Chain Pitch | 1/2" |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 1/4" |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Diameter | 4" |
| Hub Outside Dia. | 4" |
| Individually Packaged | No |
| Keyway Size | 1/4" x 1/8" |
| Length Through Bore | 1.188" |
| Material | Steel |
| No. Of Teeth | 70 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 70 |
| Outside Dia. | 11.433" |
| Pitch | 1/2" |
| Pitch Dia. | 11.1446" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.227" |
| Storage Dimension Height | 1.19" |
| Storage Dimension Length | 11.433" |
| Storage Dimension Width | 11.433" |
Shipping Info:
| Ship weight (kg) | 4.18 |
| Ship height (cm) | 3.02 |
| Ship length (cm) | 29.03 |
| Ship width (cm) | 29.03 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | Bore Size | For Chain Pitch | For Chain Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
41BS9 1/2 | 9 | 1.4619" | 1.674" | 7/8" | #10-24 | 1/2" | 1/2" | 41 | €27.97 | |
 |
41BS9 5/8 | 9 | 1.4619" | 1.674" | 7/8" | 1/4"-20 | 5/8" | 1/2" | 41 | €27.97 | |
 |
41BS10 1/2 | 10 | 1.618" | 1.839" | 7/8" | #10-24 | 1/2" | 1/2" | 41 | €29.33 | |
 |
41BS10 5/8 | 10 | 1.618" | 1.839" | 7/8" | 1/4"-20 | 5/8" | 1/2" | 41 | €29.33 | |
 |
41BS10 3/4 | 10 | 1.618" | 1.839" | 7/8" | 1/4"-20 | 3/4" | 1/2" | 41 | €29.33 | |
 |
41BS11 1/2 | 11 | 1.7747" | 2.003" | 7/8" | #10-24 | 1/2" | 1/2" | 41 | €30.42 | |
 |
41BS11 5/8 | 11 | 1.7747" | 2.003" | 7/8" | 1/4"-20 | 5/8" | 1/2" | 41 | €30.42 |
