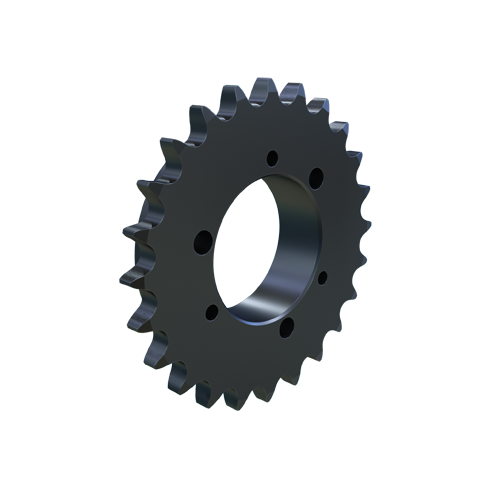

MARTIN SPROCKET 40SH24 Sprocket, QD, 40 Chain, 24 Teeth, 3.831 Inch Pitch Dia., 4.098 Inch O.D., Steel
Item: AJ8ZJQModel: 40SH24
7 In Stock
4.098"
Ships within 2 days via
€103.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | SH |
| Bushing Size | SH |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Diameter | 3" |
| Hub Outside Dia. | 2 3/4" |
| Individually Packaged | Yes |
| Length Through Bore | 1 5/16" |
| Length Thru Bore | 0.812" |
| Material | Steel |
| Max. Bore Size | 1 11/16" |
| Min. Bore Size | 1/2" |
| No. Of Teeth | 24 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 24 |
| Outside Dia. | 4.098" |
| Pitch | 1/2" |
| Pitch Dia. | 3.8306" |
| Pitch Diameter | 3.831" |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 15/16" |
| Storage Dimension Length | 4 5/16" |
| Storage Dimension Width | 4 5/16" |
Shipping Info:
| Ship weight (kg) | 0.52 |
| Ship height (cm) | 3.33 |
| Ship length (cm) | 10.41 |
| Ship width (cm) | 10.41 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Bushing Type | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
40JA15 | 15 | 2.4049" | 2.652" | 1 1/16" | Type JA QD | 40 | 1/2" | Bushed | €58.34 | |
 |
40JA16 | 16 | 2.5629" | 2.814" | 1 1/16" | Type JA QD | 40 | 1/2" | Bushed | €61.11 | |
 |
40JA17 | 17 | 2.7211" | 2.975" | 1 1/16" | Type JA QD | 40 | 1/2" | Bushed | €66.70 | |
 |
40JA18 | 18 | 2.8794" | 3.136" | 1 1/16" | Type JA QD | 40 | 1/2" | Bushed | €71.31 | |
 |
40JA19 | 19 | 3.0378" | 3.296" | 1 1/16" | Type JA QD | 40 | 1/2" | Bushed | €76.26 | |
 |
40SH20 | 20 | 3.1962" | 3.457" | 1 5/16" | Type SH QD | 40 | 1/2" | Bushed | €82.44 | |
 |
40SH21 | 21 | 3.3548" | 3.617" | 1 5/16" | Type SH QD | 40 | 1/2" | Bushed | €89.22 |
