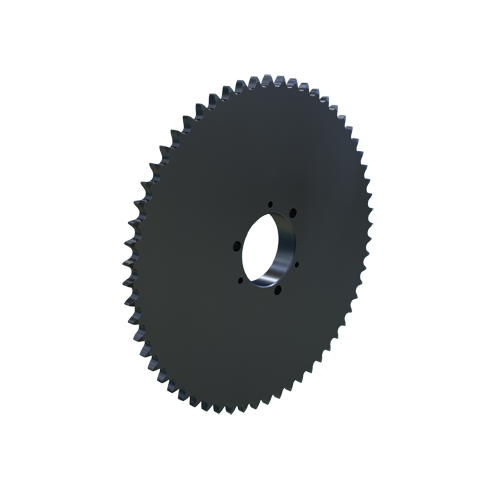

MARTIN SPROCKET 40SDS60 Sprocket, QD, 40 Chain, 60 Teeth, 9.554 Inch Pitch Dia., 9.841 Inch O.D., Steel
Item: AJ8ZLMModel: 40SDS60
7 In Stock
9.841"
Ships within 2 days via
€165.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | SDS |
| Bushing Size | SDS |
| Bushing Type | Type SDS QD |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Chain Size | #40 |
| Construction | Welded |
| Construction Type | Welded |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Dia. | 3 1/4" |
| Hub Outside Dia. | 3.188" |
| Individually Packaged | No |
| Length Through Bore | 1 3/8" |
| Length Thru Bore | 3/4" |
| Material | Steel |
| Max. Bore Size | 2" |
| Min. Bore Size | 1/2" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 60 |
| Outside Dia. | 9.841" |
| Pitch | 1/2" |
| Pitch Dia. | 9.5537" , 9.554" |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 3/4" |
| Storage Dimension Length | 9.841" |
| Storage Dimension Width | 9.841" |
| Type | QD Bushed Type B |
Shipping Info:
| Ship weight (kg) | 2.64 |
| Ship height (cm) | 3.51 |
| Ship length (cm) | 24.99 |
| Ship width (cm) | 24.99 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Length Thru Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
40JA15 | 2.405" | 15 | 1 1/16" | 2.05" | 3 1/16" | 3 1/16" | 13/16" | 14/25" | €58.34 | |
 |
40JA16 | 2.563" | 16 | 1 1/16" | 2.062" | 3 1/16" | 3 1/16" | 13/16" | 14/25" | €61.11 | |
 |
40JA17 | 2.721" | 17 | 1 1/16" | 2 1/8" | 3 1/16" | 3 1/16" | 13/16" | 14/25" | €66.70 | |
 |
40JA18 | 2.879" | 18 | 1 1/16" | 2 1/8" | 3 3/16" | 3 3/16" | 3/4" | 14/25" | €71.31 | |
 |
40JA19 | 3.038" | 19 | 1 1/16" | 2 1/8" | 3 1/2" | 3 1/2" | 3/4" | 14/25" | €76.26 | |
 |
40SH20 | 3.196" | 20 | 1 5/16" | 2.688" | 3 1/2" | 3 1/2" | 15/16" | 0.812" | €82.44 | |
 |
40SH21 | 3.355" | 21 | 1 5/16" | 2 3/4" | 3 7/8" | 3 7/8" | 15/16" | 0.812" | €89.22 |
