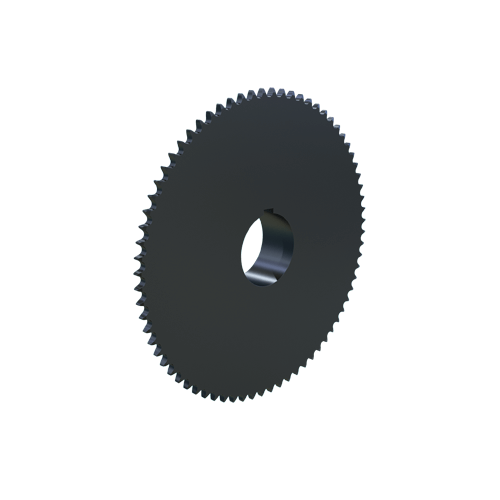

MARTIN SPROCKET 40Q72 Sprocket, MST, 40 Chain, 72 Teeth, 11.463 Inch Pitch Dia., 11.752 Inch O.D., Steel
Item: AL4QQMModel: 40Q72
7 In Stock
11.752"
Ships within 2 days via
€263.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 0.75" to 2.688" |
| Bore Type | Bushed |
| Bushing Part Number | Q1 |
| Bushing Size | Q1 |
| Bushing Type | MST Q1 |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Chain Size | #40 |
| Construction | Welded |
| Construction Type | Welded |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Dia. | 4 1/4" |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Key Way Size | 1/2" |
| Keyway Width | 1/2" |
| Length Through Bore | 1 3/4" |
| Length Thru Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 11/16" |
| Min. Bore Size | 3/4" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 72 |
| Outside Dia. | 11.752" |
| Pitch | 1/2" |
| Pitch Dia. | 11.4628" |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 11.752" |
| Storage Dimension Width | 11.752" |
| Type | Type 4 Single Strand Welded Bushed |
Shipping Info:
| Ship weight (kg) | 4.66 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 29.85 |
| Ship width (cm) | 29.85 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
40P31 | 4.942" | 31 | 1 15/16" | 3 1/4" | 1/2" to 1 3/4" | 40 | 5.217" | 5.217" | €155.31 | |
 |
40P32 | 5.1011" | 32 | 1 5/16" | 3" | 1/2" to 1 3/4" | #40 | 5 1/2" | 5 1/2" | €155.46 | |
 |
40P33 | 5.2601" | 33 | 1 5/16" | 3 1/4" | 1/2" to 1 3/4" | #40 | 5.536" | 5.536" | €157.04 | |
 |
40P34 | 5.419" | 34 | 1 15/16" | 3 1/4" | 1/2" to 1 3/4" | 40 | 5.696" | 5.696" | €158.62 | |
|
40P35 | 5.5779" | 35 | 1 5/16" | 3" | 1/2" to 1 3/4" | #40 | 6" | 6" | €160.48 | |
|
40P36 | 5.7369" | 36 | 1 5/16" | 3 1/4" | 1/2" to 1 3/4" | #40 | 6.015" | 6.015" | €169.06 | |
|
40P37 | 5.8958" | 37 | 1 5/16" | 3 1/4" | 1/2" to 1 3/4" | #40 | 6.175" | 6.175" | €174.19 |
