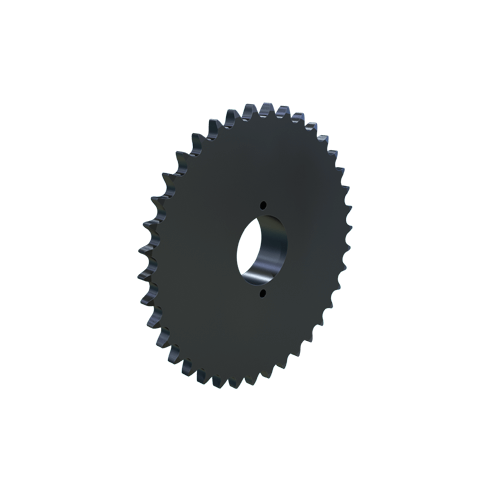

MARTIN SPROCKET MST Bushed Type Roller Chain Sprockets, 40 Chain Number
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1| Style | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 40H15H | 2.405" | 15 | 1 1/4" | 2 1/2" | 3/8" to 10 1/2" | 40 | 2.652" | 2.652" | €84.77 | |
| B | 40H16H | 2.563" | 16 | 1 1/4" | 2 1/2" | 3/8" to 10 1/2" | 40 | 2.814" | 2.814" | €89.22 | |
| C | 40P18H | 2.879" | 18 | 1 15/16" | 3" | 1/2" to 1 3/4" | 40 | 3.136" | 3.136" | €95.51 | |
| D | 40H18H | 2.879" | 18 | 1 1/4" | 2 1/2" | 3/8" to 10 1/2" | 40 | 3.136" | 3.136" | €95.51 | |
| E | 40P19H | 3.0378" | 19 | 1 5/16" | 3" | 1/2" to 1 3/4" | #40 | 3.296" | 3.296" | €97.81 | |
| F | 40H19H | 3.0378" | 19 | 7/8" | 2 1/2" | 3/8" to 1 1/2" | #40 | 3.296" | 3.296" | €97.81 | |
| G | 40H20H | 3.196" | 20 | 1 1/4" | 2 1/2" | 3/8" to 10 1/2" | 40 | 3.457" | 3.457" | €112.41 | |
| F | 40H23H | 3.672" | 23 | 7/8" | 2 1/2" | 3/8" to 1 1/2" | #40 | 4 5/16" | 4 5/16" | €130.25 | |
| F | 40P23H | 3.672" | 23 | 1 5/16" | 3" | 1/2" to 1 3/4" | #40 | 4 5/16" | 4 5/16" | €130.25 | |
| H | 40H24H | 3.831" | 24 | 1 1/4" | 2 1/2" | 3/8" to 10 1/2" | 40 | 4 5/16" | 4 5/16" | €135.86 | |
| I | 40P20H | 3.1962" | 20 | 1 5/16" | 3" | 1/2" to 1 3/4" | #40 | 3.457" | 3.457" | €112.41 | |
| J | 40P21H | 3.3548" | 21 | 1 5/16" | 3" | 1/2" to 1 3/4" | #40 | 4" | 4" | €119.54 | |
| F | 40H21H | 3.3548" | 21 | 7/8" | 2 1/2" | 3/8" to 1 1/2" | #40 | 3 7/8" | 3 7/8" | €119.54 | |
| K | 40P22H | 3.5133" | 22 | 1 5/16" | 3" | 1/2" to 1 3/4" | #40 | 4 5/16" | 4 5/16" | €123.55 | |
| F | 40H22H | 3.5133" | 22 | 7/8" | 2 1/2" | 3/8" to 1 1/2" | #40 | 3 7/8" | 3 7/8" | €123.55 | |
| F | 40P24H | 3.8306" | 24 | 1 5/16" | 3" | 1/2" to 1 3/4" | #40 | 4 5/16" | 4 5/16" | €135.86 | |
| F | 40H25H | 3.9894" | 25 | 7/8" | 2 1/2" | 3/8" to 1 1/2" | #40 | 4 3/4" | 4 3/4" | €142.58 | |
| L | 40P25H | 3.9894" | 25 | 1 5/16" | 3" | 1/2" to 1 3/4" | #40 | 4 5/16" | 4 5/16" | €142.58 | |
| M | 40H26H | 4.148" | 26 | 1 1/4" | 2 1/2" | 3/8" to 10 1/2" | 40 | 4 3/4" | 4 3/4" | €148.15 | |
| N | 40H28H | 4.466" | 28 | 1 1/4" | 2 1/2" | 3/8" to 10 1/2" | 40 | 5 3/16" | 5 3/16" | €150.31 | |
| O | 40H30H | 4.783" | 30 | 1 1/4" | 2 1/2" | 3/8" to 10 1/2" | 40 | 5 3/16" | 5 3/16" | €153.60 | |
| P | 40P30H | 4.783" | 30 | 1 15/16" | 3" | 1/2" to 1 3/4" | 40 | 5 1/4" | 5 1/4" | €153.60 | |
| Q | 40P31 | 4.942" | 31 | 1 15/16" | 3 1/4" | 1/2" to 1 3/4" | 40 | 5.217" | 5.217" | €155.31 | |
| R | 40P26H | 4.1481" | 26 | 1 5/16" | 3" | 1/2" to 1 3/4" | #40 | 4 13/16" | 4 13/16" | €148.15 | |
| S | 40P27H | 4.3069" | 27 | 1 5/16" | 3" | 1/2" to 1 3/4" | #40 | 4 13/16" | 4 13/16" | €149.32 | |
| T | 40H27H | 4.3069" | 27 | 7/8" | 2 1/2" | 3/8" to 1 1/2" | #40 | 4 3/4" | 4 3/4" | €149.32 | |
| F | 40P28H | 4.4657" | 28 | 1 5/16" | 3" | 1/2" to 1 3/4" | #40 | 4 13/16" | 4 13/16" | €150.31 | |
| U | 40P29H | 4.6245" | 29 | 1 5/16" | 3 1/4" | 1/2" to 1 3/4" | #40 | 4.897" | 4.897" | €152.16 | |
| V | 40P34 | 5.419" | 34 | 1 15/16" | 3 1/4" | 1/2" to 1 3/4" | 40 | 5.696" | 5.696" | €158.62 | |
| F | 40H32H | 5.1011" | 32 | 7/8" | 2 1/2" | 3/8" to 1 1/2" | #40 | 6" | 6" | €190.82 | |
| F | 40P32 | 5.1011" | 32 | 1 5/16" | 3" | 1/2" to 1 3/4" | #40 | 5 1/2" | 5 1/2" | €155.46 | |
| W | 40P33 | 5.2601" | 33 | 1 5/16" | 3 1/4" | 1/2" to 1 3/4" | #40 | 5.536" | 5.536" | €157.04 | |
| X | 40H33H | 5.2601" | 33 | 7/8" | 2 3/4" | 3/8" to 1 1/2" | #40 | 5.536" | 5.536" | €196.54 | |
| Y | 40H35H | 5.5779" | 35 | 7/8" | 2 1/2" | 3/8" to 1 1/2" | #40 | 6" | 6" | €208.57 | |
| F | 40P35 | 5.5779" | 35 | 1 5/16" | 3" | 1/2" to 1 3/4" | #40 | 6" | 6" | €160.48 | |
| F | 40P36 | 5.7369" | 36 | 1 5/16" | 3 1/4" | 1/2" to 1 3/4" | #40 | 6.015" | 6.015" | €169.06 | |
| F | 40H36H | 5.7369" | 36 | 7/8" | 2 3/4" | 3/8" to 1 1/2" | #40 | 6.015" | 6.015" | €214.45 | |
| F | 40P37 | 5.8958" | 37 | 1 5/16" | 3 1/4" | 1/2" to 1 3/4" | #40 | 6.175" | 6.175" | €174.19 | |
| Z | 40H38H | 6.0548" | 38 | 7/8" | 2 3/4" | 3/8" to 1 1/2" | #40 | 6.334" | 6.334" | €226.31 | |
| A1 | 40P38 | 6.055" | 38 | 1 15/16" | 3 1/4" | 1/2" to 1 3/4" | 40 | 6.334" | 6.334" | €179.51 | |
| F | 40P40 | 6.3727" | 40 | 1 5/16" | 3 1/4" | 1/2" to 1 3/4" | #40 | 6.653" | 6.653" | €184.68 | |
| F | 40H40H | 6.3727" | 40 | 7/8" | 2 3/4" | 3/8" to 1 1/2" | #40 | 6.653" | 6.653" | €238.21 | |
| B1 | 40P41 | 6.5317" | 41 | 1 5/16" | 3 1/4" | 1/2" to 1 3/4" | #40 | 6.813" | 6.813" | €186.81 | |
| B1 | 40P42 | 6.6907" | 42 | 1 5/16" | 3 1/4" | 1/2" to 1 3/4" | #40 | 6.972" | 6.972" | €188.10 | |
| B1 | 40P44 | 7.0088" | 44 | 1 5/16" | 3 1/4" | 1/2" to 1 3/4" | #40 | 7.291" | 7.291" | €190.26 | |
| B1 | 40P50 | 7.963" | 50 | 1 5/16" | 3 1/4" | 1/2" to 1 3/4" | #40 | 8.247" | 8.247" | €205.43 | |
| B1 | 40P45 | 7.1678" | 45 | 1 5/16" | 3 1/4" | 1/2" to 1 3/4" | #40 | 7.45" | 7.45" | €191.40 | |
| C1 | 40P47 | 7.4859" | 47 | 1 5/16" | 3 1/4" | 1/2" to 1 3/4" | #40 | 7.769" | 7.769" | €196.54 | |
| B1 | 40P48 | 7.6449" | 48 | 1 5/16" | 3 1/4" | 1/2" to 1 3/4" | #40 | 7.929" | 7.929" | €199.12 | |
| D1 | 40P54 | 8.599" | 54 | 1 15/16" | 3 1/4" | 1/2" to 1 3/4" | 40 | 8.885" | 8.885" | €208.57 | |
| B1 | 40P56 | 8.9174" | 56 | 1 5/16" | 3 1/4" | 1/2" to 1 3/4" | #40 | 9.203" | 9.203" | €214.45 | |
| E1 | 40P60 | 9.554" | 60 | 1 15/16" | 3 1/4" | 1/2" to 1 3/4" | 40 | 9.841" | 9.841" | €217.45 | |
| B1 | 40Q60 | 9.5537" | 60 | 1 3/4" | 4 1/4" | 0.75" to 2.688" | #40 | 9.841" | 9.841" | €217.45 | |
| F1 | 40P70 | 11.145" | 70 | 1 15/16" | 3 1/4" | 1/2" to 1 3/4" | 40 | 11.433" | 11.433" | €258.11 | |
| B1 | 40Q70 | 11.1446" | 70 | 1 3/4" | 4 1/4" | 0.75" to 2.688" | #40 | 11.433" | 11.433" | €258.11 | |
| G1 | 40Q72 | 11.4628" | 72 | 1 3/4" | 4 1/4" | 0.75" to 2.688" | #40 | 11.752" | 11.752" | €263.54 | |
| H1 | 40Q80 | 12.7357" | 80 | 1 3/4" | 4 1/4" | 0.75" to 2.688" | #40 | 13.026" | 13.026" | €245.52 | |
| I1 | 40Q84 | 13.3721" | 84 | 1 3/4" | 4 1/4" | 0.75" to 2.688" | #40 | 13.663" | 13.663" | €260.24 | |
| J1 | 40Q96 | 15.2816" | 96 | 1 3/4" | 4 1/4" | 0.75" to 2.688" | #40 | 15.573" | 15.573" | €347.98 | |
| K1 | 40Q112 | 17.8277" | 112 | 1 3/4" | 4 1/4" | 0.75" to 2.688" | #40 | 18.121" | 18.121" | €399.40 |
