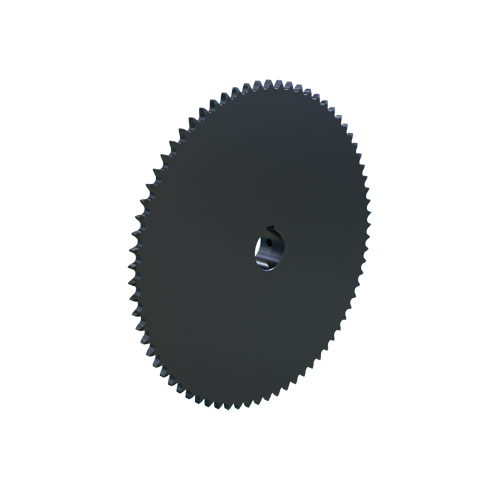

MARTIN SPROCKET 40BS72 1 7/16 Roller Chain Sprocket, Bore To Size, 1.438 Inch Bore, 11.752 Inch Outside Dia. Steel
11.752"
1.438"
Get it by Wednesday, Jul 1
€147.25 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 7/16" |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Chain Size | #40 |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 7/16" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Dia. | 4" |
| Hub Outside Dia. | 4" |
| Individually Packaged | No |
| Key Way Size | 3/8" x 3/16" |
| Length Through Bore | 1 1/4" |
| Length Thru Bore | 1 1/4" |
| Material | Steel |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 72 |
| Outside Dia. | 11.752" |
| Pitch | 1/2" |
| Pitch Dia. | 11.4628" |
| Product Datasheet | martin-sprocket-100a10.pdf |
| Screw Size | 3/8"-16 x 3/8" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 3/8"-16 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 1 1/4" |
| Storage Dimension Length | 11.752" |
| Storage Dimension Width | 11.752" |
| Type | Type B Bored to Size Single Strand Welded |
Shipping Info:
| Ship weight (kg) | 5.18 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 29.85 |
| Ship width (cm) | 29.85 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Hub Dia. | Length Through Bore | Set Screw Size | Set Screw Location | Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
40BS9 1/2 | 1/2" | 1.462" | 1.674" | 1 1/8" | 7/8" | #10-24 | (2) 90° Apart (No Keyway) | 1/2" | €29.33 | |
 |
40BS9 5/8 | 5/8" | 1.462" | 1.674" | 1 1/8" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | €29.33 | |
 |
40BS10 1/2 | 1/2" | 1.618" | 1.839" | 1 1/4" | 7/8" | #10-24 | (2) 90° Apart (No Keyway) | 1/2" | €30.42 | |
 |
40BS10 5/8 | 5/8" | 1.618" | 1.839" | 1 1/4" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | €30.42 | |
 |
40BS10 3/4 | 3/4" | 1.618" | 1.839" | 1 1/4" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 3/4" | €30.42 | |
 |
40BS11 1/2 | 1/2" | 1.775" | 2.003" | 1 3/8" | 7/8" | #10-24 | (2) 90° Apart (No Keyway) | 1/2" | €31.80 | |
 |
40BS11 5/8 | 5/8" | 1.775" | 2.003" | 1 3/8" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | €31.80 |
