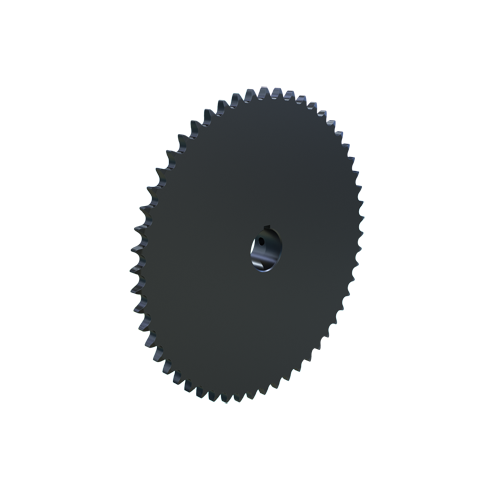

MARTIN SPROCKET 40BS54 1 3/16 Roller Chain Sprocket, 40 Chain No., 1.188 Inch Bore, 8.885 Inch Outside Dia. Steel
Item: AJ9DELModel: 40BS54 1 3/16
7 In Stock
8.885"
1.188"
Ships within 2 days via
€135.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 1 3/16" |
| Bore Size | 1 3/16" |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Chain Size | #40 |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 3/16" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Diameter | 3 1/2" |
| Hub Outside Dia. | 3 1/2" |
| Individually Packaged | No |
| Keyway Size | 1/4" x 1/8" |
| Length Through Bore | 1 1/8" |
| Length Thru Bore | 1 1/8" |
| Material | Steel |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 54 |
| Outside Dia. | 8.885" |
| Pitch | 1/2" |
| Pitch Dia. | 8.5992" |
| Product Datasheet | martin-sprocket-100a10.pdf |
| Screw Size | 5/16"-18 x 5/16" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 1.13" |
| Storage Dimension Length | 8.885" |
| Storage Dimension Width | 8.885" |
| Type | Type B Bored to Size Single Strand Welded |
Shipping Info:
| Ship weight (kg) | 2.79 |
| Ship height (cm) | 2.87 |
| Ship length (cm) | 22.58 |
| Ship width (cm) | 22.58 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | Set Screw Location | Bore Size | For Chain Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
40BS9 1/2 | 9 | 1.4619" | 1.674" | 7/8" | #10-24 | (2) 90° Apart (No Keyway) | 1/2" | 40 | €29.33 | |
 |
40BS10 1/2 | 10 | 1.618" | 1.839" | 7/8" | #10-24 | (2) 90° Apart (No Keyway) | 1/2" | 40 | €30.42 | |
 |
40BS11 1/2 | 11 | 1.7747" | 2.003" | 7/8" | #10-24 | (2) 90° Apart (No Keyway) | 1/2" | 40 | €31.80 | |
 |
40BS12 1/2 | 12 | 1.9319" | 2.166" | 7/8" | #10-24 | (2) 90° Apart (No Keyway) | 1/2" | 40 | €34.80 | |
 |
40BS13 1/2 | 13 | 2.0893" | 2.329" | 7/8" | #10-24 | (2) 90° Apart (No Keyway) | 1/2" | 40 | €36.45 | |
 |
40BS14 1/2 | 14 | 2.247" | 2.491" | 7/8" | #10-24 | (2) 90° Apart (No Keyway) | 1/2" | 40 | €38.36 | |
 |
40BS15 1/2 | 15 | 2.4049" | 2.652" | 7/8" | #10-24 | (2) 90° Apart (No Keyway) | 1/2" | 40 | €41.36 |
