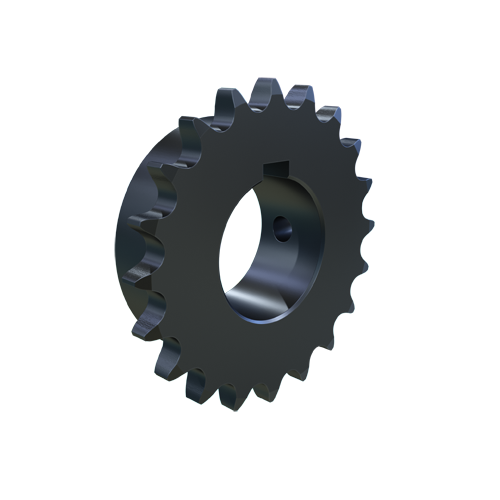

MARTIN SPROCKET 40BS20 1 1/2 Roller Chain Sprocket, Bore To Size, 1.5 Inch Bore, 3.457 Inch Outside Dia. Steel
Item: AJ8WCTModel: 40BS20 1 1/2
7 In Stock
3.457"
1.5"
Ships within 2 days via
€62.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 1 1/2" |
| Bore Size | 1 1/2" |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Diameter | 2 5/8" |
| Hub Outside Dia. | 2 5/8" |
| Individually Packaged | Yes |
| Keyway Size | 3/8" x 3/16" |
| Length Through Bore | 1" |
| Length Thru Bore | 1" |
| Material | Steel |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 20 |
| Outside Dia. | 3.457" |
| Pitch | 1/2" |
| Pitch Dia. | 3.1962" |
| Pitch Diameter | 3.196" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 3/8"-16 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 1.06" |
| Storage Dimension Length | 3 1/4" |
| Storage Dimension Width | 3 1/4" |
Shipping Info:
| Ship weight (kg) | 0.51 |
| Ship height (cm) | 2.69 |
| Ship length (cm) | 8.79 |
| Ship width (cm) | 8.79 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | Set Screw Location | Bore Size | For Chain Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
40BS9 1/2 | 9 | 1.4619" | 1.674" | 7/8" | #10-24 | (2) 90° Apart (No Keyway) | 1/2" | 40 | €29.33 | |
 |
40BS9 5/8 | 9 | 1.4619" | 1.674" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | 40 | €29.33 | |
 |
40BS10 1/2 | 10 | 1.618" | 1.839" | 7/8" | #10-24 | (2) 90° Apart (No Keyway) | 1/2" | 40 | €30.42 | |
 |
40BS10 5/8 | 10 | 1.618" | 1.839" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | 40 | €30.42 | |
 |
40BS10 3/4 | 10 | 1.618" | 1.839" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 3/4" | 40 | €30.42 | |
 |
40BS11 1/2 | 11 | 1.7747" | 2.003" | 7/8" | #10-24 | (2) 90° Apart (No Keyway) | 1/2" | 40 | €31.80 | |
 |
40BS11 5/8 | 11 | 1.7747" | 2.003" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | 40 | €31.80 |
