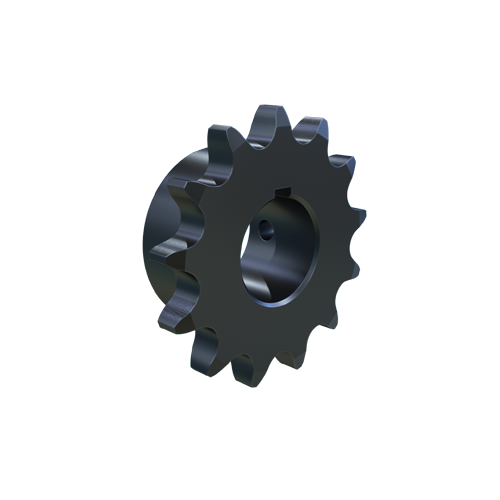

MARTIN SPROCKET 40BS13 7/8 Roller Chain Sprocket, 40 Chain No., 0.875 Inch Bore, 2.329 Inch Outside Dia. Steel
Item: AJ8VYVModel: 40BS13 7/8
7 In Stock
2.329"
0.875"
Ships within 2 days via
€36.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 7/8" |
| Bore Size | 7/8" |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Chain Size | #40 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 7/8" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Dia. | 1.563" |
| Hub Outside Dia. | 1 9/16" |
| Individually Packaged | Yes |
| Key Way Size | 3/16" x 3/32" |
| Length Through Bore | 7/8" |
| Length Thru Bore | 7/8" |
| Material | Steel |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 13 |
| Pitch | 1/2" |
| Pitch Dia. | 2.089" , 2.0893" |
| Screw Size | 1/4"-20 x 1/4" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 1/4"-20 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 15/16" |
| Storage Dimension Length | 2 9/16" |
| Storage Dimension Width | 2 9/16" |
| Type | Bored to Size Type BS |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 2.24 |
| Ship length (cm) | 5.92 |
| Ship width (cm) | 5.92 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Length Thru Bore | Set Screw Size | Key Way Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
40BS9 1/2 | 1.462" | 9 | 7/8" | 1 1/8" | 1/2" | 7/8" | #10-24 | 1/8" x 1/16" | €29.33 | |
 |
40BS9 5/8 | 1.462" | 9 | 7/8" | 1 1/8" | 5/8" | 7/8" | 1/4"-20 | 3/16" x 3/32" | €29.33 | |
 |
40BS10 1/2 | 1.618" | 10 | 7/8" | 1 1/4" | 1/2" | 7/8" | #10-24 | 1/8" x 1/16" | €30.42 | |
 |
40BS10 5/8 | 1.618" | 10 | 7/8" | 1 1/4" | 5/8" | 7/8" | 1/4"-20 | 3/16" x 3/32" | €30.42 | |
 |
40BS10 3/4 | 1.618" | 10 | 7/8" | 1 1/4" | 3/4" | 7/8" | 1/4"-20 | 3/16" x 3/32" | €30.42 | |
 |
40BS11 1/2 | 1.775" | 11 | 7/8" | 1 3/8" | 1/2" | 7/8" | #10-24 | 1/8" x 1/16" | €31.80 | |
 |
40BS11 5/8 | 1.775" | 11 | 7/8" | 1 3/8" | 5/8" | 7/8" | 1/4"-20 | 3/16" x 3/32" | €31.80 |
