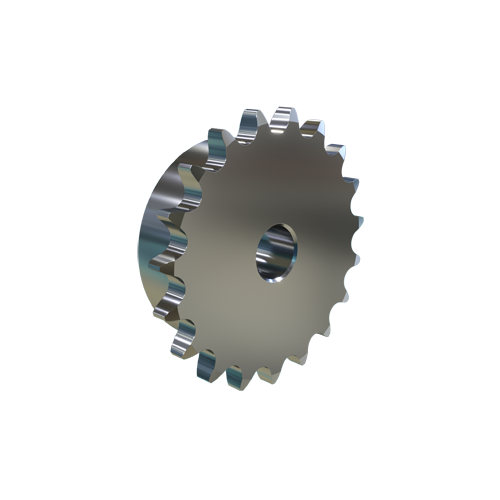

MARTIN SPROCKET 40B19SS Roller Chain Sprocket, 40 Chain, 19 Teeth, 3.038 Inch Pitch Dia., 3.292 Inch O.D., SS
3.292"
Get it by Friday, Feb 20
€267.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 5/8" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Diameter | 2 1/2" |
| Hub Outside Dia. | 2 1/2" |
| Individually Packaged | No |
| Length Through Bore | 1" |
| Length Thru Bore | 1" |
| Material | Stainless Steel |
| Max. Bore Size | 1 3/4" |
| Min. Bore Size | 5/8" |
| No. Of Teeth | 19 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 19 |
| Outside Dia. | 3.292" |
| Pitch | 1/2" |
| Pitch Dia. | 3.038" |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 1" |
| Storage Dimension Length | 3.457" |
| Storage Dimension Width | 3.457" |
Shipping Info:
| Ship weight (kg) | 0.65 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.36 |
| Ship width (cm) | 8.36 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | For Chain Pitch | For Chain Number | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
40B12 | 12 | 1.9319" | 2.166" | 7/8" | - | 1/2" | 40 | Finished Bore | €29.88 | |
 |
40B13 | 13 | 2.0893" | 2.329" | 7/8" | - | 1/2" | 40 | Finished Bore | €30.42 | |
 |
40B14 | 14 | 2.247" | 2.491" | 7/8" | 1/4"-20 | 1/2" | 40 | Finished Bore | €30.42 | |
 |
40B19 | 19 | 3.0378" | 3.296" | 1" | 1/4"-20 | 1/2" | 40 | Finished Bore | €45.21 | |
 |
40B20 | 20 | 3.1962" | 3.457" | 1" | 1/4"-20 | 1/2" | 40 | Finished Bore | €51.81 | |
 |
40B21 | 21 | 3.3548" | 3.617" | 1" | - | 1/2" | 40 | Finished Bore | €57.27 | |
 |
40B22 | 22 | 3.5133" | 3.778" | 1" | - | 1/2" | 40 | Finished Bore | €62.77 |
