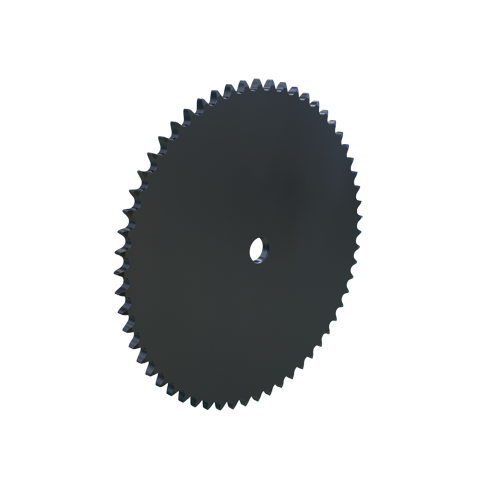

MARTIN SPROCKET 40A58 Sprocket, 40 Chain, 58 Teeth, 9.236 Inch Pitch Dia., 9.522 Inch O.D., Steel
Item: BA6KFDModel: 40A58
7 In Stock
9.522"
Ships within 2 days via
€84.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 23/32" |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Chain Size | #40 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 0.7188" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | A |
| Hub Dia. | 3 1/2" |
| Individually Packaged | No |
| Length Through Bore | 0.284" |
| Length Thru Bore | 0.265" |
| Material | Steel |
| Min. Bore Size | 0.7188" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 58 |
| Outside Dia. | 9.522" |
| Pitch | 1/2" |
| Pitch Dia. | 9.2355" , 9.236" |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 0.284" |
| Storage Dimension Length | 9.522" |
| Storage Dimension Width | 9.522" |
| Type | Stock Bore Type A |
Shipping Info:
| Ship weight (kg) | 2.3 |
| Ship height (cm) | 0.71 |
| Ship length (cm) | 24.18 |
| Ship width (cm) | 24.18 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Pitch Dia. | No. Of Teeth | Length Through Bore | Bore Dia. | Storage Dimension Length | Storage Dimension Width | Length Thru Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
40A12 | Steel | 1.932" | 12 | 0.284" | 1/2" | 2.166" | 2.166" | 0.265" | €33.41 | |
 |
40A13 | Steel | 2.089" | 13 | 0.284" | 1/2" | 2.328" | 2.328" | 0.265" | €33.99 | |
 |
40A14 | Steel | 2.247" | 14 | 0.284" | 1/2" | 2.49" | 2.49" | 0.265" | €35.37 | |
 |
40A15 | Steel | 2.405" | 15 | 0.284" | 5/8" | 2.652" | 2.652" | 0.265" | €35.91 | |
 |
40A16 | Steel | 2.563" | 16 | 0.284" | 5/8" | 2.814" | 2.814" | 0.265" | €35.91 | |
 |
40A17 | Steel | 2.721" | 17 | 0.284" | 5/8" | 2.974" | 2.974" | 0.265" | €37.25 | |
 |
40A18 | Steel | 2.879" | 18 | 0.284" | 5/8" | 3.136" | 3.136" | 0.265" | €37.25 |
