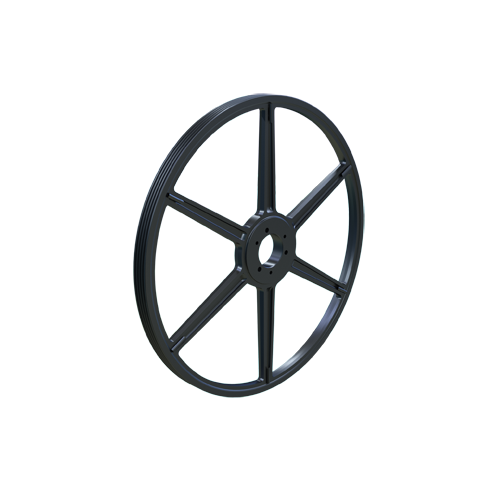

MARTIN SPROCKET 4 3V 3350 E Sheave, QD Bushing, 33.5 Inch Outside Dia., 4 Groove, 33.45 Inch Pitch Dia., Cast Iron
33.5"
Get it by Monday, Aug 31
€1,786.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| Bore Dia. | 1" to 2 7/8" |
| Bore Type | Bushed |
| Bushing Type | QD E |
| Face Width | 1 29/32" |
| Length | 2 5/8" |
| Material | Cast Iron |
| No. Of Grooves | 4 |
| Pitch Dia. | 33.45" |
| Suitable For Use With | 3V Cross Section Belt |
| Type | Type C Arm, Spoke |
Shipping Info:
| Ship weight (kg) | 42.75 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 85.09 |
| Ship width (cm) | 85.09 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Type | Face Width | Bore Dia. | Material | Pitch Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |

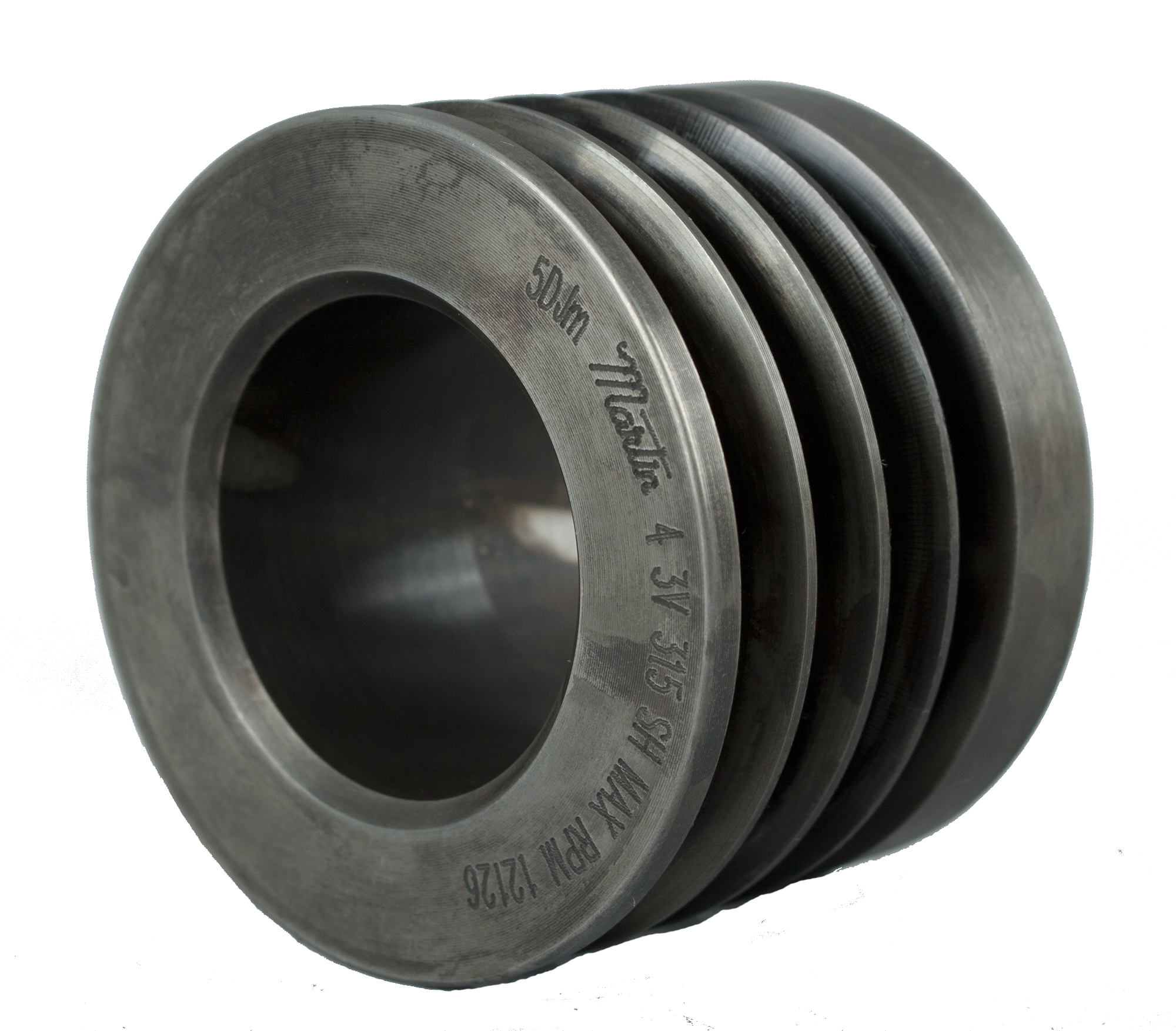

4 3V 265 JA | 2.65" | Solid Type D-1 | 1.906" | 3/8" to 1 1/4" | Steel | 2 3/5" | €95.96 | |
 |

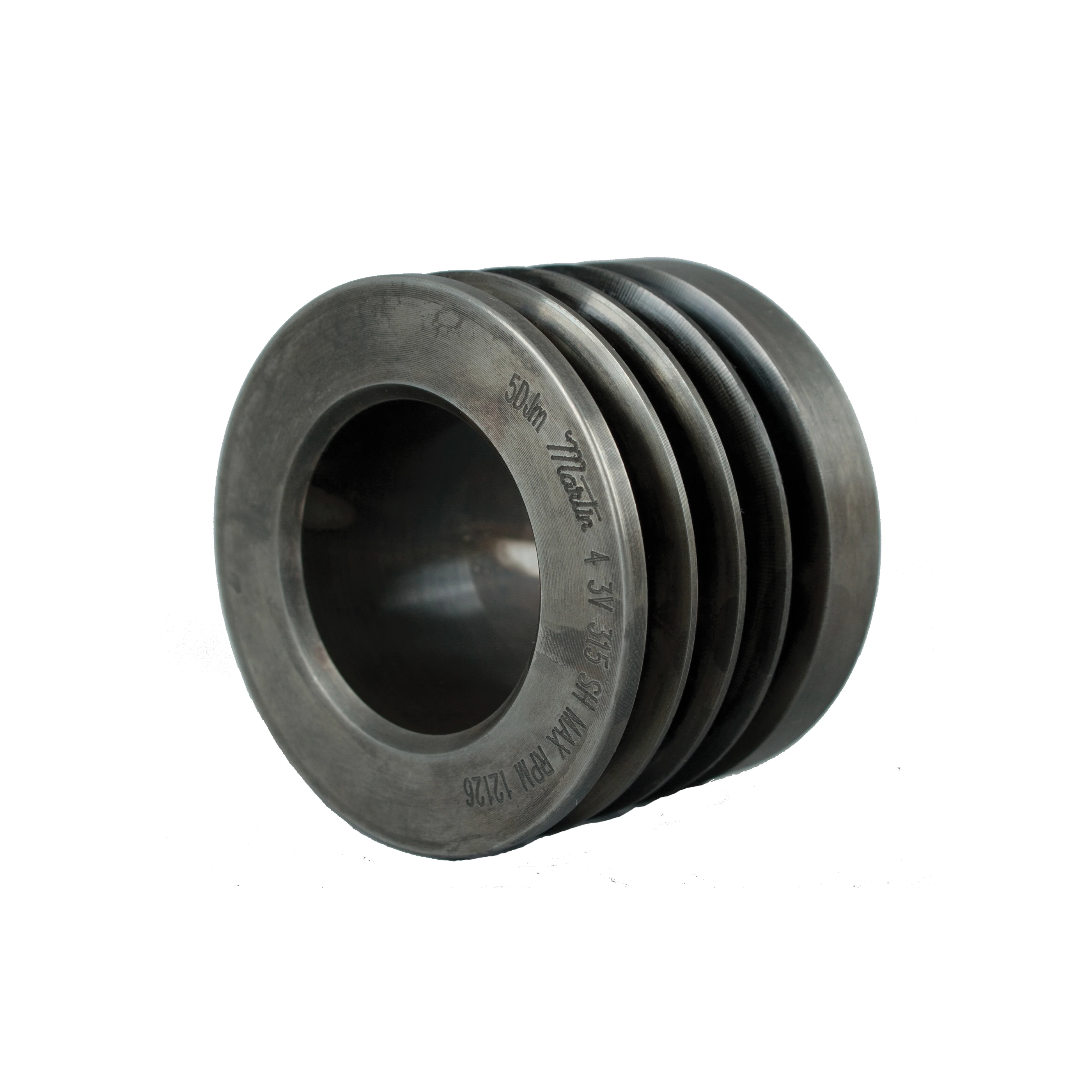

4 3V 280 JA | 2 4/5" | Solid Type D-1 | 1 29/32" | 1" | Steel | 2 3/4" | €97.74 | |
 |

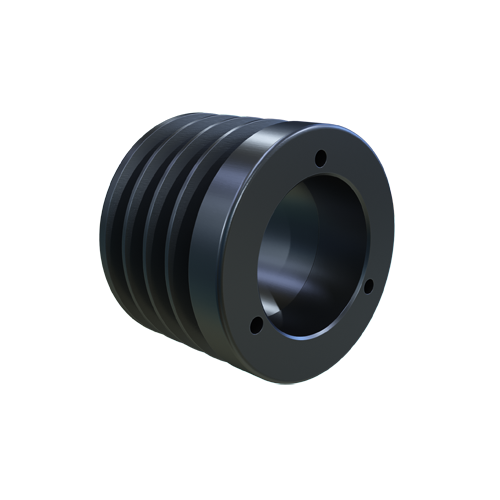

4 3V 300 SH | 3" | Solid Type E-1 | 1.906" | 0.5" to 1.688" | Steel | 2.95" | €98.18 | |
|
4 3V 315 SH | 3.15" | Solid Type E-1 | 1.906" | 0.5" to 1.688" | Steel | 3.1" | €99.50 | |
 |

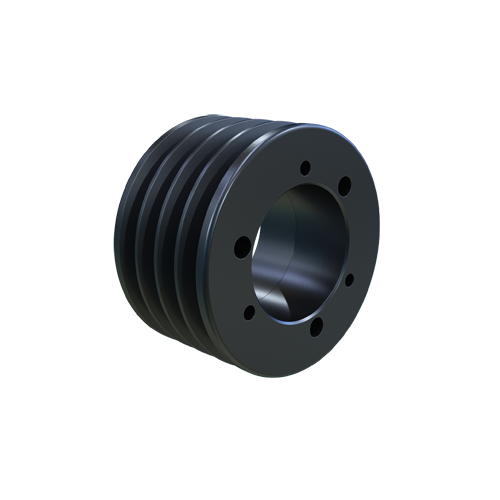

4 3V 335 SH | 3.35" | Solid Type D-1 | 1.906" | 0.5" to 1.688" | Steel | 3.3" | €103.06 | |
|
4 3V 365 SH | 3.65" | Solid Type D-1 | 1.906" | 0.5" to 1.688" | Steel | 3 3/5" | €107.50 | |
|
4 3V 412 SH | 4 3/25" | Solid Type A-1 | 1 29/32" | 1" to 1 3/8" | Steel | 4.07" | €112.39 |
