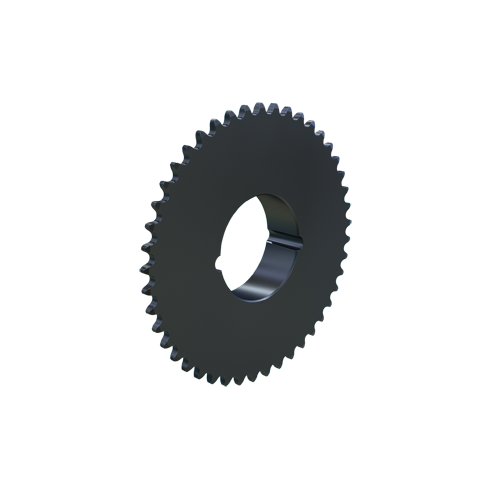

MARTIN SPROCKET 35BTB45 Sprocket, Taper, 35 Chain, 45 Teeth, 5.376 Inch Pitch Dia., 5.588 Inch O.D., Steel
Item: AJ9CPHModel: 35BTB45
7 In Stock
5.588"
Ships within 2 days via
€109.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | 1610 |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Construction | Welded |
| Construction Type | Welded |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | B |
| Hub Diameter | 3 1/4" |
| Hub Outside Dia. | 3 1/4" |
| Individually Packaged | No |
| Length Through Bore | 1" |
| Length Thru Bore | 1" |
| Material | Steel |
| Max. Bore Size | 1 5/8" |
| Min. Bore Size | 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 45 |
| Outside Dia. | 5.588" |
| Pitch | 3/8" |
| Pitch Dia. | 5.3758" |
| Pitch Diameter | 5.376" |
| Single Strand Tooth Thickness | 0.168" |
| Storage Dimension Height | 1" |
| Storage Dimension Length | 5.588" |
| Storage Dimension Width | 5.588" |
Shipping Info:
| Ship weight (kg) | 0.95 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 14.2 |
| Ship width (cm) | 14.2 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Bushing Type | For Chain Number | For Chain Pitch | Bore Type | Length Through Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
35BTB22 | 22 | 2.635" | 2.833" | TB 1210 | 35 | 3/8" | Bushed | 1" | €86.64 | |
 |
35BTB24 | 24 | 2.873" | 3.073" | 1210 Taper Lock | 35 | 3/8" | Bushed | 1" | €90.54 | |
 |
35BTB26 | 26 | 3.1111" | 3.313" | 1610 Taper Lock | 35 | 3/8" | Bushed | 1" | €89.58 | |
|
35BTB30 | 30 | 3.5875" | 3.793" | 1610 Taper Lock | 35 | 3/8" | Bushed | 1" | €93.57 | |
|
35BTB32 | 32 | 3.8259" | 4.032" | 1610 Taper Lock | 35 | 3/8" | Bushed | 1" | €96.25 | |
|
35BTB23 | 23 | 2.754" | 2.953" | TB 1210 | 35 | 3/8" | Bushed | 1" | €88.73 | |
|
35BTB35 | 35 | 4.1834" | 4.392" | 1610 Taper Lock | 35 | 3/8" | Bushed | 1" | €103.13 |
