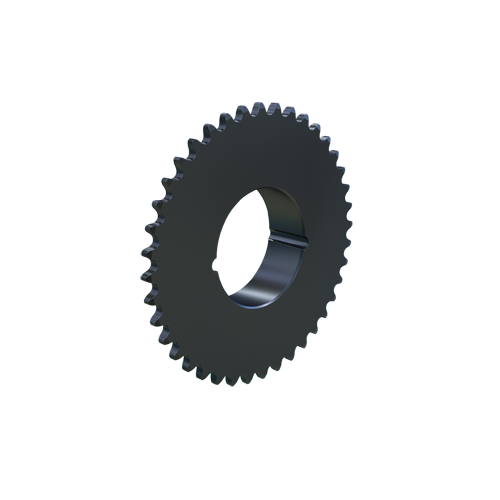

MARTIN SPROCKET 35BTB40 Sprocket, Taper, 35 Chain, 40 Teeth, 4.780 Inch Pitch Dia., 4.990 Inch O.D., Steel
Item: AJ9CPGModel: 35BTB40
7 In Stock
4.990"
Ships within 2 days via
€110.31 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | 1610 |
| Bushing Type | 1610 Taper Lock |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Chain Size | #35 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | B |
| Hub Dia. | 3 1/4" |
| Hub Outside Dia. | 3 1/4" |
| Individually Packaged | No |
| Length Through Bore | 1" |
| Length Thru Bore | 1" |
| Material | Steel |
| Max. Bore Size | 1 5/8" |
| Min. Bore Size | 1/2" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 40 |
| Outside Dia. | 4.99" |
| Pitch | 3/8" |
| Pitch Dia. | 4.7796" , 4.78" |
| Single Strand Tooth Thickness | 0.168" |
| Storage Dimension Height | 1" |
| Storage Dimension Length | 4.99" |
| Storage Dimension Width | 4.99" |
| Type | Taper Bushed Type B |
Shipping Info:
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 12.67 |
| Ship width (cm) | 12.67 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Hub Dia. | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Hub Outside Dia. | Max. Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
35BTB22 | 2.635" | 22 | 2 3/8" | 3 1/4" | 3 1/4" | 1.06" | 2 3/8" | 1 1/4" | €86.64 | |
 |
35BTB24 | 2.873" | 24 | 2.438" | 3 1/4" | 3 1/4" | 1.06" | 2 7/16" | 1 1/4" | €90.54 | |
 |
35BTB26 | 3.111" | 26 | 2 7/8" | 3 5/8" | 3 5/8" | 1.06" | 2 7/8" | 1 5/8" | €89.58 | |
|
35BTB30 | 3.588" | 30 | 3 1/8" | 4 5/16" | 4 5/16" | 1.06" | 3 1/8" | 1 5/8" | €93.57 | |
|
35BTB32 | 3.826" | 32 | 3 1/4" | 4 5/16" | 4 5/16" | 1.06" | 3 1/4" | 1 5/8" | €96.25 | |
|
35BTB23 | 2.754" | 23 | 2 3/8" | 3 1/4" | 3 1/4" | 1.06" | 2 7/16" | 1 1/4" | €88.73 | |
|
35BTB35 | 4.183" | 35 | 3 1/4" | 4 5/8" | 4 5/8" | 1.06" | 3 1/4" | 1 5/8" | €103.13 |
