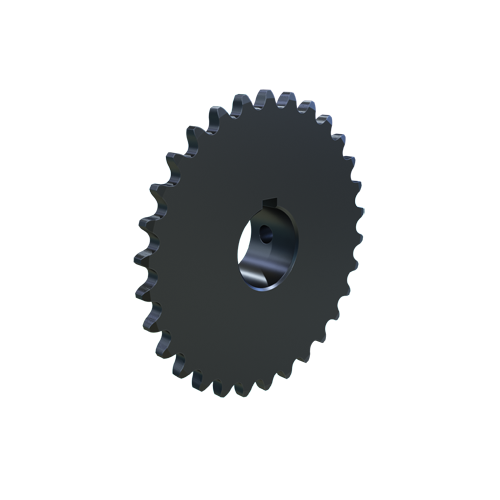

MARTIN SPROCKET 35BS30HT 1 Roller Chain Sprocket, 1 Inch Bore, 3.793 Inch Outside Dia. Steel, Hardened
Item: AJ9MDPModel: 35BS30HT 1
7 In Stock
3.793"
1"
Ships within 2 days via
€108.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 1" |
| Bore Size | 1" |
| Bore Type | Finished Bore |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1" |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Diameter | 2" |
| Hub Outside Dia. | 2" |
| Individually Packaged | Yes |
| Keyway Size | 1/4" x 1/8" |
| Length Through Bore | 7/8" |
| Length Thru Bore | 7/8" |
| Material | Steel |
| Max. Bore Size | 1 3/8" |
| Min. Bore Size | 1/2" |
| No. Of Teeth | 30 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 30 |
| Outside Dia. | 3.793" |
| Pitch | 3/8" |
| Pitch Dia. | 3.5875" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.168" |
| Storage Dimension Height | 15/16" |
| Storage Dimension Length | 3 7/8" |
| Storage Dimension Width | 3 7/8" |
Shipping Info:
| Ship weight (kg) | 0.39 |
| Ship height (cm) | 2.38 |
| Ship length (cm) | 9.63 |
| Ship width (cm) | 9.63 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | Bore Size | For Chain Number | For Chain Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
35BS10HT 1/2 | 10 | 1.2135" | 1.379" | 3/4" | #10-24 | 1/2" | 35 | 3/8" | €40.32 | |
 |
35BS10HT 5/8 | 10 | 1.2135" | 1.379" | 3/4" | 1/4"-20 | 5/8" | 35 | 3/8" | €40.32 | |
 |
35BS11HT 5/8 | 11 | 1.331" | 1.502" | 3/4" | 1/4"-20 | 5/8" | 35 | 3/8" | €42.57 | |
 |
35BS12HT 1/2 | 12 | 1.4489" | 1 5/8" | 3/4" | #10-24 | 1/2" | 35 | 3/8" | €44.25 | |
 |
35BS12HT 5/8 | 12 | 1.4489" | 1 5/8" | 3/4" | 1/4"-20 | 5/8" | 35 | 3/8" | €44.25 | |
|
35BS12HT 3/4 | 12 | 1.4489" | 1 5/8" | 3/4" | 1/4"-20 | 3/4" | 35 | 3/8" | €44.25 | |
 |
35BS13HT 5/8 | 13 | 1.567" | 1.746" | 3/4" | 1/4"-20 | 5/8" | 35 | 3/8" | €46.53 |
