MARTIN SPROCKET Bored To Size Type Roller Chain Sprockets, Hardened Teeth, 35 Chain Number
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1| Style | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Hub Dia. | Length Through Bore | Set Screw Size | Bore Size | For Chain Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 35BS23HT 1 | 1" | 2.754" | 2.953" | 2" | 7/8" | 5/16"-18 | 1" | 35 | €85.44 | |
| B | 35BS22HT 1 | 1" | 2.635" | 2.833" | 2" | 7/8" | 5/16"-18 | 1" | 35 | €80.91 | |
| C | 35BS28HT 1 | 1" | 3.3493" | 3.553" | 2" | 7/8" | 5/16"-18 | 1" | 35 | €103.38 | |

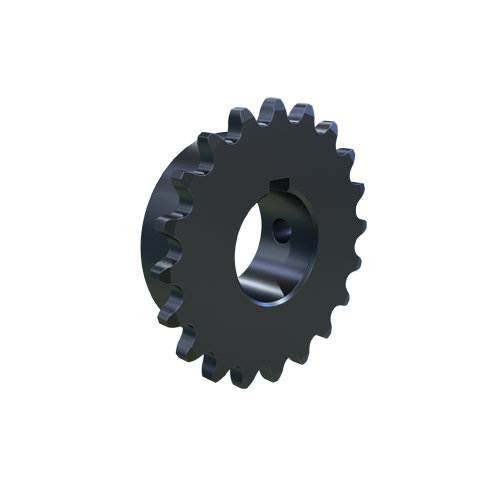

| D | 35BS20HT 1 | 1" | 2.397" | 2.593" | 1.938" | 3/4" | 5/16"-18 | 1" | 35 | €69.37 | |
| E | 35BS19HT 1 | 1" | 2.2783" | 2.472" | 1.8438" | 3/4" | 5/16"-18 | 1" | 35 | €63.14 | |
| F | 35BS24HT 1 | 1" | 2.873" | 3.073" | 2" | 7/8" | 5/16"-18 | 1" | 35 | €91.35 | |
| G | 35BS18HT 1 | 1" | 2 4/25" | 2.352" | 1.719" | 3/4" | 5/16"-18 | 1" | 35 | €57.50 | |
| H | 35BS30HT 1 | 1" | 3.5875" | 3.793" | 2" | 7/8" | 5/16"-18 | 1" | 35 | €108.78 | |
| I | 35BS17HT 1 | 1" | 2.0408" | 2.231" | 1.5938" | 3/4" | 5/16"-18 | 1" | 35 | €54.70 | |
| J | 35BS15HT 1 | 1" | 1.804" | 1.989" | 1.344" | 3/4" | 5/16"-18 | 1" | 35 | €49.35 | |

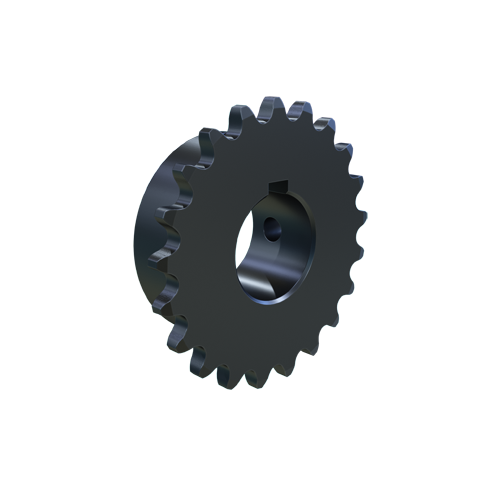

| K | 35BS21HT 1 | 1" | 2.516" | 2.713" | 2" | 7/8" | 5/16"-18 | 1" | 35 | €75.27 | |
| L | 35BS16HT 1 | 1" | 1.922" | 2.11" | 1.469" | 3/4" | 5/16"-18 | 1" | 35 | €52.44 | |
| M | 35BS25HT 1 | 1" | 2.992" | 3.193" | 2" | 7/8" | 5/16"-18 | 1" | 35 | €91.97 | |

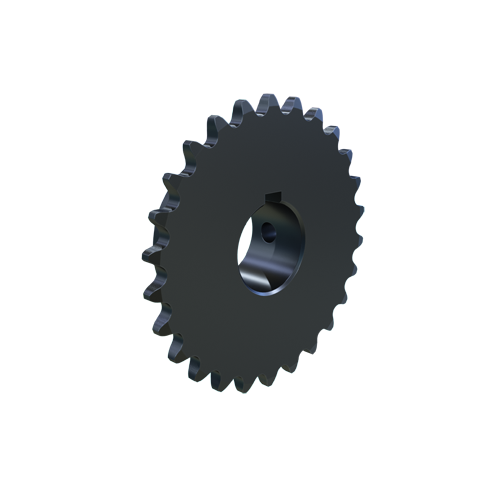

| N | 35BS26HT 1 | 1" | 3.111" | 3.313" | 2" | 7/8" | 5/16"-18 | 1" | 35 | €98.92 | |
| O | 35BS14HT 1/2 | 1/2" | 1.6852" | 1.868" | 1 1/4" | 3/4" | #10-24 | 1/2" | 35 | €47.64 | |
| P | 35BS18HT 1/2 | 1/2" | 2 4/25" | 2.352" | 1.719" | 3/4" | #10-24 | 1/2" | 35 | €57.50 | |
| O | 35BS13HT 1/2 | 1/2" | 1.567" | 1.746" | 1 1/4" | 3/4" | #10-24 | 1/2" | 35 | €46.53 | |

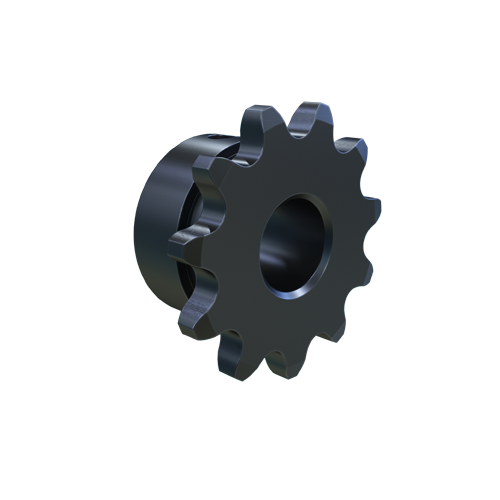

| Q | 35BS11HT 1/2 | 1/2" | 1.331" | 1.502" | 1.063" | 3/4" | #10-24 | 1/2" | 35 | €42.57 | |

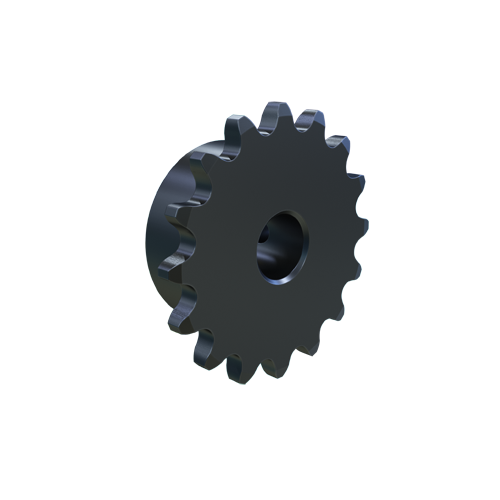

| R | 35BS16HT 1/2 | 1/2" | 1.922" | 2.11" | 1.469" | 3/4" | #10-24 | 1/2" | 35 | €52.44 | |
| S | 35BS12HT 1/2 | 1/2" | 1.4489" | 1 5/8" | 1.219" | 3/4" | #10-24 | 1/2" | 35 | €44.25 | |
| T | 35BS15HT 1/2 | 1/2" | 1.804" | 1.989" | 1.344" | 3/4" | #10-24 | 1/2" | 35 | €49.35 | |
| O | 35BS10HT 1/2 | 1/2" | 1.2135" | 1.379" | 0.9688" | 3/4" | #10-24 | 1/2" | 35 | €40.32 | |
| O | 35BS17HT 1/2 | 1/2" | 2.0408" | 2.231" | 1.5938" | 3/4" | #10-24 | 1/2" | 35 | €54.70 | |

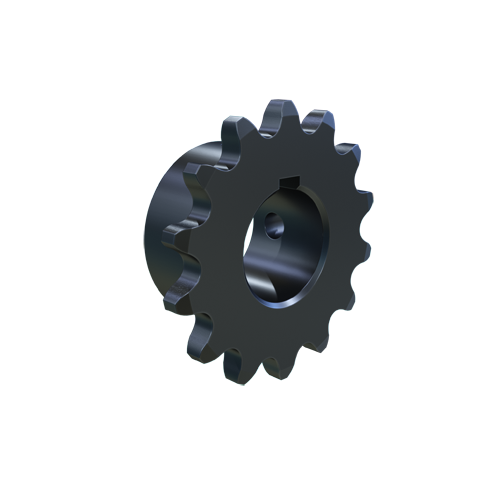

| U | 35BS14HT 3/4 | 3/4" | 1.685" | 1.868" | 1 1/4" | 3/4" | 1/4"-20 | 3/4" | 35 | €47.64 | |
| V | 35BS15HT 3/4 | 3/4" | 1.804" | 1.989" | 1.344" | 3/4" | 1/4"-20 | 3/4" | 35 | €49.35 | |

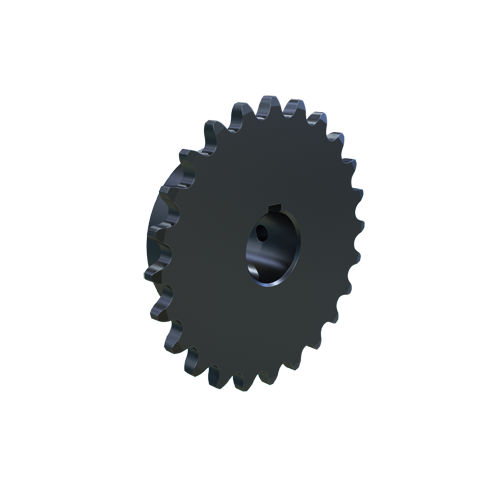

| W | 35BS24HT 3/4 | 3/4" | 2.873" | 3.073" | 2" | 7/8" | 1/4"-20 | 3/4" | 35 | €91.35 | |
| I | 35BS13HT 3/4 | 3/4" | 1.567" | 1.746" | 1 1/4" | 3/4" | 1/4"-20 | 3/4" | 35 | €46.53 | |
| X | 35BS21HT 3/4 | 3/4" | 2.516" | 2.713" | 2" | 7/8" | 1/4"-20 | 3/4" | 35 | €75.27 | |
| Y | 35BS19HT 3/4 | 3/4" | 2.2783" | 2.472" | 1.844" | 3/4" | 1/4"-20 | 3/4" | 35 | €63.14 | |
| Z | 35BS22HT 3/4 | 3/4" | 2.635" | 2.833" | 2" | 7/8" | 1/4"-20 | 3/4" | 35 | €80.91 | |
| F | 35BS23HT 3/4 | 3/4" | 2.754" | 2.953" | 2" | 7/8" | 1/4"-20 | 3/4" | 35 | €85.44 | |
| I | 35BS17HT 3/4 | 3/4" | 2.0408" | 2.231" | 1.5938" | 3/4" | 1/4"-20 | 3/4" | 35 | €54.70 | |
| I | 35BS12HT 3/4 | 3/4" | 1.4489" | 1 5/8" | 1.2188" | 3/4" | 1/4"-20 | 3/4" | 35 | €44.25 | |
| F | 35BS20HT 3/4 | 3/4" | 2.3972" | 2.593" | 1 15/16" | 3/4" | 1/4"-20 | 3/4" | 35 | €69.37 | |
| A1 | 35BS26HT 3/4 | 3/4" | 3.1111" | 3.313" | 2" | 7/8" | 1/4"-20 | 3/4" | 35 | €98.92 | |
| B1 | 35BS16HT 3/4 | 3/4" | 1.922" | 2.11" | 1.469" | 3/4" | 1/4"-20 | 3/4" | 35 | €52.44 | |
| C1 | 35BS18HT 3/4 | 3/4" | 2 4/25" | 2.352" | 1.719" | 3/4" | 1/4"-20 | 3/4" | 35 | €57.50 | |
| F | 35BS25HT 3/4 | 3/4" | 2.992" | 3.193" | 2" | 7/8" | 1/4"-20 | 3/4" | 35 | €91.97 | |
| I | 35BS11HT 3/4 | 3/4" | 1.331" | 1.502" | 1 1/16" | 3/4" | 1/4"-20 | 3/4" | 35 | €42.57 | |
| D1 | 35BS30HT 3/4 | 3/4" | 3.588" | 3.793" | 2" | 7/8" | 1/4"-20 | 3/4" | 35 | €108.78 | |
| E1 | 35BS28HT 3/4 | 3/4" | 3.3493" | 3.553" | 2" | 7/8" | 1/4"-20 | 3/4" | 35 | €103.38 | |
| I | 35BS9HT 3/8 | 3/8" | 1.0964" | 1.255" | 0.8438" | 3/4" | #10-24 | 3/8" | 35 | €38.07 | |

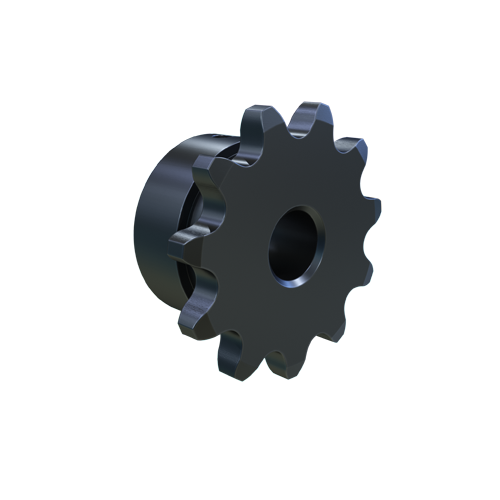

| F1 | 35BS11HT 3/8 | 3/8" | 1.331" | 1.502" | 1 1/16" | 3/4" | #10-24 | 3/8" | 35 | €42.57 | |

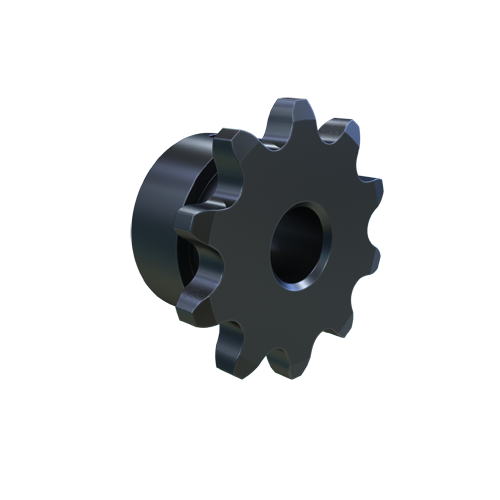

| G1 | 35BS10HT 3/8 | 3/8" | 1.214" | 1.379" | 0.969" | 3/4" | #10-24 | 3/8" | 35 | €40.32 | |
| F | 35BS28HT 5/8 | 5/8" | 3.3493" | 3.553" | 2" | 7/8" | 1/4"-20 | 5/8" | 35 | €103.38 | |
| I | 35BS11HT 5/8 | 5/8" | 1.331" | 1.502" | 1 1/16" | 3/4" | 1/4"-20 | 5/8" | 35 | €42.57 | |
| H1 | 35BS15HT 5/8 | 5/8" | 1.804" | 1.989" | 1.344" | 3/4" | 1/4"-20 | 5/8" | 35 | €49.35 | |
| F | 35BS23HT 5/8 | 5/8" | 2.754" | 2.953" | 2" | 7/8" | 1/4"-20 | 5/8" | 35 | €85.44 | |
| F | 35BS22HT 5/8 | 5/8" | 2.635" | 2.833" | 2" | 7/8" | 1/4"-20 | 5/8" | 35 | €80.91 | |
| I1 | 35BS13HT 5/8 | 5/8" | 1.567" | 1.746" | 1 1/4" | 3/4" | 1/4"-20 | 5/8" | 35 | €46.53 | |
| J1 | 35BS25HT 5/8 | 5/8" | 2.992" | 3.193" | 2" | 7/8" | 1/4"-20 | 5/8" | 35 | €91.97 | |
| K1 | 35BS21HT 5/8 | 5/8" | 2.516" | 2.713" | 2" | 7/8" | 1/4"-20 | 5/8" | 35 | €75.27 | |

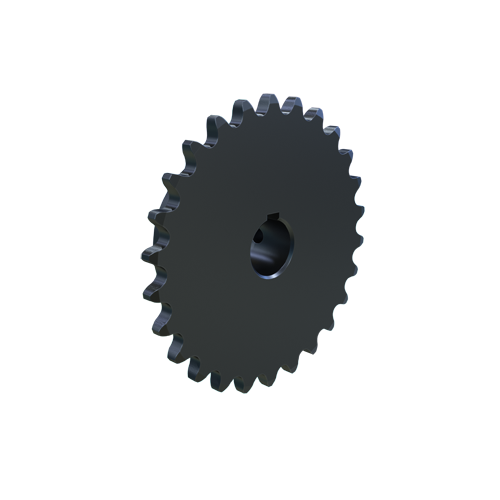

| L1 | 35BS26HT 5/8 | 5/8" | 3.1111" | 3.313" | 2" | 7/8" | 1/4"-20 | 5/8" | 35 | €98.92 | |
| I | 35BS18HT 5/8 | 5/8" | 2.1595" | 2.352" | 1.7188" | 3/4" | 1/4"-20 | 5/8" | 35 | €57.50 | |
| M1 | 35BS16HT 5/8 | 5/8" | 1.922" | 2.11" | 1.469" | 3/4" | 1/4"-20 | 5/8" | 35 | €52.44 | |

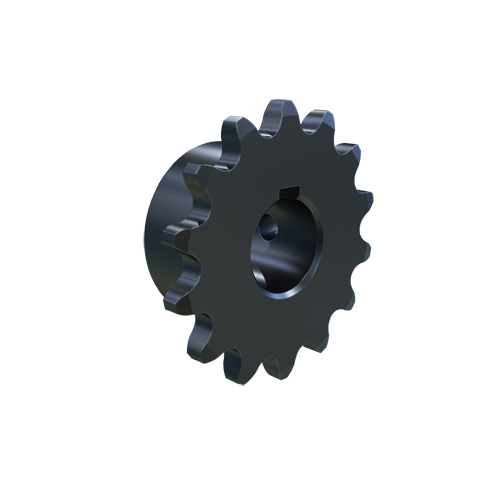

| N1 | 35BS14HT 5/8 | 5/8" | 1.685" | 1.868" | 1 1/4" | 3/4" | 1/4"-20 | 5/8" | 35 | €47.64 | |
| O1 | 35BS10HT 5/8 | 5/8" | 1.214" | 1.379" | 0.969" | 3/4" | 1/4"-20 | 5/8" | 35 | €40.32 | |
| P1 | 35BS12HT 5/8 | 5/8" | 1.4489" | 1 5/8" | 1.219" | 3/4" | 1/4"-20 | 5/8" | 35 | €44.25 | |
| Q1 | 35BS17HT 5/8 | 5/8" | 2.041" | 2.231" | 1.594" | 3/4" | 1/4"-20 | 5/8" | 35 | €54.70 | |

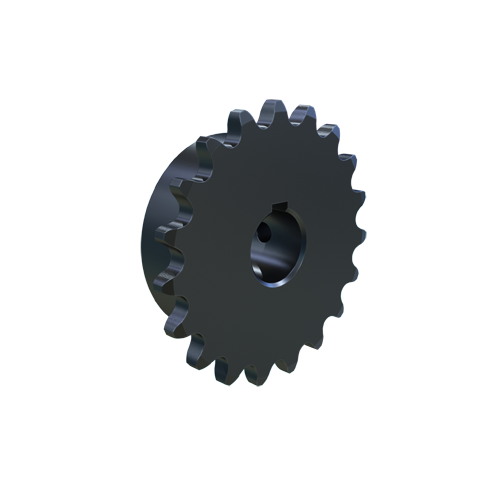

| R1 | 35BS19HT 5/8 | 5/8" | 2.2783" | 2.472" | 1.844" | 3/4" | 1/4"-20 | 5/8" | 35 | €63.14 | |
| S1 | 35BS20HT 5/8 | 5/8" | 2.397" | 2.593" | 1.938" | 3/4" | 1/4"-20 | 5/8" | 35 | €69.37 |
