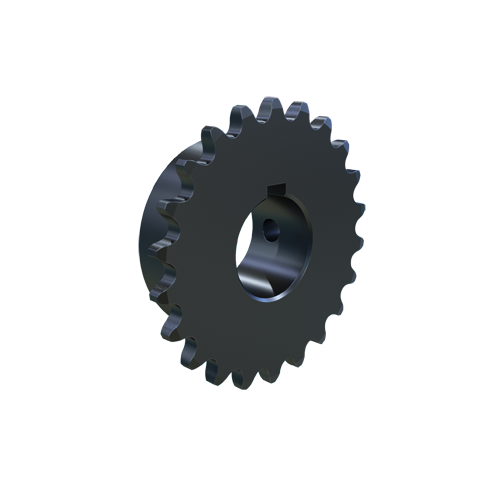

MARTIN SPROCKET 35BS22HT 1 Roller Chain Sprocket, 1 Inch Bore, 2.833 Inch Outside Dia. Steel, Hardened
Item: AJ9MDBModel: 35BS22HT 1
7 In Stock
2.833"
1"
Ships within 2 days via
€80.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1" |
| Bore Size | 1" |
| Bore Type | Finished Bore |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Chain Size | #35 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1" |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Dia. | 2" |
| Hub Outside Dia. | 2" |
| Individually Packaged | Yes |
| Key Way Size | 1/4" x 1/8" |
| Length Through Bore | 7/8" |
| Length Thru Bore | 7/8" |
| Material | Steel |
| Max. Bore Size | 1 3/8" |
| Min. Bore Size | 1/2" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 22 |
| Pitch | 3/8" |
| Pitch Dia. | 2.635" |
| Screw Size | 0.313"-18 x 0.313" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.168" |
| Storage Dimension Height | 15/16" |
| Storage Dimension Length | 3 1/4" |
| Storage Dimension Width | 3 1/4" |
| Type | Bored to Size Type BS |
Shipping Info:
| Ship weight (kg) | 0.31 |
| Ship height (cm) | 2.38 |
| Ship length (cm) | 7.19 |
| Ship width (cm) | 7.19 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Storage Dimension Length | Storage Dimension Height | Length Thru Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

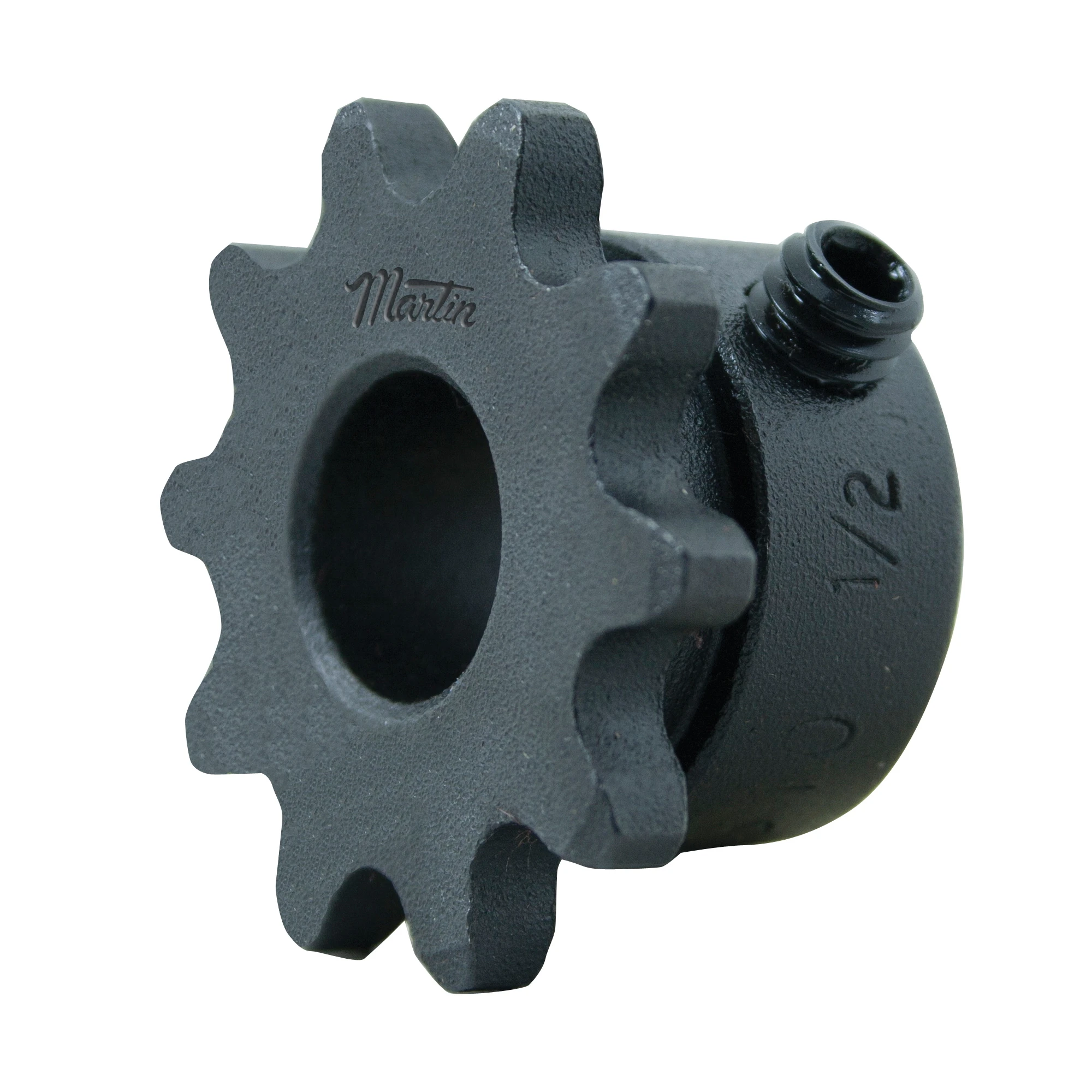

35BS10HT 1/2 | 1.2135" | 10 | 3/4" | 0.9688" | 1/2" | 1 1/2" | 13/16" | 3/4" | €40.32 | |
 |

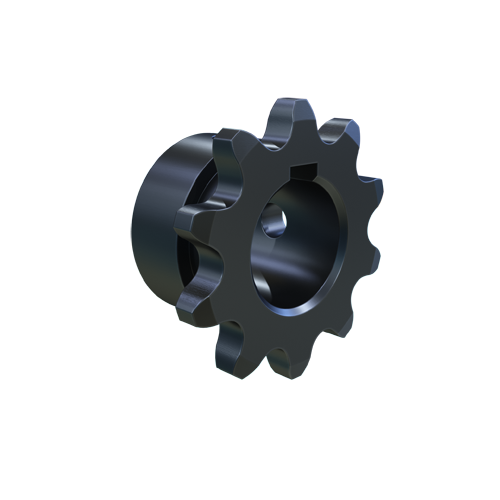

35BS10HT 5/8 | 1.214" | 10 | 3/4" | 0.969" | 5/8" | 1 1/2" | 13/16" | 3/4" | €40.32 | |
 |

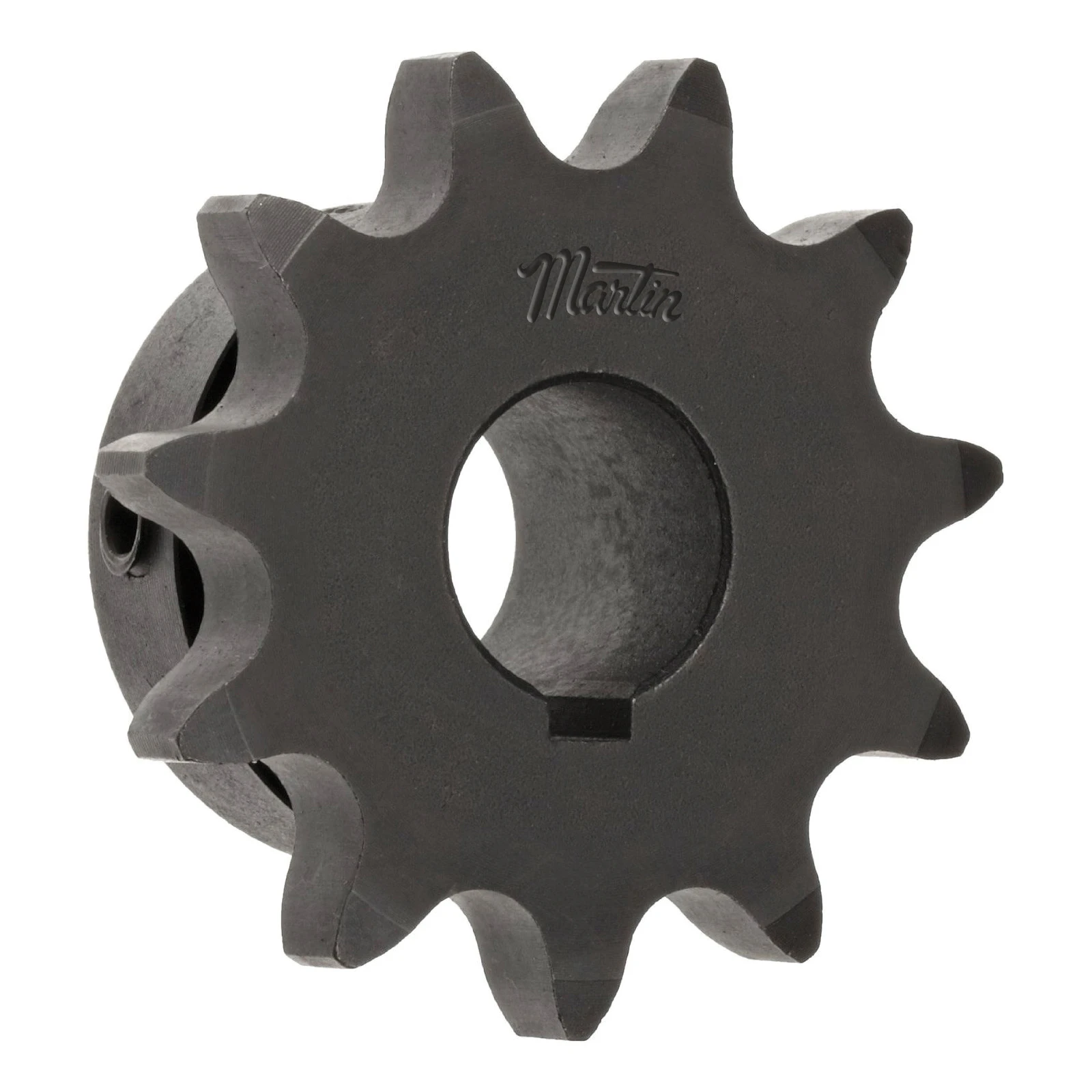

35BS11HT 5/8 | 1.331" | 11 | 3/4" | 1 1/16" | 5/8" | 1 15/16" | 13/16" | 3/4" | €42.57 | |
 |

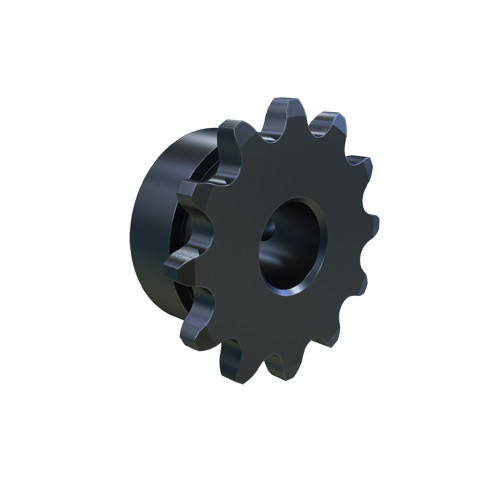

35BS12HT 1/2 | 1.449" | 12 | 3/4" | 1.219" | 1/2" | 1 15/16" | 13/16" | 3/4" | €44.25 | |
 |
35BS12HT 5/8 | 1.449" | 12 | 3/4" | 1.219" | 5/8" | 1 15/16" | 13/16" | 3/4" | €44.25 | |
|
35BS12HT 3/4 | 1.4489" | 12 | 3/4" | 1.2188" | 3/4" | 1 15/16" | 13/16" | 3/4" | €44.25 | |
 |

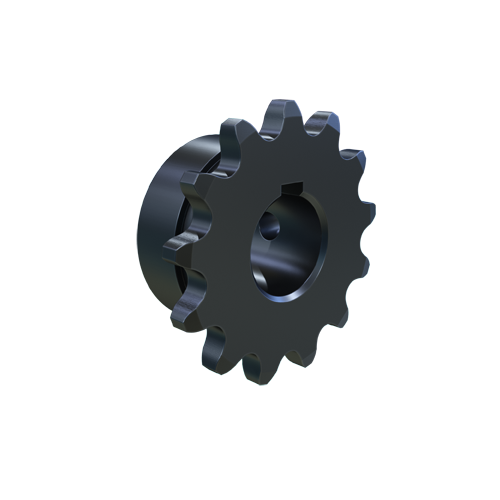

35BS13HT 5/8 | 1.567" | 13 | 3/4" | 1 1/4" | 5/8" | 1 15/16" | 13/16" | 3/4" | €46.53 |
