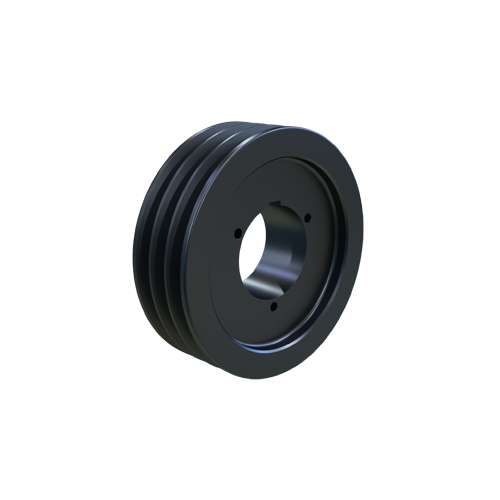

MARTIN SPROCKET 3 5V 750 Q Sheave, MST Bushing, 7.5 Inch Outside Dia., 3 Groove, 7.4 Inch Pitch Dia., Cast Iron
7.5"
Get it by Tuesday, Sep 1
€450.39 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| Belt Cross Section | 5V |
| Bushing Size | Q1 |
| Bushing Style | Mst |
| Face Width | 2 3/8" |
| Material | Cast Iron |
| Max. Bore Size | 2.688" |
| Min. Bore Size | 3/4" |
| No. Of Grooves | 3 |
| Outside Dia. | 7 1/2" |
| Pitch Dia. | 7 2/5" |
| Sheave Construction | Web |
Shipping Info:
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 6.03 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 19.05 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Type | Material | Pitch Dia. | Bore Dia. | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
3 5V 1090 R | 10.9" | - | Cast Iron | 10 4/5" | - | 2 3/8" | €463.81 | |
 |
3 5V 1250 R | 12 1/2" | - | Cast Iron | 12 2/5" | - | 2 3/8" | €673.10 | |
 |
3 5V 1500 R | 15" | - | Cast Iron | 14.9" | - | 2 3/8" | €894.56 | |
 |
3 5V 2800 R | 28" | - | Cast Iron | 27.9" | - | 2 3/8" | €1,713.01 | |
 |
3 5V 3750 S | 37 1/2" | - | Cast Iron | 37.4" | - | 2 3/8" | €3,635.29 | |
 |
3 5V 460 Q | 4 3/5" | - | Steel | 4 1/2" | - | 2 3/8" | €244.24 | |
 |
3 5V 590 Q | 5.9" | Type J Solid | Steel | 5 4/5" | 0.75" to 2.688" | 2 3/8" | €318.06 |
