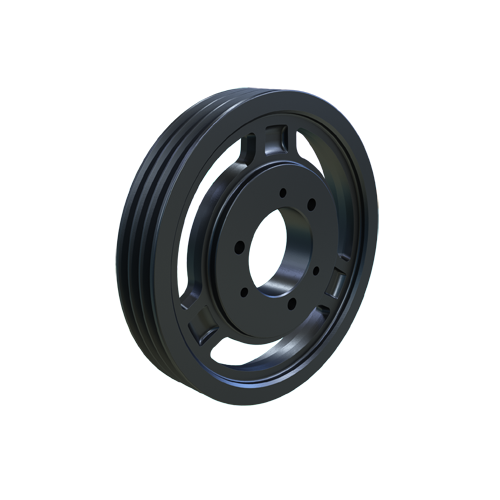

MARTIN SPROCKET 3 5V 1320 E Sheave, QD Bushing, 13.2 Inch Outside Dia., 3 Groove, 13.1 Inch Pitch Dia., Cast Iron
13.2"
Get it by Monday, Aug 24
€484.25 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| Bore Dia. | 7/8" to 8 7/8" |
| Bore Type | QD Bushed |
| Bushing Type | E |
| Face Width | 2 3/8" |
| Length | 2.81" |
| Material | Cast Iron |
| No. Of Grooves | 3 |
| Outside Dia. | 13 1/5" |
| Pitch Dia. | 13.1" |
| Product Datasheet | martin-sprocket-1-3v-1060-sds.pdf |
| Suitable For Use With | 5V Cross Section V Belts |
| Type | Arm, Spoke Type C-3 |
Shipping Info:
| Ship weight (kg) | 16.16 |
| Ship height (cm) | 7.14 |
| Ship length (cm) | 33.53 |
| Ship width (cm) | 33.53 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Outside Dia. | Type | Pitch Dia. | Bore Dia. | Face Width | Material | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
3 5V 710 SF | 7.1" | Solid Type A-1 | 7" | 0.5" to 2.938" | 2 3/8" | Cast Iron | - | €286.99 | |
 |
3 5V 750 SF | 7 1/2" | Solid Type A-1 | 7 2/5" | 0.5" to 2.938" | 2 3/8" | Cast Iron | - | €293.23 | |
 |
3 5V 800 SF | 8" | Solid Type A-1 | 7.9" | 0.5" to 2.938" | 2 3/8" | Cast Iron | - | €315.41 | |
 |
3 5V 850 SF | 8 1/2" | Type A-1 Web | 8 2/5" | 0.5" to 2.938" | 2 3/8" | Cast Iron | - | €324.31 | |
 |
3 5V 900 SF | 9" | Type A-2 Web | 8.9" | 0.5" to 2.938" | 2 3/8" | Cast Iron | - | €333.20 | |
 |
3 5V 925 SF | 9" | Type A-2 Web | 8.9" | 0.5" to 2.938" | 2 3/8" | Cast Iron | - | €346.51 | |
 |
3 5V 975 SF | 9 3/4" | Type A-2 Web | 9.65" | 0.5" to 2.938" | 2 3/8" | Cast Iron | - | €359.86 |
