MARTIN SPROCKET 5V Series Hi-Cap Wedge Stock 3 Groove QD Sheaves
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1| Style | Model | Outside Dia. | Type | Pitch Dia. | Face Width | Material | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|
| A | 3 5V 440 SDS | 4 2/5" | Solid Type E-1 | 4.3" | 2 3/8" | Cast Iron | - | €175.49 | |
| B | 3 5V 490 SDS | 4.9" | Solid Type A-1 | 4 4/5" | 2 3/8" | Cast Iron | - | €202.13 | |
| C | 3 5V 465 SDS | 4.65" | Solid Type E-1 | 4.55" | 2 3/8" | Cast Iron | - | €188.80 | |
| D | 3 5V 550 SDS | 5 1/2" | Solid Type A-1 | 5 2/5" | 2 3/8" | Cast Iron | - | €228.79 | |
| C | 3 5V 520 SDS | 5 1/5" | Solid Type A-1 | 5.1" | 2 3/8" | Cast Iron | - | €215.46 | |
| C | 3 5V 590 SDS | 5.9" | Solid Type A-1 | 5 4/5" | 2 3/8" | Cast Iron | - | €242.12 | |
| E | 3 5V 630 SK | 6.3" | Solid Type A-1 | 6 1/5" | 2 3/8" | Cast Iron | - | €255.46 | |
| F | 3 5V 670 SK | 6.7" | Solid Type A-1 | 6 3/5" | 2 3/8" | Cast Iron | - | €268.79 | |
| G | 3 5V 750 SF | 7 1/2" | Solid Type A-1 | 7 2/5" | 2 3/8" | Cast Iron | - | €293.23 | |
| H | 3 5V 710 SF | 7.1" | Solid Type A-1 | - | 2 3/8" | Cast Iron | - | €286.99 | |
| I | 3 5V 850 SF | 8 1/2" | Type A-1 Web | 8 2/5" | 2 3/8" | Cast Iron | - | €324.31 | |
| J | 3 5V 800 SF | 8" | Solid Type A-1 | 7.9" | 2 3/8" | Cast Iron | - | €315.41 | |
| K | 3 5V 925 SF | 9 1/4" | Type A-2 Web | 8.9" | 2 3/8" | Cast Iron | - | €346.51 | |
| L | 3 5V 975 SF | 9 3/4" | Type A-2 Web | 9.65" | 2 3/8" | Cast Iron | - | €359.86 | |
| M | 3 5V 900 SF | 9" | Type A-2 Web | 8.9" | 2 3/8" | Cast Iron | - | €333.20 | |
| N | 3 5V 1030 SF | 10.3" | Type A-2 Web | 10 1/5" | 2 3/8" | Cast Iron | - | €382.07 | |
| O | 3 5V 1090 SF | 10.9" | Type A-2 Web | 10 4/5" | 2 3/8" | Cast Iron | - | €390.94 | |
| P | 3 5V 1180 SF | 11 4/5" | Type A-2 Web | 11.7" | 2 3/8" | Cast Iron | - | €430.94 | |
| Q | 3 5V 1130 SF | 11.3" | Type A-2 Web | 11 1/5" | 2 3/8" | Cast Iron | - | €399.83 | |
| R | 3 5V 1250 E | 12 1/2" | Arm, Spoke Type C-2 | 12 2/5" | 2 3/8" | Cast Iron | - | €444.27 | |
| S | 3 5V 1320 E | 13 1/5" | Arm, Spoke Type C-3 | 13.1" | 2 3/8" | Cast Iron | - | €484.25 | |
| T | 3 5V 1400 E | 14" | Arm, Spoke Type C-3 | 13.9" | 2 3/8" | Cast Iron | - | €581.98 | |
| U | 3 5V 1500 E | 15" | Arm, Spoke Type C-3 | 14.9" | 2 3/8" | Cast Iron | - | €608.64 | |
| V | 3 5V 1600 E | 16" | Arm, Spoke Type C-3 | 15.9" | 2 3/8" | Cast Iron | - | €630.86 | |
| W | 3 5V 1870 E | 18.7" | Type C Arm, Spoke | 18 3/5" | 2 3/8" | Cast Iron | - | €728.58 | |
| X | 3 5V 2120 E | 21.2" | Arm, Spoke Type C-3 | 21.1" | 2 3/8" | Cast Iron | - | €977.37 | |
| Y | 3 5V 2360 E | 23.6" | Arm, Spoke Type C-3 | 23 1/2" | 2 3/8" | Cast Iron | - | €1,110.65 | |
| Z | 3 5V 2800 E | 28" | Arm, Spoke Type C-3 | 27.9" | 2 3/8" | Cast Iron | - | €1,221.73 | |
| A1 | 3 5V 3150 F | 31 1/2" | Arm, Spoke Type C-3 | 31 2/5" | 2 3/8" | Cast Iron | - | €2,106.81 | |

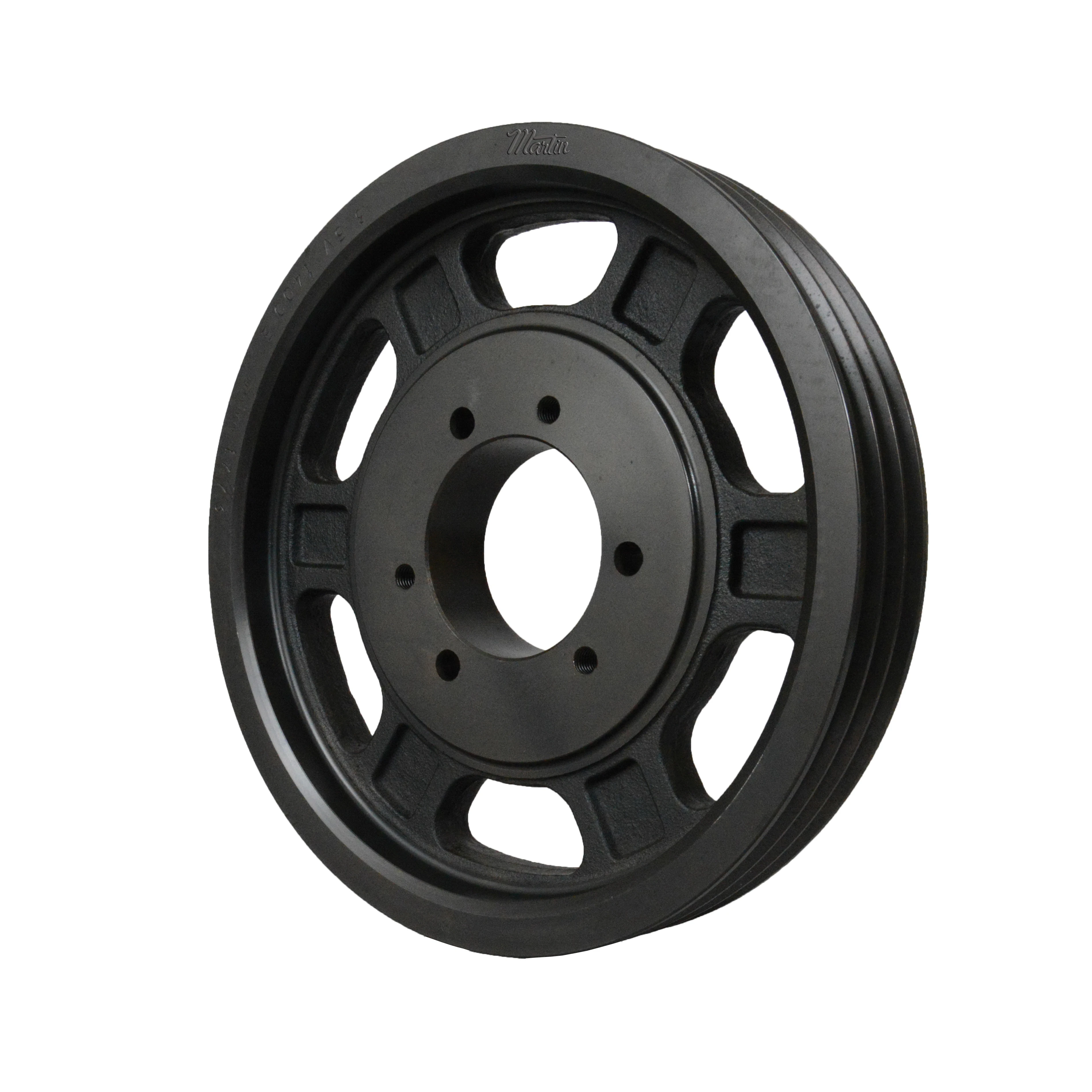

| B1 | 3 5V 3750 F | 37 1/2" | Arm, Spoke Type C-3 | 37 2/5" | 2 3/8" | Cast Iron | Gray | €2,702.21 | |
| C1 | 3 5V 5000 F | 50" | Type C Arm, Spoke | 49.9" | 2 3/8" | Cast Iron | - | €4,076.22 |
5V Series Hi-Cap Wedge Stock 3 Groove QD Sheaves
Martin 5V Series Hi-Cap wedge stock sheaves are used in power transmission systems, such as belt-driven applications. They feature a solid, one-piece design for increased durability & strength, a 3-groove system to accommodate up to three belts running simultaneously and QD (quick detachable) bushings to allow easy installation & removal without disassembling the entire drive system. These sheaves are made of Class 30 grey iron with maximum tensile strength and speed of 30000 psi & 6500 fpm, respectively. They are suitable for use with 5V cross-section belts and are designed to handle high power loads & torque, unlike standard sheaves.
