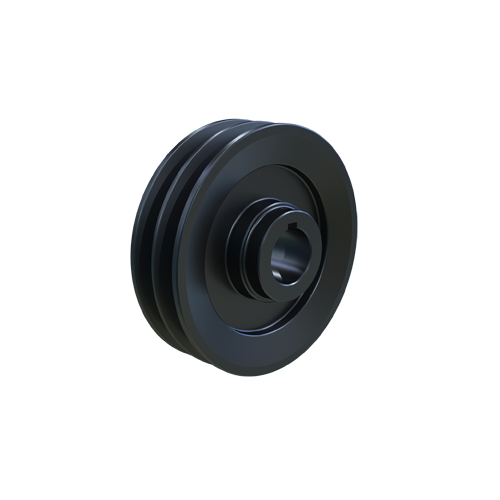

MARTIN SPROCKET 2BK65 1 3/8 Sheave, 1.375 Inch Bore, 1.750 Inch Face Width, 6.250 Inch Outside Dia., Cast Iron
6.250"
1.375"
Get it by Friday, Aug 28
€139.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| 3l Belt Pitch Dia. | 5.9" |
| 4la Or A Belt Pitch Dia. | 5 1/2" |
| Bore Dia. | 1 3/8" |
| Bore Type | Finished |
| Bushing Type | H |
| Face Width | 1 3/4" |
| Hub Dia. | 2 3/4" |
| Hub Projection | 0.469" |
| Length | 2 7/32" |
| Material | Cast Iron |
| No. Of Grooves | 2 |
| Series | 2BK Series |
| Suitable For Use With | A, 4L, 5L Cross Section Belts |
| Type | Bored to Size Type B Web |
Shipping Info:
| Ship weight (kg) | 2.93 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 15.88 |
| Ship width (cm) | 15.88 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Material | Pitch Dia. | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|
 |
2BK100 1 | 9 3/4" | 1" | Cast Iron | - | 1 3/4" | €211.13 | |
 |
2BK100 1 3/16 | 9 3/4" | 1 3/16" | Cast Iron | - | 1 3/4" | €211.13 | |
 |
2BK100 1 3/8 | 9 3/4" | 1 3/8" | Cast Iron | - | 1 3/4" | €211.13 | |
 |
2BK100 1 7/16 | 9 3/4" | 1 7/16" | Cast Iron | - | 1 3/4" | €211.13 | |
 |
2BK100 3/4 | 9 3/4" | 3/4" | Cast Iron | - | 1 3/4" | €211.13 | |
 |
2BK110 1 | 10 3/4" | 1" | Cast Iron | - | 1 3/4" | €224.18 | |
 |
2BK110 1 3/16 | 10 3/4" | 1 3/16" | Cast Iron | - | 1 3/4" | €224.18 |
