DAYTON General Purpose Motors, Totally Enclosed Non Ventilated
Filter
A
B
C
D
E
F
G
H
I
J| Style | Model | Voltage | Phase | Nameplate Rpm | Hp | Frequency | Full Load Amps | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 5GD55 | 115/208-230V AC | 1 | 3460 RPM | 1/3 hp | 60 Hz | 4.3/2.5-2.2A | Face | Capacitor Start | €281.84 | |
| B | 5GD53 | 115/208-230V AC | 1 | 1725 RPM | 1/6 hp | 60 Hz | 4.3/2.1-1.9A | Face | Capacitor Start | €330.32 | |

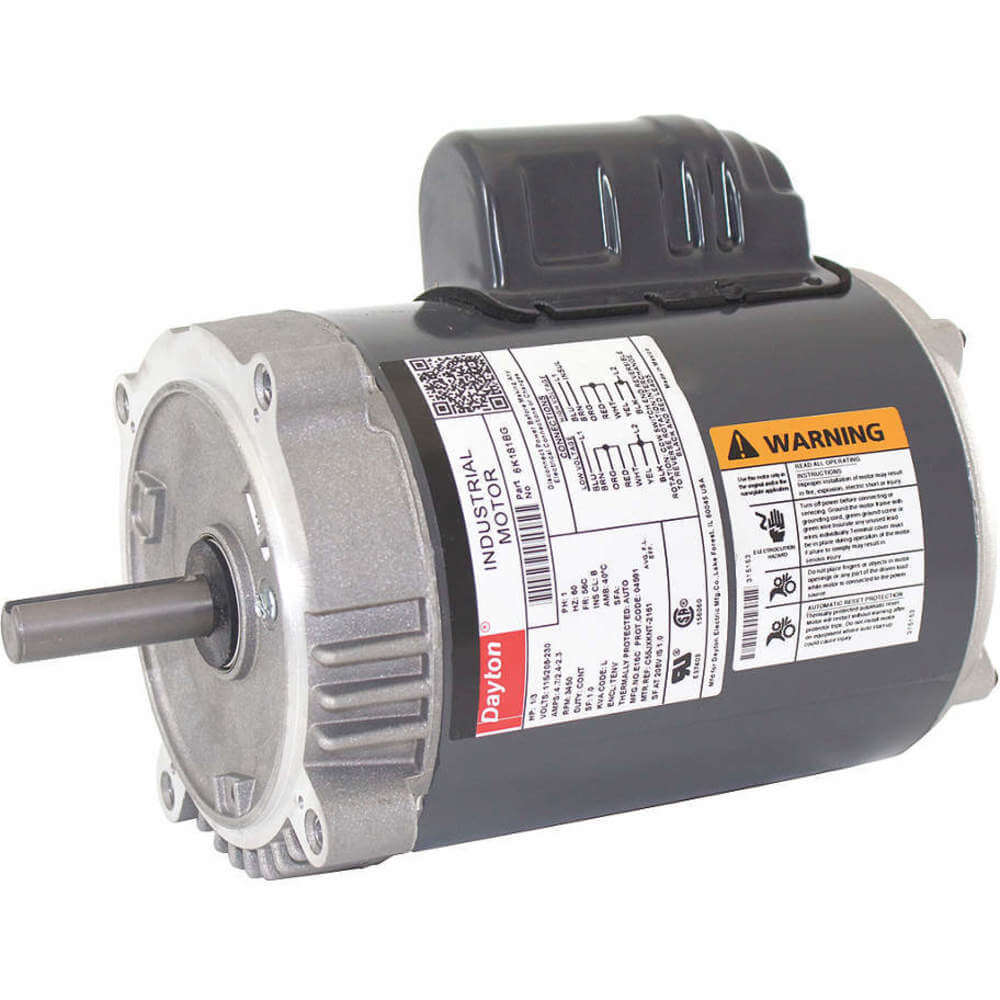

| C | 6K181BG | 115/208-230V AC | 1 | 3450 RPM | 1/3 hp | 60 Hz | 4.7/2.4-2.3A | Face | Capacitor Start | €324.15 | |
| D | 6K481BG | 115/208-230V AC | 1 | 3450 RPM | 1/3 hp | 60 Hz | 4.7/2.4-2.3A | Rigid Base | Capacitor Start | €350.62 | |
| E | 6K482 | 115/208-230V AC | 1 | 3450 RPM | 1/2 hp | 60 Hz | 6.3/3.4-3.3A | Rigid Base | Capacitor Start | €387.28 | |
| F | 3N349 | 208-230/460V AC | 3 | 1725 RPM | 1/4 hp | 60 Hz | 1.1/0.5A | Rigid Base | Three Phase | €340.50 | |
| F | 3N350 | 208-230/460V AC | 3 | 1725 RPM | 1/3 hp | 60 Hz | 1.3/0.7A | Rigid Base | Three Phase | €369.02 | |
| F | 3N694 | 208-230/460V AC | 3 | 1765 RPM | 1/3 hp | 60 Hz | 1.5-1.4/0.7A | Rigid Base | Three Phase | €647.00 | |
| G | 3N695 | 208-230/460V AC | 3 | 1755 RPM | 1/2 hp | 60 Hz | 1.9/1.8-1A | Rigid Base | Three Phase | €490.37 | |
| H | 3N696 | 208-230/460V AC | 3 | 1725 RPM | 3/4 hp | 60 Hz | 2.9-2.8/1.4A | Rigid Base | Three Phase | €522.93 | |
| I | 3N854 | 208-230/460V AC | 3 | 3450 RPM | 1/3 hp | 50/60 Hz | 1.2-1.1/0.6A | Rigid Base | Three Phase | €449.70 | |
| J | 2N863 | 230/460V AC | 3 | 1770 RPM | 1/4 hp | 50/60 Hz | 1.4/0.7A | Rigid Base | Three Phase | €399.45 |
General Purpose Motors, Totally Enclosed Non Ventilated
Dayton general purpose motors are used in water heaters, pumps, ovens and off-road motorised equipment. These motors feature steel frames for structural rigidity & corrosion resistance, and are equipped with ball bearings for low rotational friction. They deliver speeds up to 3460 rpm and allow face / base mounting for easy installation. These TENV motors provide a maximum efficiency of 89.8%, and are available in 1/4, 1/3, 1/2, 1/6 & 3/4 hp variants.
