MARTIN SPROCKET 180B19 Sprocket, 180 Chain, 19 Teeth, 13.670 Inch Pitch Dia., 14.834 Inch O.D., Steel
Get it by Tuesday, Aug 25
€1,083.29 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 1/2" to 5 3/8" |
| Bore Type | Finished Bore |
| Chain Number | 180 |
| Chain Pitch | 2 1/4" |
| Chain Size | #180 |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 180 |
| For Chain Pitch | 2 1/4" |
| Hub Configuration | B |
| Hub Dia. | 7 1/2" |
| Hub Outside Dia. | 7 1/2" |
| Individually Packaged | No |
| Length Through Bore | 3 3/8" |
| Length Thru Bore | 3 3/8" |
| Material | Steel |
| Max. Bore Size | 5 3/8" |
| Min. Bore Size | 1 1/2" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 19 |
| Outside Dia. | 14.834" |
| Pitch | 2 1/4" |
| Pitch Dia. | 13.67" |
| Product Datasheet | martin-sprocket-100a10.pdf |
| Single Strand Tooth Thickness | 1.301" |
| Storage Dimension Height | 3 3/8" |
| Storage Dimension Length | 14.83" |
| Storage Dimension Width | 14.83" |
| Type | Type B Single Strand Welded Reboreable |
Shipping Info:
| Ship weight (kg) | 33.27 |
| Ship height (cm) | 8.59 |
| Ship length (cm) | 37.67 |
| Ship width (cm) | 37.67 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
180B11 | 7.9863" | 11 | 3" | 5 1/2" | 1 1/2" to 3 5/8" | 9.01" | 9.01" | 3" | €763.84 | |
|
180B12 | 8.6933" | 12 | 3" | 6" | 1 1/2" to 4" | 9 3/4" | 9 3/4" | 3" | €772.10 | |
 |

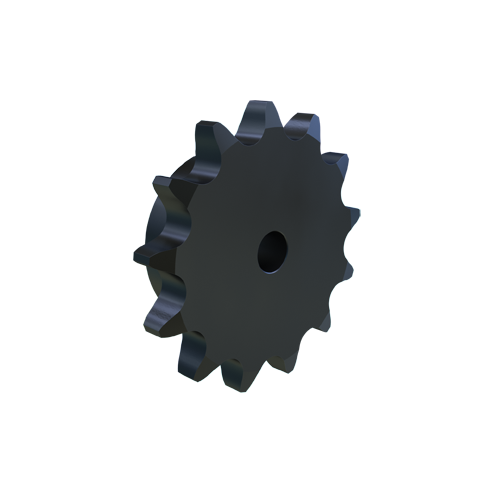

180B13 | 9.4018" | 13 | 3 1/8" | 6 3/4" | 1 1/2" to 4 5/8" | 10 12/25" | 10 12/25" | 3 1/8" | €754.79 | |
 |

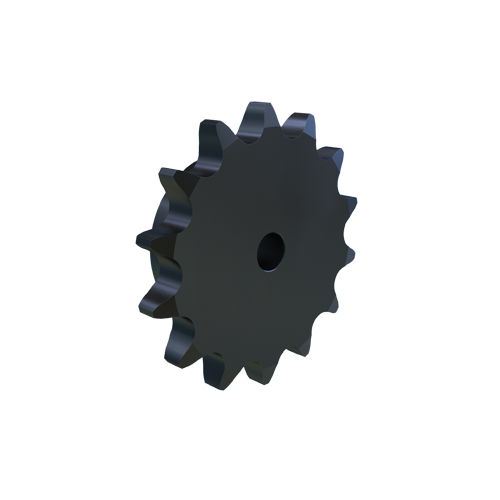

180B14 | 10.1114" | 14 | 3 1/8" | 7" | 1 1/2" to 5 1/4" | 11.21" | 11.21" | 3 1/8" | €800.98 | |
 |

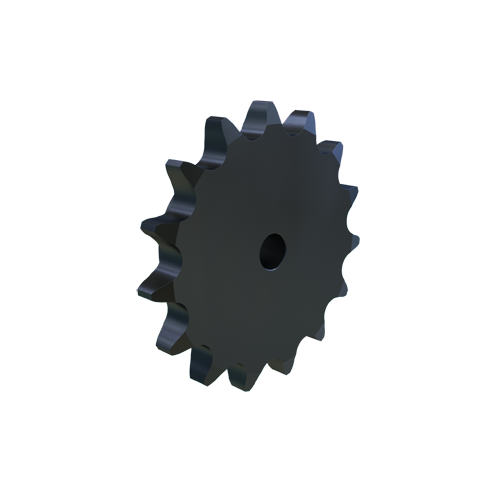

180B15 | 10.8219" | 15 | 3 1/8" | 7" | 1 1/2" to 5 1/4" | 11.94" | 11.94" | 3 1/8" | €885.36 | |
 |

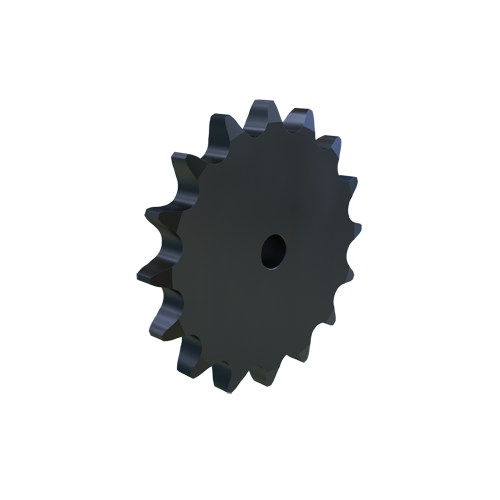

180B16 | 11.5331" | 16 | 3 1/8" | 7" | 1 1/2" to 5 1/4" | 12.66" | 12.66" | 3 1/8" | €950.44 | |
 |

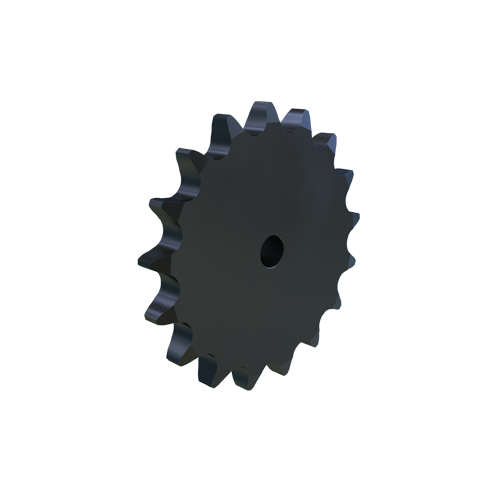

180B17 | 12.2449" | 17 | 3 1/8" | 7" | 1 1/2" to 5 1/4" | 13.39" | 13.39" | 3 1/8" | €1,024.95 |
