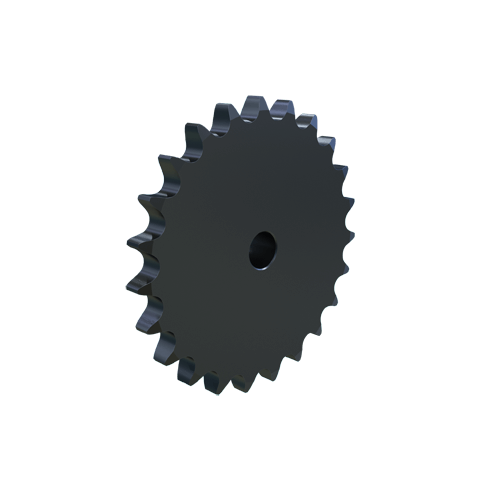

MARTIN SPROCKET 16B23 Sprocket, 16B-1 Chain, 23 Teeth, 186.536 mm Pitch Dia., 202.411 mm O.D., Steel
Item: AL6BGZModel: 16B23
7 In Stock
202.411 mm
Ships within 2 days via
€355.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Length Through Bore | 50 mm |
| Material | Steel |
| No. Of Teeth | 23 |
| Number Of Teeth | 23 |
| Outside Dia. | 202.411 mm |
| Pitch | 25.4 mm |
| Pitch Dia. | 186.536 mm |
Shipping Info:
| Ship weight (kg) | 4.85 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 20.24 |
| Ship width (cm) | 20.24 |
| Country of Origin | US |
Product Variants
| Model | Pitch Dia. | Outside Dia. | Number Of Teeth | Length Through Bore | Pitch | Price | |
|---|---|---|---|---|---|---|---|
| 16B11 | 90.156 mm | 106.031 mm | - | 40 mm | 25.4 mm | €132.36 | |
| 16B12 | 98.138 mm | 114.013 mm | 12 | 40 mm | 25.4 mm | €142.26 | |
| 16B13 | 106.136 mm | 122.011 mm | 13 | 40.005 mm | 25.4 mm | €153.25 | |
| 16B14 | 114.147 mm | 130.022 mm | 14 | 40.005 mm | 25.4 mm | €162.73 | |
| 16B15 | 122.167 mm | 138.042 mm | 15 | 45.009 mm | 25.4 mm | €172.59 | |
| 16B16 | 130.196 mm | 146.071 mm | 16 | 45 mm | 25.4 mm | €194.36 | |
| 16B17 | 138.232 mm | 154.107 mm | 17 | 45 mm | 25.4 mm | €220.59 |
