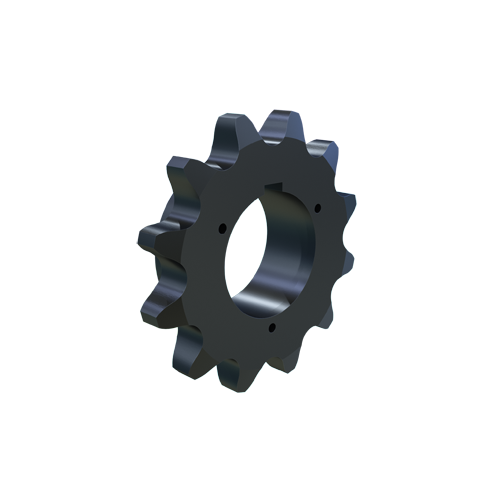

MARTIN SPROCKET 160R12H Sprocket, MST, 160 Chain, 12 Teeth, 7.727 Inch Pitch Dia., 8.664 Inch O.D., Steel
8.664"
Get it by Friday, Aug 28
€728.70 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 1/8" to 3 3/4" |
| Bore Type | Bushed |
| Bushing Part Number | R1 |
| Bushing Size | R1 |
| Bushing Type | MST R1 |
| Chain Number | 160 |
| Chain Pitch | 2" |
| Chain Size | #160 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 160 |
| For Chain Pitch | 2" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Dia. | 5 1/2" |
| Hub Outside Dia. | 5 1/2" |
| Individually Packaged | No |
| Key Way Size | 3/4" |
| Keyway Width | 3/4" |
| Length Through Bore | 2 1/4" |
| Length Thru Bore | 2" |
| Material | Steel |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/8" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 12 |
| Pitch | 2" |
| Pitch Dia. | 7.7274" |
| Single Strand Tooth Thickness | 1.156" |
| Storage Dimension Height | 2 1/4" |
| Storage Dimension Length | 8.664" |
| Storage Dimension Width | 8.664" |
| Type | Type 4 Single Strand Solid Bushed |
Shipping Info:
| Ship weight (kg) | 5.67 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 22 |
| Ship width (cm) | 22 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Chain Size | Storage Dimension Width | Storage Dimension Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
160S35 | 22.3116" | 35 | 5 11/16" | 6 1/2" | 1.875" to 4.188" | #160 | 23.422" | 5.69" | €2,520.53 | |
 |
160S40 | 25.491" | 40 | 5 11/16" | 6 1/2" | 1.875" to 4.188" | #160 | 26.612" | 5.69" | €2,704.38 | |
|
160S45 | 28.6712" | 45 | 5 11/16" | 6 1/2" | 1.875" to 4.188" | #160 | 29.801" | 5.69" | €3,249.81 | |
 |
160U60 | 38.2146" | 60 | 3 3/4" | 8 1/2" | 2 3/8" to 5 1/2" | #160 | 39.362" | 3 3/4" | €4,169.62 | |
 |
160S26H | 16.5925" | 26 | 5 11/16" | 6 1/2" | 1.875" to 4.188" | #160 | 17.671" | 5.69" | €1,593.27 | |
 |
160R23H | 14.6879" | 23 | 4" | 5 1/2" | 1 3/8" to 3 3/8" | #160 | 15.751" | 4" | €1,447.04 | |
 |
160R30H | 19.1335" | 30 | 4" | 5 1/2" | 1 3/8" to 3 3/8" | #160 | 20.229" | 4" | €1,955.66 |
