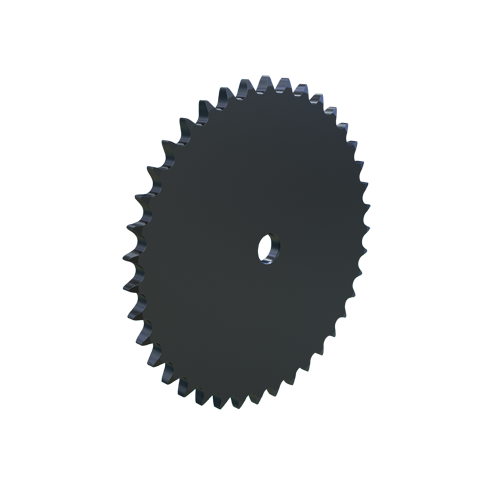

MARTIN SPROCKET 10A39 Sprocket, 10B-1 Chain, 39 Teeth, 197.287 mm Pitch Dia., 120.118 mm O.D., Steel
Item: BA7WMAModel: 10A39
7 In Stock
120.118 mm
Ships within 2 days via
€125.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 18 mm |
| Chain Size | #10B-1 |
| Length Through Bore | 32 mm |
| Material | Steel |
| No. Of Teeth | 39 |
| Outside Dia. | 120.118 mm |
| Pitch | 15.875 mm |
| Pitch Dia. | 197.287 mm |
| Type | Type A Single Strand Solid Stock Bore |
Shipping Info:
| Ship weight (kg) | 1.98 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 12.01 |
| Ship width (cm) | 12.01 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Bore Dia. | Chain Size | Hub Dia. | Material | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10A12 | 61.336 mm | 12 | 8.712 mm | 12 mm | 10B-1 | 43 mm | Steel | 15.875 mm | €81.18 | |
 |
10A13 | 66.335 mm | 13 | 25 mm | 12 mm | #10B-1 | - | Steel | 15.875 mm | €81.18 | |
 |
10A15 | 76.355 mm | 15 | 25 mm | 12 mm | #10B-1 | - | Steel | 15.875 mm | €83.56 | |
 |
10A16 | 81.373 mm | 16 | 8.712 mm | 12 mm | 10B-1 | 63 mm | Steel | 15.875 mm | €84.63 | |
 |
10A17 | 86.395 mm | 17 | 25 mm | 12 mm | #10B-1 | - | Steel | 15.875 mm | €87.30 | |
 |
10A18 | 91.42 mm | 18 | 25 mm | 12 mm | #10B-1 | - | Steel | 15.875 mm | €88.62 | |
 |
10A19 | 96.449 mm | 19 | 25 mm | 16 mm | #10B-1 | - | Steel | 15.875 mm | €90.71 |
