MARTIN SPROCKET Simplex Stock Bore A Type Metric Roller Chain Sprockets, 10B-1 Chain Number

Filter

Style	Model	Pitch Dia.	No. Of Teeth	Length Through Bore	Bore Dia.	Chain Size	Hub Dia.	Material	Pitch	Price

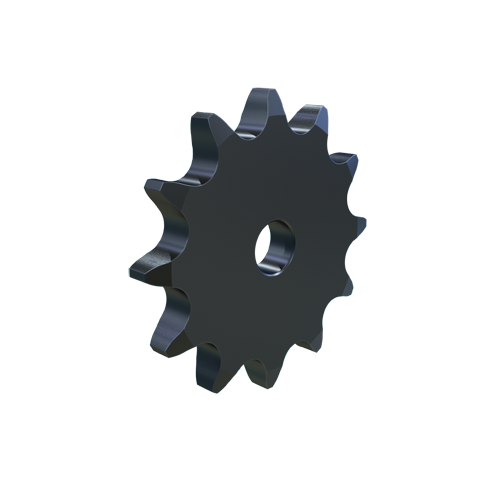

A	10A12	61.336 mm	12	8.712 mm	12 mm	10B-1	43 mm	Steel	15.875 mm	€81.18
B	10A13	66.335 mm	13	25 mm	12 mm	#10B-1	-	Steel	15.875 mm	€81.18
C	10A14	71.342 mm	14	25 mm	12 mm	#10B-1	-	Steel	15.875 mm	€81.18
D	10A15	76.355 mm	15	25 mm	12 mm	#10B-1	-	Steel	15.875 mm	€83.56
E	10A16	81.373 mm	16	8.712 mm	12 mm	10B-1	63 mm	Steel	15.875 mm	€84.63
F	10A17	86.395 mm	17	25 mm	12 mm	#10B-1	-	Steel	15.875 mm	€87.30
G	10A18	91.42 mm	18	25 mm	12 mm	#10B-1	-	Steel	15.875 mm	€88.62
H	10A19	96.449 mm	19	25 mm	16 mm	#10B-1	-	Steel	15.875 mm	€90.71
I	10A20	101.48 mm	20	25 mm	16 mm	#10B-1	-	Steel	15.875 mm	€92.34
J	10A21	106.513 mm	21	25 mm	16 mm	#10B-1	-	Steel	15.875 mm	€89.84
K	10A22	111.548 mm	22	25 mm	16 mm	#10B-1	-	Steel	15.875 mm	€93.62
L	10A23	116.585 mm	23	25 mm	16 mm	#10B-1	-	Steel	15.875 mm	€97.15
M	10A24	121.623 mm	24	25 mm	15 mm	#10B-1	-	Steel	15.875 mm	€97.66
N	10A25	126.662 mm	25	25 mm	15 mm	#10B-1	-	Steel	15.875 mm	€97.07
O	10A26	131.703 mm	26	32 mm	15 mm	#10B-1	-	Steel	15.875 mm	€101.72
P	10A27	136.744 mm	27	32 mm	18 mm	#10B-1	-	Steel	15.875 mm	€105.39
Q	10A28	141.786 mm	28	32 mm	18 mm	#10B-1	-	Steel	15.875 mm	€107.34
R	10A29	146.829 mm	29	32 mm	18 mm	#10B-1	-	Steel	15.875 mm	€111.00
S	10A30	151.873 mm	30	32 mm	18 mm	#10B-1	-	Steel	15.875 mm	€111.99
T	10A31	156.917 mm	31	32 mm	18 mm	#10B-1	-	Steel	15.875 mm	€110.22
U	10A32	161.961 mm	32	32 mm	18 mm	#10B-1	-	Steel	15.875 mm	€111.15
V	10A33	167.007 mm	33	32 mm	18 mm	#10B-1	-	Steel	15.875 mm	€118.01
W	10A34	172.052 mm	34	32 mm	18 mm	#10B-1	-	Steel	15.875 mm	€119.84
X	10A35	177.099 mm	35	32 mm	18 mm	#10B-1	-	Steel	15.875 mm	€121.42
Y	10A36	182.145 mm	36	32 mm	18 mm	#10B-1	-	Steel	15.875 mm	€124.20
Z	10A37	187.192 mm	37	32 mm	18 mm	#10B-1	-	Steel	15.875 mm	€127.59
A1	10A38	192.239 mm	38	32 mm	18 mm	#10B-1	-	Steel	15.875 mm	€122.91
B1	10A39	197.287 mm	39	32 mm	18 mm	#10B-1	-	Steel	15.875 mm	€125.06

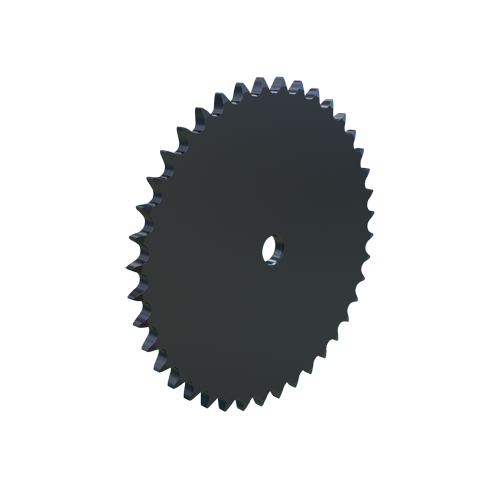

C1	10A40	202.335 mm	40	32 mm	18 mm	#10B-1	-	Steel	15.875 mm	€125.91
D1	10A41	207.383 mm	41	32 mm	18 mm	#10B-1	-	Steel	15.875 mm	€128.28
E1	10A42	212.431 mm	42	32 mm	18 mm	#10B-1	-	Steel	15.875 mm	€130.86
F1	10A43	217.48 mm	43	32 mm	18 mm	#10B-1	-	Steel	15.875 mm	€134.94
G1	10A44	222.528 mm	44	32 mm	18 mm	#10B-1	-	Steel	15.875 mm	€140.13
H1	10A45	227.577 mm	45	32 mm	18 mm	#10B-1	-	Steel	15.875 mm	€141.42
I1	10A46	232.627 mm	46	32 mm	18 mm	#10B-1	-	Steel	15.875 mm	€143.98
J1	10A47	237.676 mm	47	32 mm	18 mm	#10B-1	-	Steel	15.875 mm	€147.21
K1	10A48	242.725 mm	48	32 mm	24 mm	#10B-1	-	Steel	15.875 mm	€149.16
L1	10A49	247.775 mm	49	32 mm	24 mm	#10B-1	-	Steel	15.875 mm	€153.25
M1	10A50	252.825 mm	50	32 mm	24 mm	#10B-1	-	Steel	15.875 mm	€159.47
N1	10A51	257.875 mm	51	32 mm	24 mm	#10B-1	-	Steel	15.875 mm	€165.30
O1	10A52	262.925 mm	52	32 mm	24 mm	#10B-1	-	Steel	15.875 mm	€167.23
P1	10A53	267.975 mm	53	32 mm	24 mm	#10B-1	-	Steel	15.875 mm	€168.52
Q1	10A54	273.025 mm	54	32 mm	24 mm	#10B-1	-	Steel	15.875 mm	€170.46
R1	10A55	278.076 mm	55	32 mm	24 mm	#10B-1	-	Steel	15.875 mm	€182.49
S1	10A56	283.126 mm	56	32 mm	24 mm	#10B-1	-	Steel	15.875 mm	€194.36
T1	10A57	288.177 mm	57	8.712 mm	24 mm	10B-1	95 mm	Steel	15.875 mm	€194.36
U1	10A58	293.227 mm	58	32 mm	24 mm	#10B-1	-	Steel	15.875 mm	€195.62
V1	10A59	298.278 mm	59	32 mm	24 mm	#10B-1	-	Steel	15.875 mm	€195.62
W1	10A60	303.329 mm	60	32 mm	24 mm	#10B-1	-	Steel	15.875 mm	€197.57
X1	10A70	353.841 mm	70	44 mm	24 mm	#10B-1	-	Steel	15.875 mm	€217.14
Y1	10A72	363.944 mm	72	44 mm	24 mm	#10B-1	-	Steel	15.875 mm	€227.26
Z1	10A76	384.15 mm	76	44 mm	24 mm	#10B-1	-	Steel	15.875 mm	€252.94
Z1	10A80	404.357 mm	80	44 mm	24 mm	#10B-1	-	Steel	15.875 mm	€278.00
Z1	10A95	480.139 mm	95	44 mm	24 mm	#10B-1	-	Steel	15.875 mm	€380.22
Z1	10A96	485.191 mm	96	44 mm	24 mm	#10B-1	-	Steel	15.875 mm	€389.62
Z1	10A112	566.029 mm	112	44 mm	24 mm	#10B-1	-	Steel	15.875 mm	€545.30
Z1	10A114	576.134 mm	114	44 mm	24 mm	#10B-1	-	Steel	15.875 mm	€563.22
