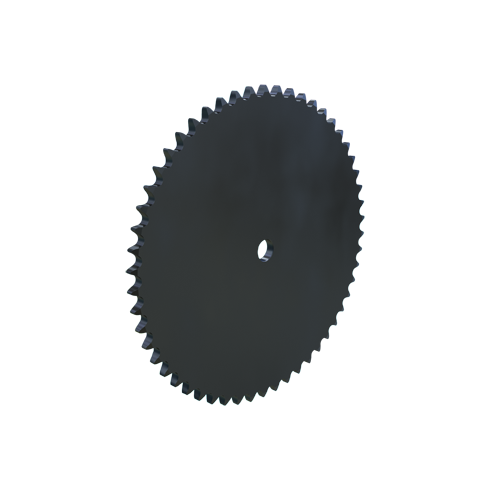

MARTIN SPROCKET 100A54 Sprocket, 100 Chain, 54 Teeth, 21.498 Inch Pitch Dia., 22.212 Inch O.D., Steel
22.212"
Get it by Thursday, Dec 18
€677.89 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 0.656" |
| Material | Steel |
| Min. Bore Size | 1 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 54 |
| Outside Dia. | 22.212" |
| Pitch | 1 1/4" |
| Pitch Dia. | 21.498" |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 0.692" |
| Storage Dimension Length | 22.212" |
| Storage Dimension Width | 22.212" |
Shipping Info:
| Ship weight (kg) | 29.5 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 56.41 |
| Ship width (cm) | 56.41 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | For Chain Pitch | For Chain Number | Bore Type | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
100A7 | 7 | 2.881" | 3.346" | 0.692" | 1 1/4" | 100 | Finished Bore | 1 1/4" | €86.21 | |
 |
100A8 | 8 | 3.2664" | 3.768" | 0.692" | 1 1/4" | 100 | Finished Bore | 1 1/4" | €89.42 | |
 |
100A9 | 9 | 3.6548" | 4.184" | 0.692" | 1 1/4" | 100 | Finished Bore | 1 1/4" | €96.13 | |
 |
100A10 | 10 | 4.0451" | 4.597" | 0.692" | 1 1/4" | 100 | Finished Bore | 1 1/4" | €100.04 | |
 |
100A11 | 11 | 4.4368" | 5.007" | 0.692" | 1 1/4" | 100 | Finished Bore | 1 1/4" | €101.23 | |
 |
100A12 | 12 | 4.8296" | 5.415" | 0.692" | 1 1/4" | 100 | Finished Bore | 1 1/4" | €101.23 | |
 |
100A13 | 13 | 5.2232" | 5.821" | 0.692" | 1 1/4" | 100 | Finished Bore | 1 1/4" | €101.23 |
