MARTIN SPROCKET Stock Bore A Type Roller Chain Sprockets, 100 Chain Number
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1
T1
U1
V1
W1
X1
Y1
Z1
A2
B2| Style | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Length Through Bore | Hub Dia. | For Chain Pitch | For Chain Number | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 100A96 | 1 1/2" | 38.204" | 38.934" | 0.692" | 7" | 1 1/4" | 100 | Finished Bore | €1,774.61 | |
| B | 100A72 | 1 1/2" | 28.657" | 29.38" | 0.692" | 7" | 1 1/4" | 100 | Finished Bore | €1,029.77 | |
| C | 100A70 | 1 1/2" | 27.8615" | 28.583" | 0.692" | 7" | 1 1/4" | 100 | Finished Bore | €918.55 | |
| D | 100A60 | 1 1/2" | 23.884" | 24.601" | 0.692" | 6" | 1 1/4" | 100 | Finished Bore | €802.26 | |
| E | 100A50 | 1 1/2" | 19.9075" | 20.618" | 0.692" | 6" | 1 1/4" | 100 | Finished Bore | €659.43 | |
| F | 100A45 | 1 1/2" | 17 23/25" | 18.626" | 0.692" | 5" | 1 1/4" | 100 | Finished Bore | €512.82 | |
| G | 100A35 | 1 1/4" | 13.945" | 14.639" | 0.692" | 3 5/16" | 1 1/4" | 100 | Finished Bore | €311.71 | |
| H | 100A31 | 1 1/4" | 12.3556" | 13.042" | 0.692" | 3 5/16" | 1 1/4" | 100 | Finished Bore | €233.70 | |
| I | 100A28 | 1 1/4" | 11.164" | 11.844" | 0.692" | 5" | 1 1/4" | 100 | Finished Bore | €220.27 | |
| J | 100A24 | 1 1/4" | 9.577" | 10.245" | 0.692" | 4 1/2" | 1 1/4" | - | Finished Bore | €160.27 | |
| K | 100A23 | 1 1/4" | 9.18" | 9.844" | 0.692" | 4 1/2" | 1 1/4" | 100 | Finished Bore | €150.41 | |
| L | 100A22 | 1 1/4" | 8.7833" | 9.444" | 2" | - | 1 1/4" | 100 | Finished Bore | €165.05 | |
| M | 100A21 | 1 1/4" | 8.387" | 9.043" | 0.692" | 4 1/2" | 1 1/4" | 100 | Finished Bore | €149.91 | |
| N | 100A20 | 1 1/4" | 7.9906" | 8.642" | 0.692" | 4 1/2" | 1 1/4" | 100 | Finished Bore | €136.59 | |
| O | 100A30 | 1 1/4" | 11.959" | 12.643" | 0.692" | 3 5/16" | 1 1/4" | 100 | Finished Bore | €220.71 | |
| P | 100A14 | 1 1/4" | 5.6174" | 6.227" | 0.692" | 4 3/16" | 1 1/4" | 100 | Finished Bore | €103.58 | |
| Q | 100A17 | 1 1/4" | 6.803" | 7.437" | 0.692" | 1 3/4" | 1 1/4" | 100 | Finished Bore | €117.10 | |

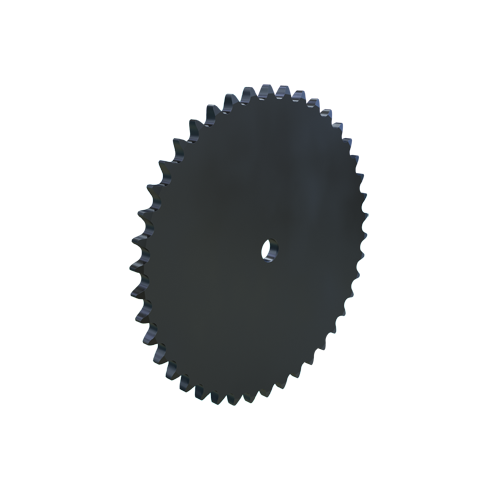

| R | 100A42 | 1 1/4" | 16.7269" | 17.43" | 0.692" | 5" | 1 1/4" | 100 | Finished Bore | €439.63 | |
| S | 100A15 | 1 1/4" | 6.0122" | 6.631" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €107.14 | |
| T | 100A27 | 1 1/4" | 10.767" | 11.444" | 0.692" | 5" | 1 1/4" | 100 | Finished Bore | €220.27 | |
| U | 100A13 | 1 1/4" | 5.2232" | 5.821" | 0.692" | 3 7/8" | 1 1/4" | 100 | Finished Bore | €101.23 | |
| V | 100A12 | 1 1/4" | 4.83" | 5.415" | 0.692" | 4" | 1 1/4" | 100 | Finished Bore | €101.23 | |
| W | 100A11 | 1 1/4" | 4.4368" | 5.007" | 0.692" | 3 9/16" | 1 1/4" | 100 | Finished Bore | €101.23 | |

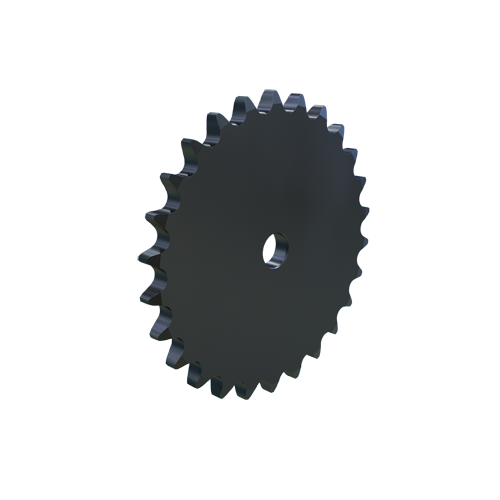

| X | 100A26 | 1 1/4" | 10.37" | 11.045" | 0.692" | 5" | 1 1/4" | 100 | Finished Bore | €173.25 | |
| Y | 100A8 | 1" | 3.2664" | 3.768" | 0.692" | 2 7/16" | 1 1/4" | 100 | Finished Bore | €89.42 | |
| Z | 100A7 | 1" to 1.316" | 2.881" | 3.346" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €86.21 | |
| A1 | 100A9 | 1" to 2.154" | 3.6548" | 4.184" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €96.13 | |
| B1 | 100A10 | 1" to 2.567" | 4.0451" | 4.597" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €100.04 | |
| C1 | 100A43 | 1.5" to 15.799" | 17.1244" | 17.829" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €457.88 | |
| D1 | 100A44 | 1.5" to 16.197" | 17.5219" | 18.227" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €494.59 | |
| E1 | 100A46 | 1.5" to 16.994" | 18.3171" | 19.024" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €531.07 | |
| F1 | 100A47 | 1.5" to 17.393" | 18.7146" | 19.423" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €549.31 | |
| G1 | 100A48 | 1.5" to 17.791" | 19.1122" | 19.821" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €568.23 | |
| H1 | 100A49 | 1.5" to 18.19" | 19.5098" | 20.22" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €614.01 | |
| G1 | 100A51 | 1.5" to 18.987" | 20.3051" | 21.017" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €668.16 | |

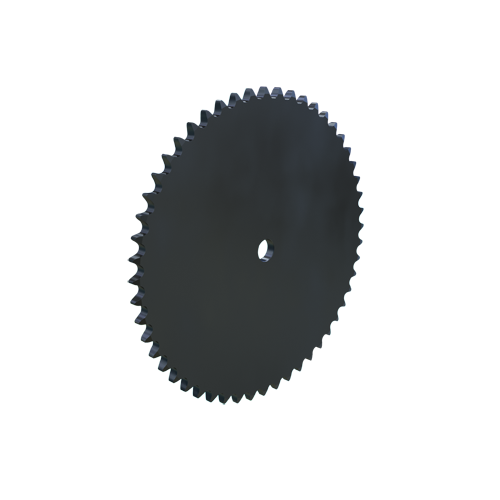

| I1 | 100A52 | 1.5" to 19.385" | 20.7027" | 21.415" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €668.74 | |
| J1 | 100A53 | 1.5" to 19.783" | 21.1004" | 21.813" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €677.89 | |
| K1 | 100A55 | 1.5" to 20.58" | 21.8957" | 22.61" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €696.14 | |
| L1 | 100A54 | 1.5" to 20.182" | 21.498" | 22.212" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €677.89 | |
| G1 | 100A56 | 1.5" to 20.978" | 22.2934" | 23.008" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €714.39 | |
| M1 | 100A57 | 1.5" to 21.377" | 22.6911" | 23.407" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €732.64 | |
| N1 | 100A58 | 1.5" to 21.775" | 23.0888" | 23.805" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €750.89 | |
| O1 | 100A76 | 1.5" to 28.942" | 30.2481" | 30.972" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €1,067.85 | |
| O1 | 100A80 | 1.5" to 30.535" | 31.8392" | 32.565" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €1,206.67 | |
| P1 | 100A84 | 1.5" to 32.127" | 33.4303" | 34.157" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €1,253.38 | |
| O1 | 100A90 | 1.5" to 34.515" | 35.8171" | 36.545" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €1,594.99 | |
| B1 | 100A16 | 1.25" to 5.004" | 6.4073" | 7.034" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €114.84 | |
| Q1 | 100A16SS | 1.25" to 5.005" | 6.408" | 7.035" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €839.95 | |
| R1 | 100A18SS | 1.25" to 5.81" | 7.199" | 7.839" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €987.57 | |

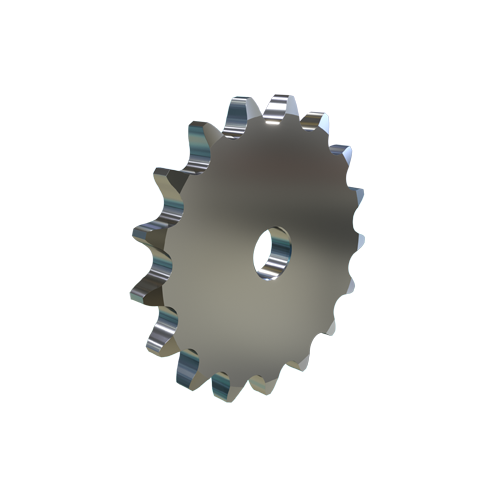

| S1 | 100A17SS | 1.25" to 5.407" | 6.803" | 7.437" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €929.08 | |
| B1 | 100A18 | 1.25" to 5.809" | 7.1985" | 7.839" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €124.31 | |
| T1 | 100A19SS | 1.25" to 6.211" | 7.595" | 8.241" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €1,055.74 | |
| B1 | 100A19 | 1.25" to 6.211" | 7.5944" | 8.241" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €127.17 | |

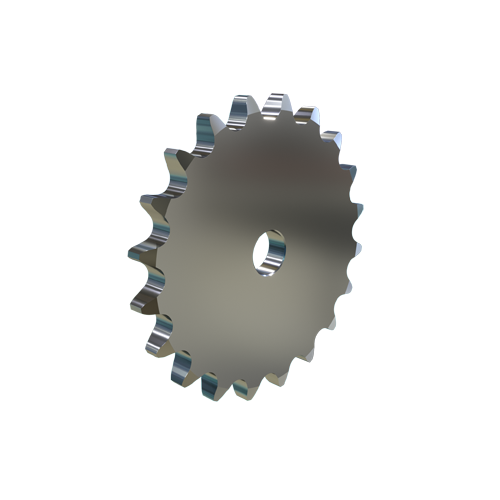

| U1 | 100A20SS | 1.25" to 6.613" | 7.99" | 8.642" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €1,143.91 | |
| V1 | 100A21SS | 1.25" to 7.014" | 8.388" | 9.043" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €1,159.61 | |
| W1 | 100A25 | 1.25" to 8.615" | 9.9734" | 10.645" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €167.22 | |
| X1 | 100A29 | 1.25" to 10.214" | 11.5613" | 12.244" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €220.71 | |
| Y1 | 100A32 | 1.25" to 11.411" | 12.7529" | 13.441" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €250.94 | |
| Z1 | 100A33 | 1.25" to 11.811" | 13.1501" | 13.841" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €284.50 | |
| A2 | 100A34 | 1.25" to 12.21" | 13.5474" | 14 6/25" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €293.47 | |
| B2 | 100A36 | 1.25" to 13.008" | 14.3421" | 15.038" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €334.65 |
