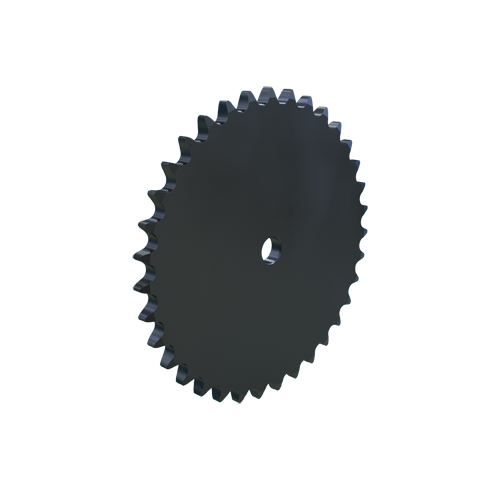

MARTIN SPROCKET 100A35 Roller Chain Sprocket, 100 Chain, Stock Bore, 35 Teeth, 13.945 Inch Pitch Dia., Steel
Get it by Monday, Jul 6
€311.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 1/4" |
| Bore Type | Finished Bore |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Chain Size | #100 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 1/4" |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | A |
| Hub Dia. | 3 5/16" |
| Individually Packaged | No |
| Length Through Bore | 0.656" , 0.692" |
| Material | Steel |
| Min. Bore Size | 1 1/4" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 35 |
| Outside Dia. | 14.639" |
| Pitch | 1 1/4" |
| Pitch Dia. | 13.9448" , 13.945" |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 0.692" |
| Storage Dimension Length | 14.639" |
| Storage Dimension Width | 14.639" |
| Type | Stock Bore Type A |
Shipping Info:
| Ship weight (kg) | 12.22 |
| Ship height (cm) | 1.75 |
| Ship length (cm) | 37.19 |
| Ship width (cm) | 37.19 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Length Through Bore | Hub Dia. | For Chain Pitch | For Chain Number | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
100A7 | 1" to 1.316" | 2.881" | 3.346" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €86.21 | |
 |
100A8 | 1" | 3.2664" | 3.768" | 0.692" | 2 7/16" | 1 1/4" | 100 | Finished Bore | €89.42 | |
 |
100A9 | 1" to 2.154" | 3.6548" | 4.184" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €96.13 | |
 |
100A10 | 1" to 2.567" | 4.0451" | 4.597" | 0.692" | - | 1 1/4" | 100 | Finished Bore | €100.04 | |
 |
100A11 | 1 1/4" | 4.4368" | 5.007" | 0.692" | 3 9/16" | 1 1/4" | 100 | Finished Bore | €101.23 | |
 |
100A12 | 1 1/4" | 4.83" | 5.415" | 0.692" | 4" | 1 1/4" | 100 | Finished Bore | €101.23 | |
 |
100A13 | 1 1/4" | 5.2232" | 5.821" | 0.692" | 3 7/8" | 1 1/4" | 100 | Finished Bore | €101.23 |
