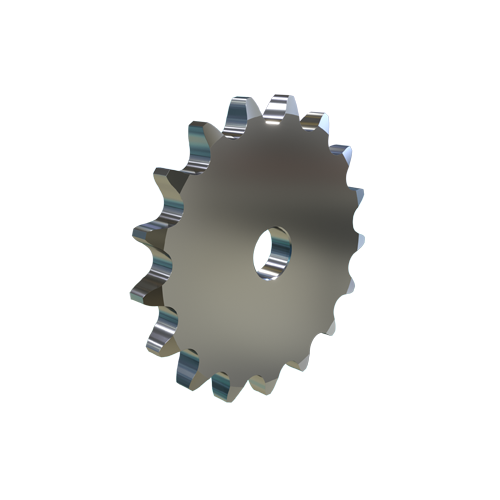

MARTIN SPROCKET 100A17SS Roller Chain Sprocket, 100 Chain, 17 Teeth, 6.803 Inch Pitch Dia., 7.437 Inch O.D., SS
Item: BA4XETModel: 100A17SS
7 In Stock
Ships within 2 days via
€929.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1.25" to 5.407" |
| Bore Type | Finished Bore |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Chain Size | #100 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 1/4" |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Grade | Grade 303, Grade304 |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 0.685" , 0.692" |
| Material | Stainless Steel |
| Min. Bore Size | 1 1/4" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 17 |
| Outside Dia. | 7.437" |
| Pitch | 1 1/4" |
| Pitch Dia. | 6.803" |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 0.692" |
| Storage Dimension Length | 7.437" |
| Storage Dimension Width | 7.437" |
| Type | Type A Single Strand Solid Reboreable |
Shipping Info:
| Ship weight (kg) | 2.73 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 18.9 |
| Ship width (cm) | 18.9 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Pitch Dia. | No. Of Teeth | Length Through Bore | Bore Dia. | Storage Dimension Length | Storage Dimension Width | Finished Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
100A7 | Steel | 2.881" | 7 | 0.692" | 1" to 1.316" | 3.345" | 3.345" | 1" | €86.21 | |
 |
100A8 | Steel | 3.2664" | 8 | 0.692" | 1" | 3.768" | 3.768" | 1" | €89.42 | |
 |
100A9 | Steel | 3.6548" | 9 | 0.692" | 1" to 2.154" | 4.185" | 4.185" | 1" | €96.13 | |
 |
100A10 | Steel | 4.0451" | 10 | 0.692" | 1" to 2.567" | 4.598" | 4.598" | 1" | €100.04 | |
 |
100A11 | Steel | 4.4368" | 11 | 0.692" | 1 1/4" | 5.008" | 5.008" | 1 1/4" | €101.23 | |
 |
100A12 | Steel | 4.83" | 12 | 0.692" | 1 1/4" | 5.415" | 5.415" | 1 1/4" | €101.23 | |
 |
100A13 | Steel | 5.2232" | 13 | 0.692" | 1 1/4" | 5.821" | 5.821" | 1 1/4" | €101.23 |
