MARTIN SPROCKET 06BTB45 Roller Chain Sprocket, 45 Teeth, 136.550 mm Pitch Dia., 142.100 mm O.D., Steel
Item: AL4ZZFModel: 06BTB45
7 In Stock
142.100 mm
Ships within 2 days via
€192.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 41.28 mm |
| Bushing Type | 1610 Taper |
| Chain Size | #06B-1 |
| Hub Dia. | 83 mm |
| Length Through Bore | 25.4 mm |
| Material | Steel |
| No. Of Teeth | 45 |
| Outside Dia. | 142.1 mm |
| Pitch | 9.53 mm |
| Pitch Dia. | 136.55 mm |
| Type | Type B Single Strand Solid Stock Bore |
Shipping Info:
| Ship weight (kg) | 0.94 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 14.2 |
| Ship width (cm) | 14.2 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bushing Type | Bore Dia. | Material | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
06BTB18H | 54.85 mm | 18 | 22.23 mm | 48 mm | 1008 Taper | 25.4 mm | Steel | 9.53 mm | €122.83 | |
 |

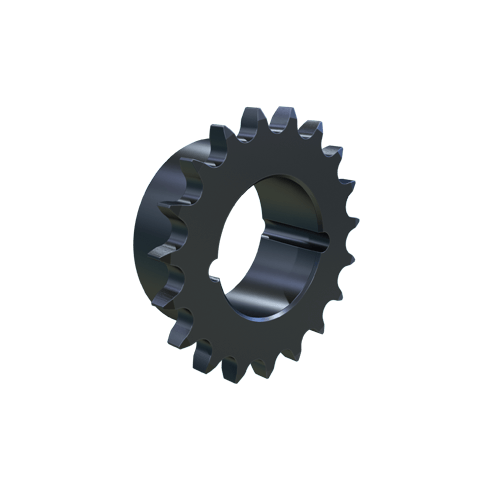

06BTB19H | 57.87 mm | 19 | 22.23 mm | 46 mm | 1008 Taper | 25.4 mm | Steel | 9.53 mm | €125.55 | |
 |

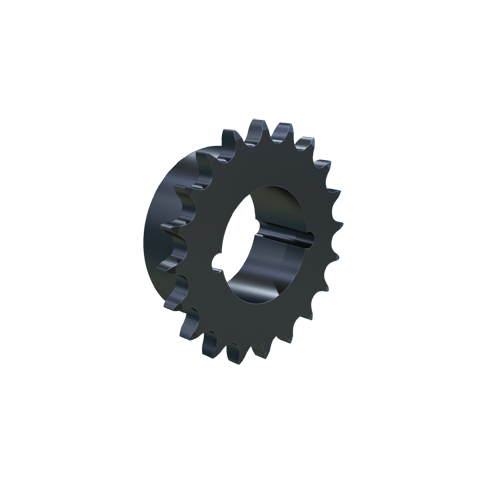

06BTB20H | 60.89 mm | 20 | 22.23 mm | 49 mm | 1008 Taper | 25.4 mm | Steel | 9.53 mm | €123.33 | |
 |

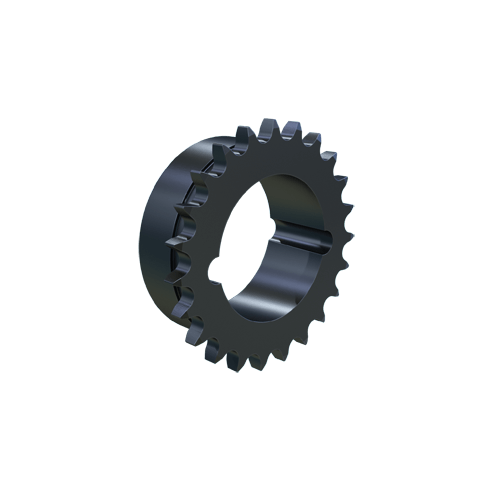

06BTB23H | 69.95 mm | 23 | 25.4 mm | 62 mm | 1210 Taper | 31.75 mm | Steel | 9.53 mm | €133.67 | |
 |

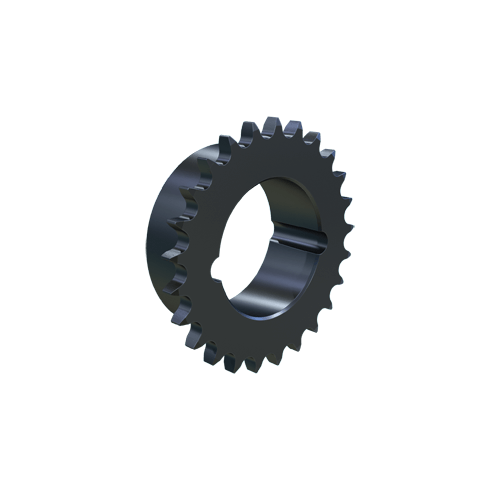

06BTB25H | 76 mm | 25 | 25.4 mm | 62 mm | 1210 Taper | 31.75 mm | Steel | 9.53 mm | €139.03 | |
 |
06BTB26H | 79.02 mm | 26 | 25.4 mm | 73 mm | 1610 Taper | 41.28 mm | Steel | 9.53 mm | €142.26 | |
|
06BTB28H | 85.07 mm | 28 | 25.4 mm | 74 mm | 1610 Taper Lock | - | Steel | 9.53 mm | €145.50 |
