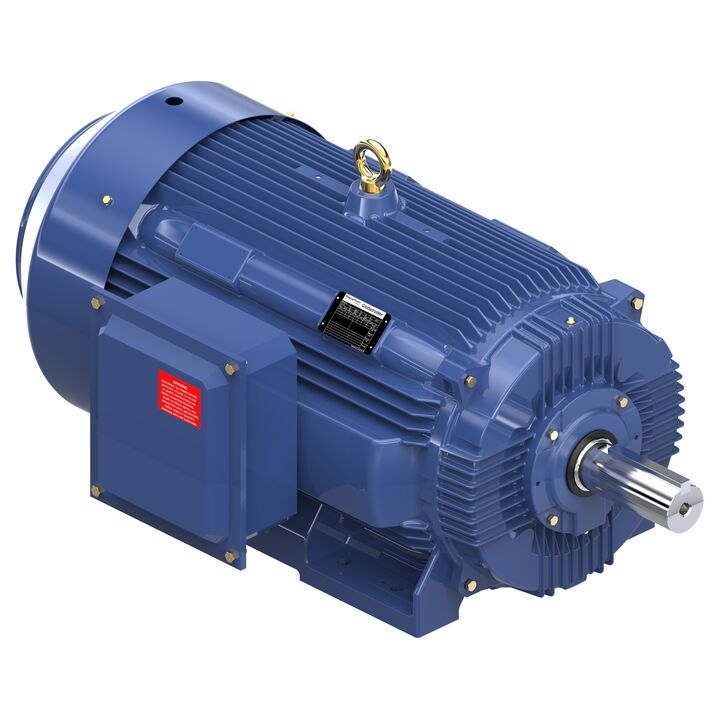

MARATHON MOTORS 449TTFCD6027 GT1073 / 449TTFCD6027BA General Purpose Motor, 300/250 HP, 3 Phase, 60/50 Hz, 460 and 380V, 1800 and 1500 RPM
Item: CH6JWWModel: 449TTFCD6027Cross Ref: 53UF37 / GT1073 / 449TTFCD6027BA
In Stock
Get it by Tuesday, Feb 24
5.00% off
€35,040.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Ambient Temperature | 40°C |
| Amps | 331/332A |
| Assembly/box Mounting | F1, F2 |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Design Code | B |
| Drive End Bearing Size | 6319 |
| Drive End Bearing Type | Ball |
| Duty | Continuous Duty |
| Duty Cycle | Continuous |
| Efficiency | 50.5% |
| Efficiency | 96.2%, 95.6% |
| Efficiency Group | Premium |
| Electrical Type | Squirrel Cage Inverter Rated |
| Enclosure Type | Tefc |
| Frame | 447/9T |
| Frame Material | Cast Iron |
| Frame Size | 449T |
| Frequency | 50/60 Hz |
| Full Load Amps | 341A |
| Full Load Amps @ 50hz | 341A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Hazardous Location | Division 2 T2B |
| Hp | 300 hp, 250 hp |
| Hp @ 50hz | 300 hp |
| Hz | 50/60 Hz |
| Ins. Class | Class H |
| Insulation Class | Class F |
| Inverter Load | 1 |
| Inverter Rated | Yes |
| Ip Rating | IP55 |
| Kva Code | G |
| Length Less Shaft | 43 3/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1785 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 50.5% |
| Opp Drive End Bearing | Ball |
| Opp Drive End Bearing Size | 6317 |
| Output Kw | 224/187 kW |
| Overall Length | 51 7/8" |
| Phase | 3 |
| Power Factor | 88.5 |
| Resistance | 0.013 ohms |
| Rotation | Reversible |
| Rpm | 1790/1488 RPM |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 3 3/8" |
| Shaft Length | 8 1/2" |
| Shaft Type | T |
| Starting Method | Part Wdg Start, Inverter |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 460/380V |
Shipping Info:
| Ship weight (kg) | 1206 |
| Ship height (cm) | 81.28 |
| Ship length (cm) | 142.24 |
| Ship width (cm) | 116.84 |
| Country of Origin | MX |
