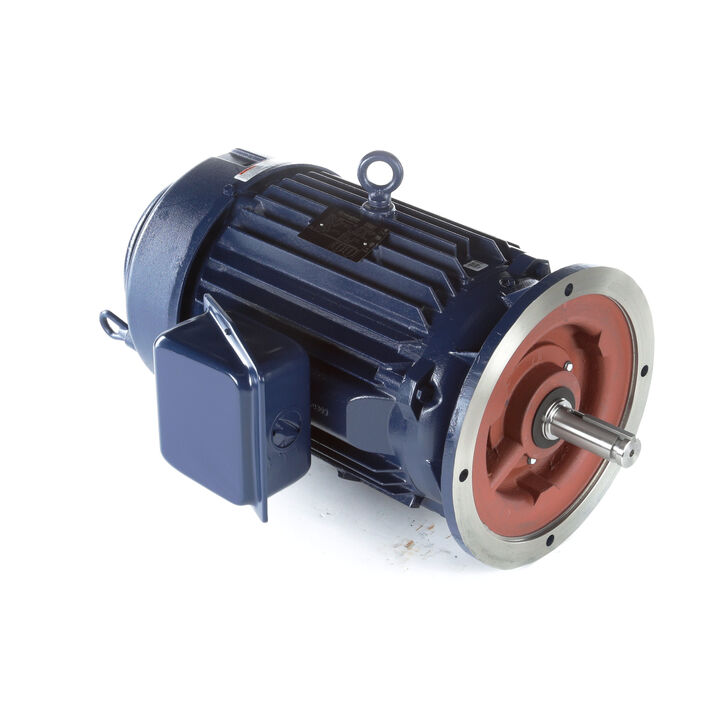

MARATHON MOTORS 215TTFCD6546 U870C / 215TTFCD6546AB Cooling Tower Motor, F1 Conduit Box Position, 10 HP, 1,765 Nameplate RPM, 215T Frame
Get it by Friday, Aug 28
€2,797.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cooling Tower Motor |
| Cc No. | CC003A |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Finish | Epoxy |
| Frame | 215T |
| Frequency | 60/50 Hz |
| Full Load Amps | 26.6/13.3A |
| Hp | 10 hp |
| Ins. Class | Class F , F |
| Length Less Shaft | 19 1/8" |
| Mfr. Part No. | 215TTFCD6546 |
| Motor Application | Cooling Tower |
| Motor Bearings | Ball |
| Motor Design | Three-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled , Totally Enclosed Fan-Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counterclockwise , CW/CCW |
| Motor Thermal Protection | None |
| Nameplate Speed | 1765 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 91.7% |
| Overall Length | 22 5/8" |
| Phase | 3 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3 1/2" |
| Speed | 1701-1800 RPM |
| Usable @ 208 V | Not Usable at 208V, No |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 99.9 |
| Ship height (cm) | 45.72 |
| Ship length (cm) | 66.04 |
| Ship width (cm) | 50.8 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Frequency | Full Load Amps | Frame | Shaft Dia. | Shaft Length | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
256TTTCD16544 | 190/230/380/460V | 20 hp, 20 hp, 15 hp | 60 Hz | 48/24.1A | 256TV | 1.625" | 4" | 22 3/8" | €6,640.32 | |
 |
284TTTCD16540 | 190/230/380/460V | 25 hp, 20 hp | 60 Hz | 62/31A | 284TV | 1.875" | 4 5/8" | 23 7/16" | €5,487.08 | |
 |
364TTTCD16534 | 190/230/380/460V | 60 hp, 50 hp | 60 Hz | 138/69A | 364TV | 2 3/8" | 5 7/8" | 29 5/8" | €14,259.67 | |
 |
254TTTCD16545 | 190/230/380/460V | 15 hp, 15 hp, 10 hp | 60 Hz | 37.5/18.8A | 254TV | 1.625" | 4" | 20 5/8" | €3,762.06 | |
 |
184TTFCD6555 | 230/460V AC | 5 hp | 60/50 Hz | 12.4/6.2A | 184T | 1 1/8" | 2 7/8" | 17 7/8" | €1,616.62 |
